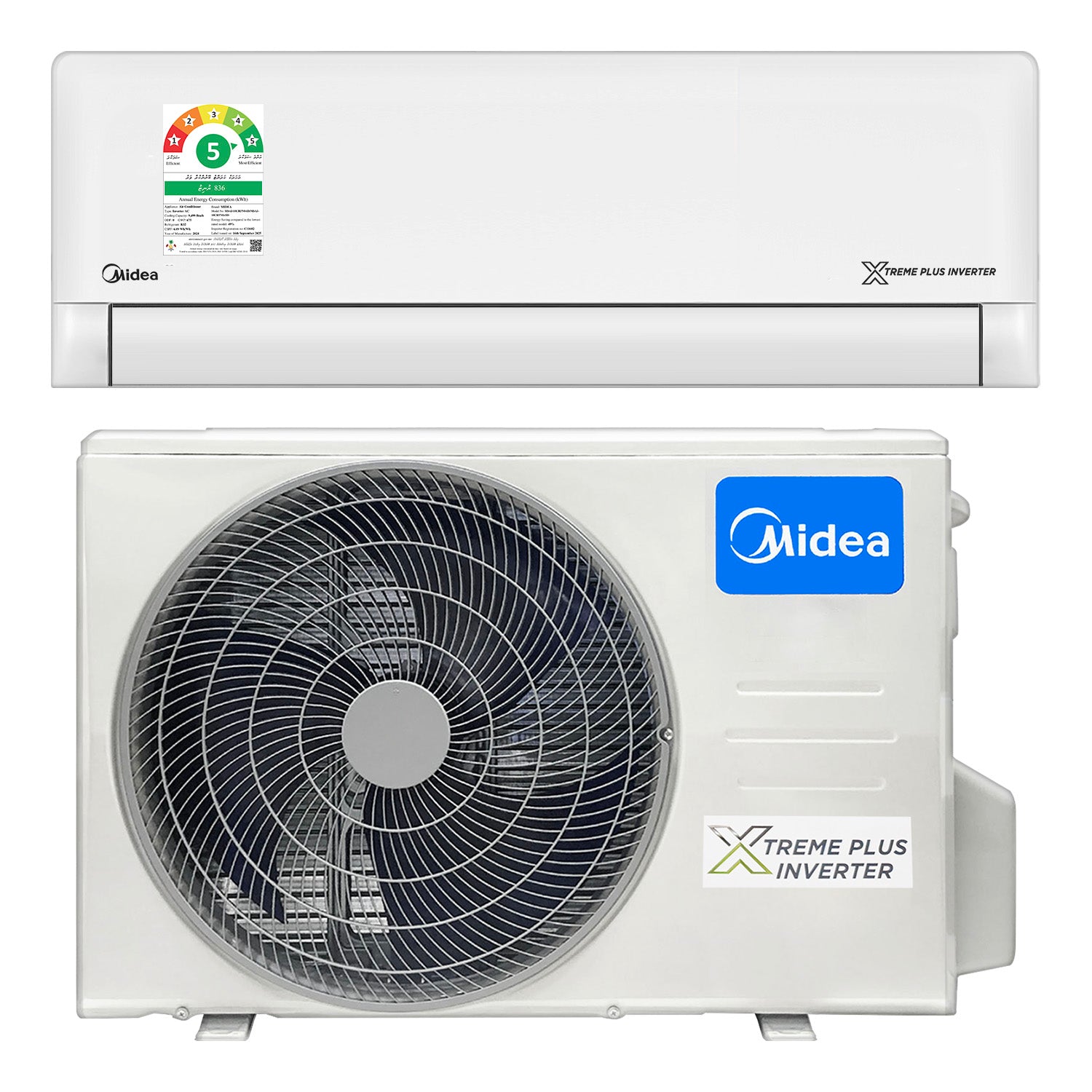

18000 BTU AC (Inverter-Xtreme Plus)

INVERTER-XTREME PLUS Model no: MSAI-19CRFN8 Brand: MIDEA Size: 18000BTU Basic installation does NOT INCLUDE: AC removal, Casing works, Extending pipes  and any kind of carpentry or electrical works. All above services can be provided at additional charges . To avoid any inconvenience, Asters can conduct a survey with a detailed quote prior to the installation. Specification Midea – Air Conditioner Xtreme Plus Series Brand : Midea Model: MSAI-19CRFN8 Capacity: 18000BTU Type: Cooling Only Control type: Remote & App Control (Wi-Fi Built-in) Power Supply (V, Ph, Hz): 220-240 V, 1-Phase, 50 Hz Cooling: Cooling Capacity (Btu/h): 18000 Input (W): 1691W Rated Current (A): 7.69A EER (W/W): 3.12 Rated Power Input (W): 3000W Rated Current (A): 13.5A Compressor: Type: Rotary Capacity (W): 2690/4350 Input (W): 434/1127 Rated Current (RLA) (A): 3.18/6.9 Warranty: 1 Year Warranty plus 5 Years Compressor Warranty Indoor Unit: Indoor Fan Motor: Speed (High/Middle/Low): 1050/900/828 r/min Indoor Coil: Number of rows: 2 Tube pitch (a) x row pitch (b): 21 x 13.37mm Fin spacing: 1.3mm Tube outside dia. and type: Ø7mm Coil (length x height x width): 770 x 210 x 26.74mm + 620 x 105 x 26.74mm Number of circuits: 4 Indoor air flow (High/Middle/Low): 895/740/650 m3/h Indoor noise level (High/Middle/Low): 44/37.5/34 dB (A) Outdoor Unit: Outdoor Fan Motor: Speed: 850/600 r/min Outdoor Coil: Number of rows: 1.6 Tube pitch (a) x row pitch (b): 19.5 x 11.6mm Fin spacing: 1.2mm Fin type (code): Unhydrophilic aluminium Tube outside dia. and type: Ø5mm, Inner groove tube Coil (length x height x width): 755 x 507 x 11.6mm + 462 x 507 x 11.6mm Number of circuits: 4 Outdoor air flow: 2100 m3/h Outdoor noise level: 56 dB (A) Additional Specs: Refrigerant Type: R32/0.72kg Design Pressure: 4.3/1.7 MPa Refrigerant Piping: Liquid Side / Gas Side: 6.35mm (1/4in) / 12.7mm (1/2in) Max. Refrigerant Pipe Length: 30m Max. Difference in Level: 20m Connection Wiring: 1.5x4// Plug Type: 1.5x3//no-plug Thermostat Type : Remote Control Room Temperature: Indoor (Cooling): 16 ~ 32°C Outdoor (Cooling): 0 ~ 50°C Application Area (Cooling Standard): 24 ~ 35m 2 Dimension & Weight: W eight x D epth x H eight Indoor Unit: Product Dimension: 986 x 216 x 305mm (38.8” x 8.5” x 12”) Packing Dimension: 1065 x 300 x 385mm (41.9” x 11.8” x 15.2”) Net Weight: 10.9kg Gross Weight: 14.2kg Outdoor Unit: Product Dimension: 765 x 303 x 555mm (30.1” x 11.9” x 21.9”) Packing Dimension: 887 x 337 x 610mm (34.9” x 13.3” x 24”) Net Weight: 25.1kg Gross Weight: 27.4kg Packing Contents: 18k BTU Indoor Unit – x1 Electric Wire – x1 Remote Control – x1 AA Battery – x2 Remote Holder (Wall-Mount) with 2 Screws – x1 Screws – x5 Wall Plugs – x5 Small Filter – x2 Remote Controller User Manual – x1 Smart Kit User Manual – x1 Safety Manual – x1 Product User Manual – x1 18k BTU Outdoor Unit – x1 1/4" Insulated Copper Tube – x1 1/2” Insulated Copper Tube – x1 Sealing Clay – x1 Wall Sleeve – x1 Wall Hole Cover – x1 Wrapping Roll – x1
