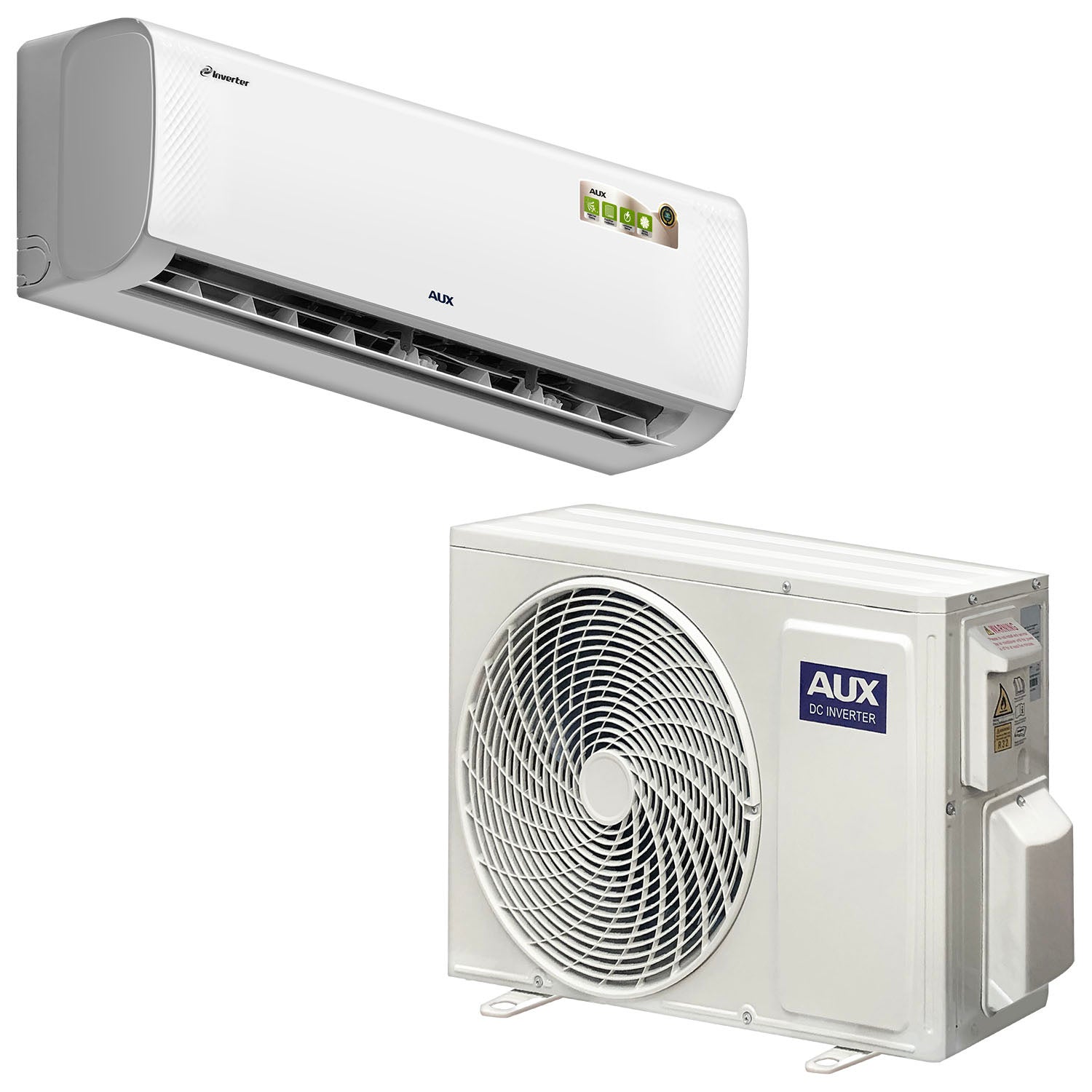

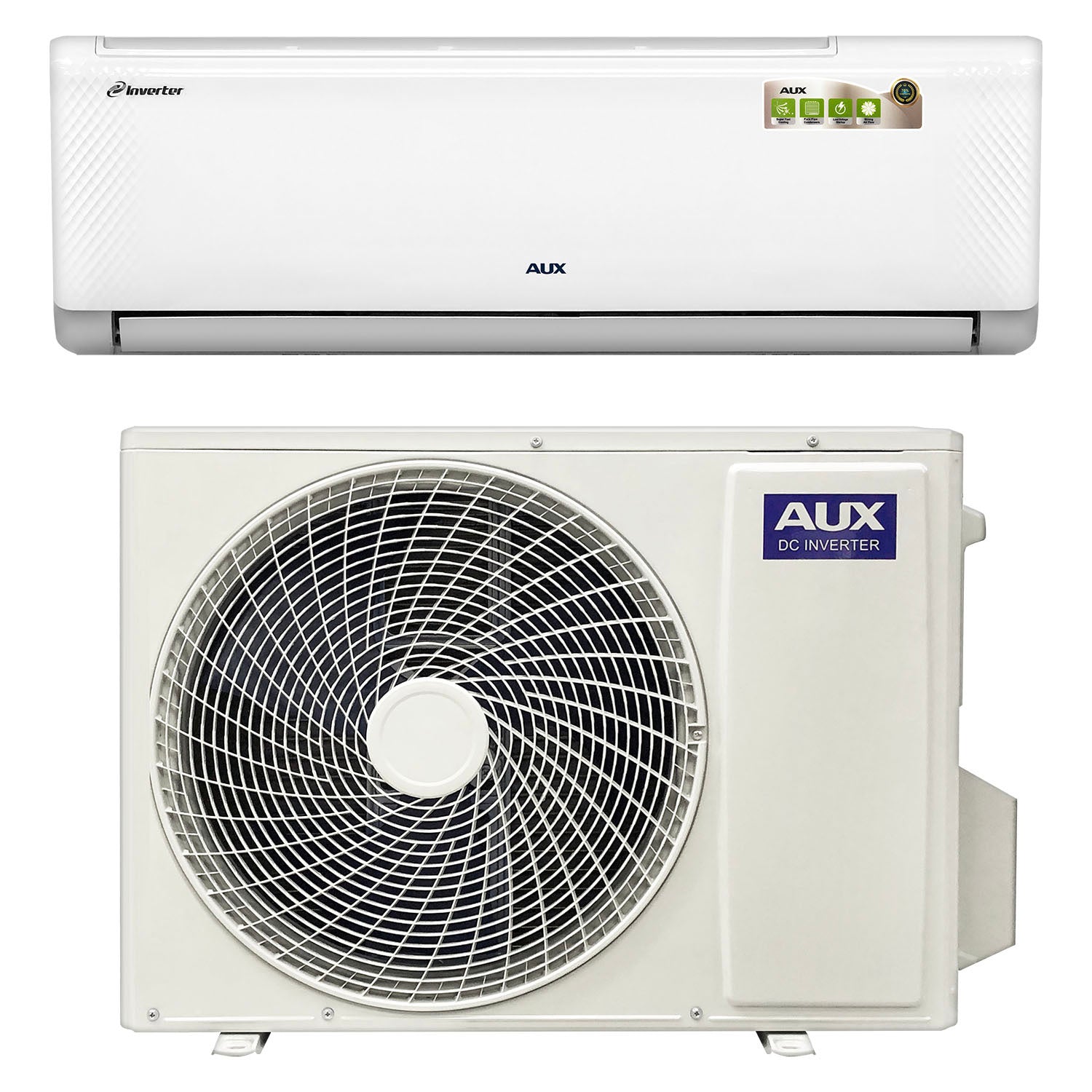

AUX 9000BTU SPLIP AC INVERTER

Aux – Air Conditioner (9000BTU)

Inverter – Wi-Fi Ready

Brand: Aux

Model: MASDC09QGR1-Q-Smart

Capacity: 9000BTU

Color: White

Cooling:

• Rated Capacity: 2640W (600 – 3200W)
• Rated Power Consumption: 820W (400 – 1400W)
• Rated Running Current: 3.9A (1.7 – 6.1A)

Max. Input Power: 1600W

Max. Input Current: 8A

EER Cooling: 3.22 W/W

EU Energy Rating: A+++

Power Supply Source: 220-240V – 1PH – 50Hz

Refrigerant: R32

Refrigerant charged: 400g

Max. Discharge Pressure: 4.3 Mpa

Max. Suction Pressure: 2.5 Mpa

Air Flow Volume: 540 m3/h

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

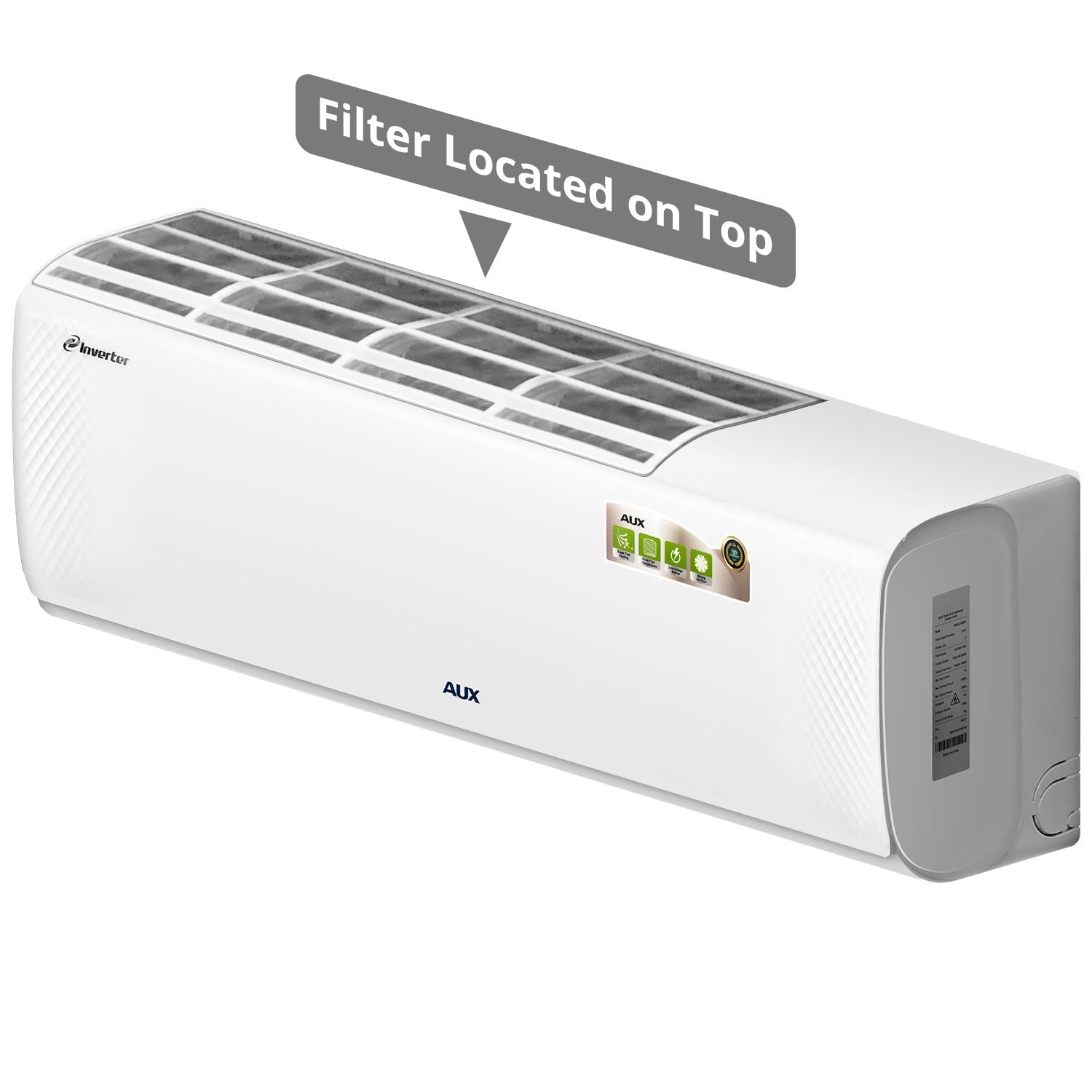

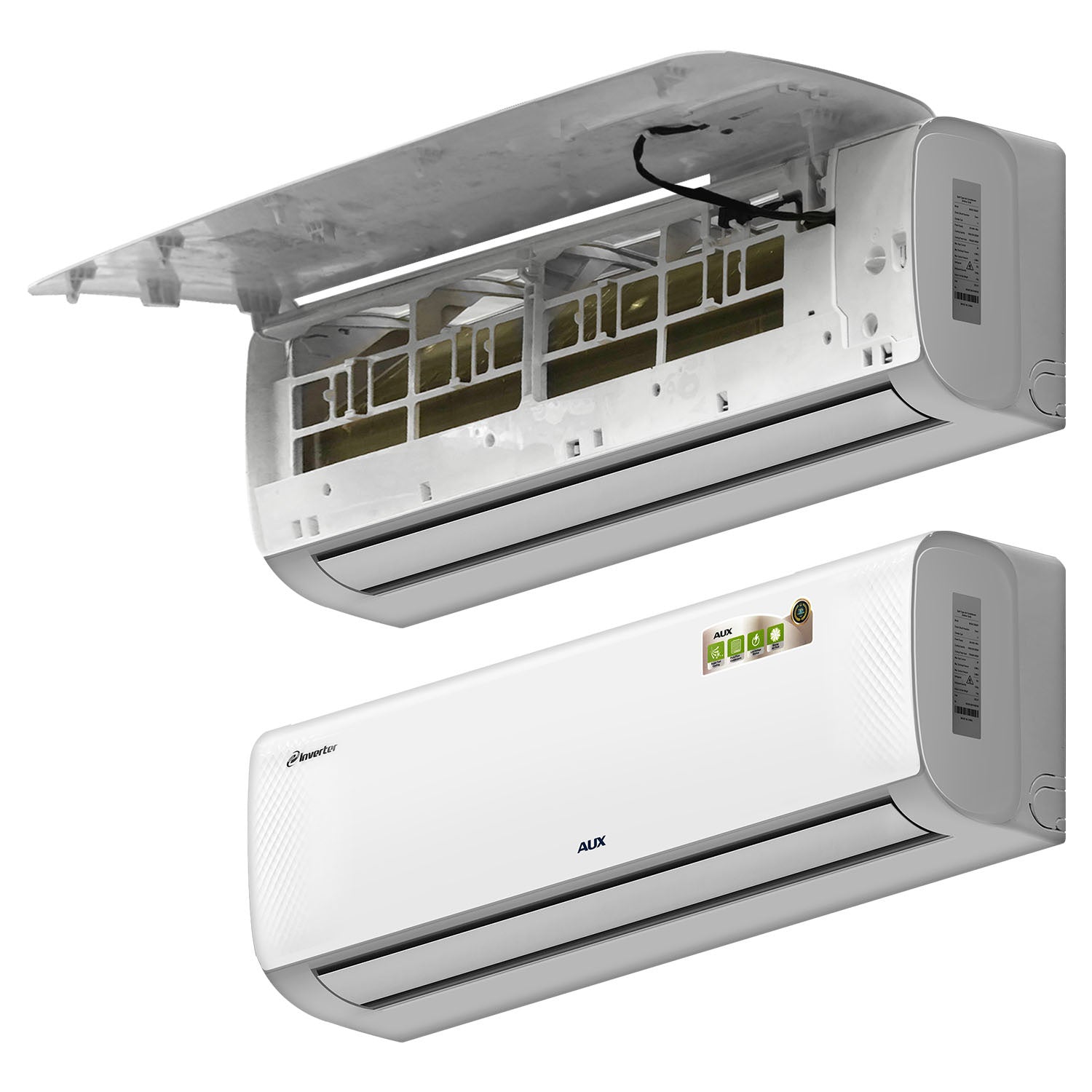

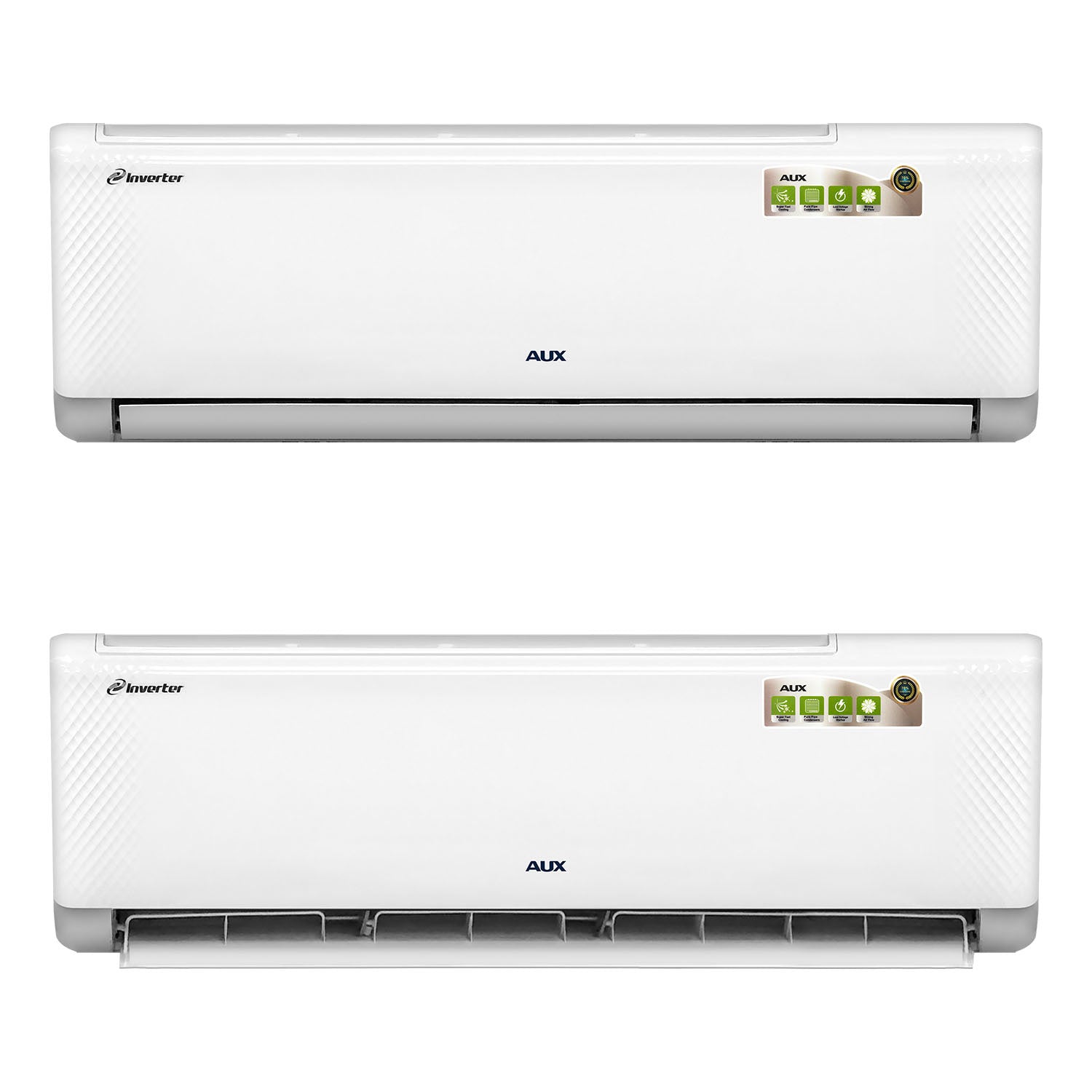

Indoor Unit:

Indoor Noise Level: 40 dB(A)

Evaporator:

• Rows: 2
• Tube pitch: 20.5
• Tube Material: screws inside
• Tube Thickness: 0.25mm
• Tube Quantity: 10
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin Thickness: 0.095mm
• Fin spacing: 1.3mm

Fan System:

• Type: Crossflow
• Material: AS

Connect pipe (length): 3m

Stop Valve:

• Liquid valve: 0.25 (1/4”)
• Gas valve: 0.375 (3/8”)

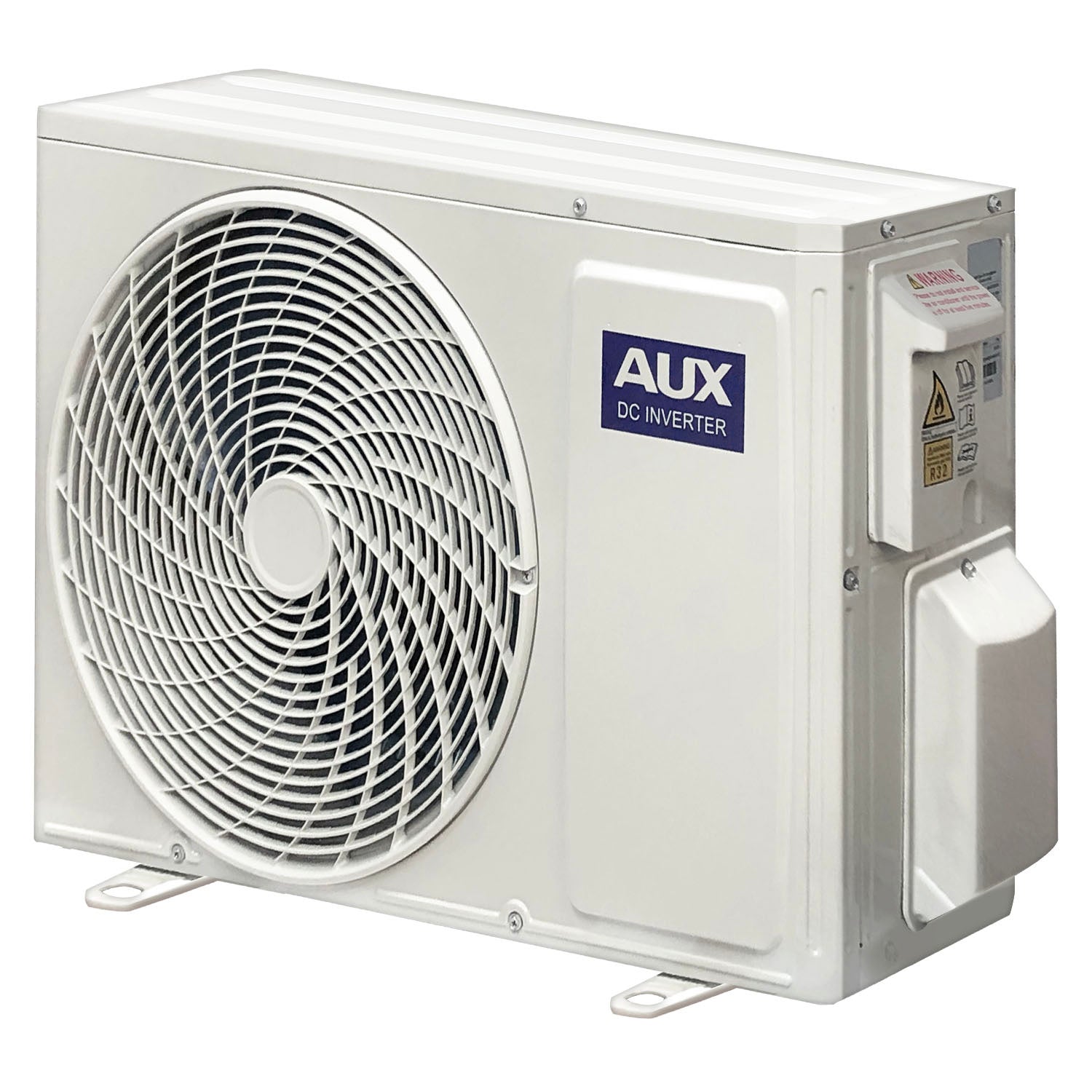

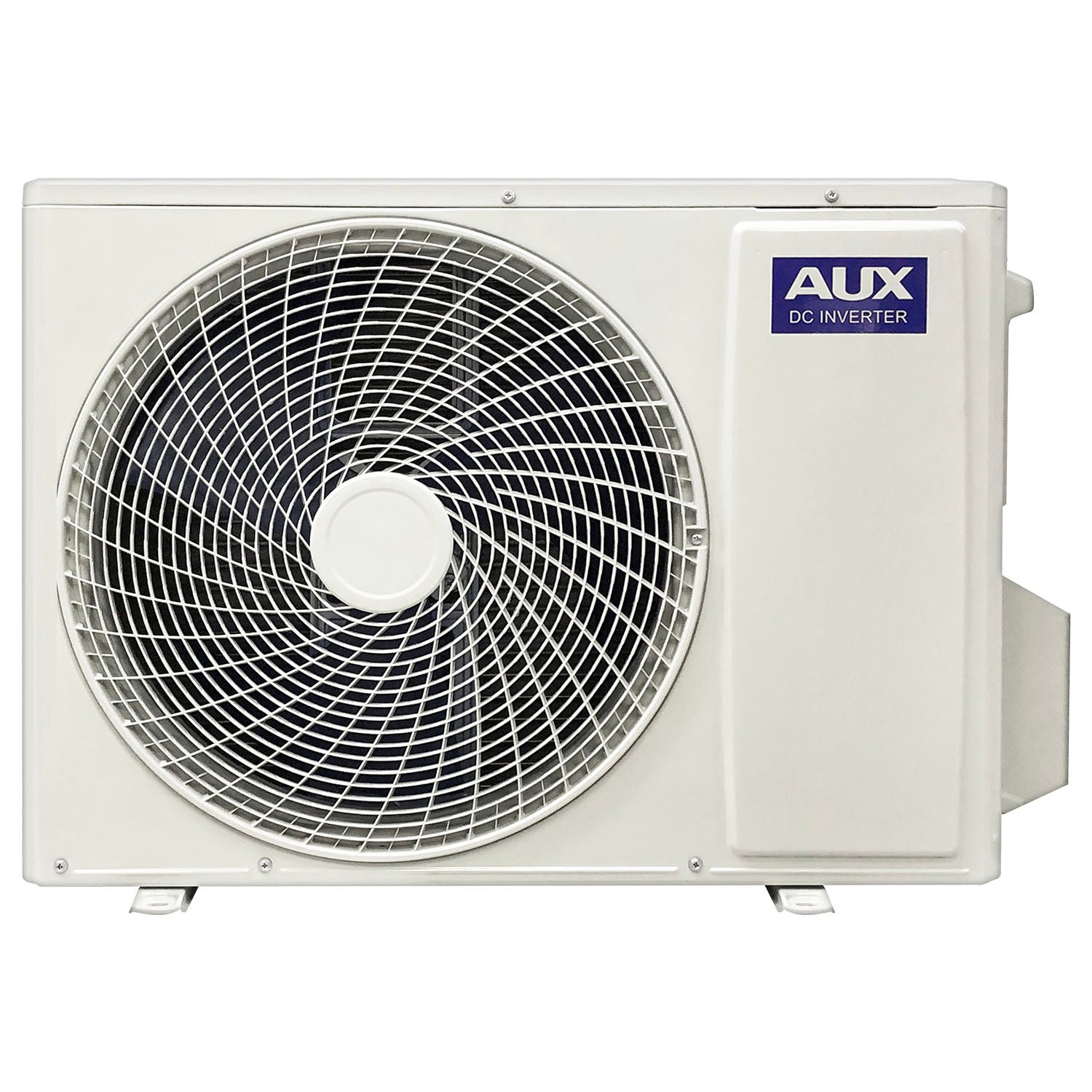

Outdoor Unit:

Outdoor Noise Level: 51 dB(A)

Type: Rotary

Fan:

• Type: Axis flow
• Vane Number: 3
• Blade Material: AS

Motor: D-20-10A

Condenser:

• Row: 1
• Tube Material: screws inside
• Tube Quantity: 11
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin spacing: 1.3mm

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• Product Dimension: 708 x 193 x 282mm (27.9” x 7.6” x 11.1”)
• Packing Dimension: 765 x 269 x 351mm (30.1” x 10.6” x 13.8”)
• Net Weight: 7kg
• Gross Weight: 10kg

Outdoor Unit:

• Product Dimension: 703 x 233 x 455mm (27.7” x 9.3” x 17.9”)
• Packing Dimension: 760 x 305 x 510mm (29.9” x 12” x 20.1”)
• Net Weight: 17kg
• Gross Weight: 20.5kg

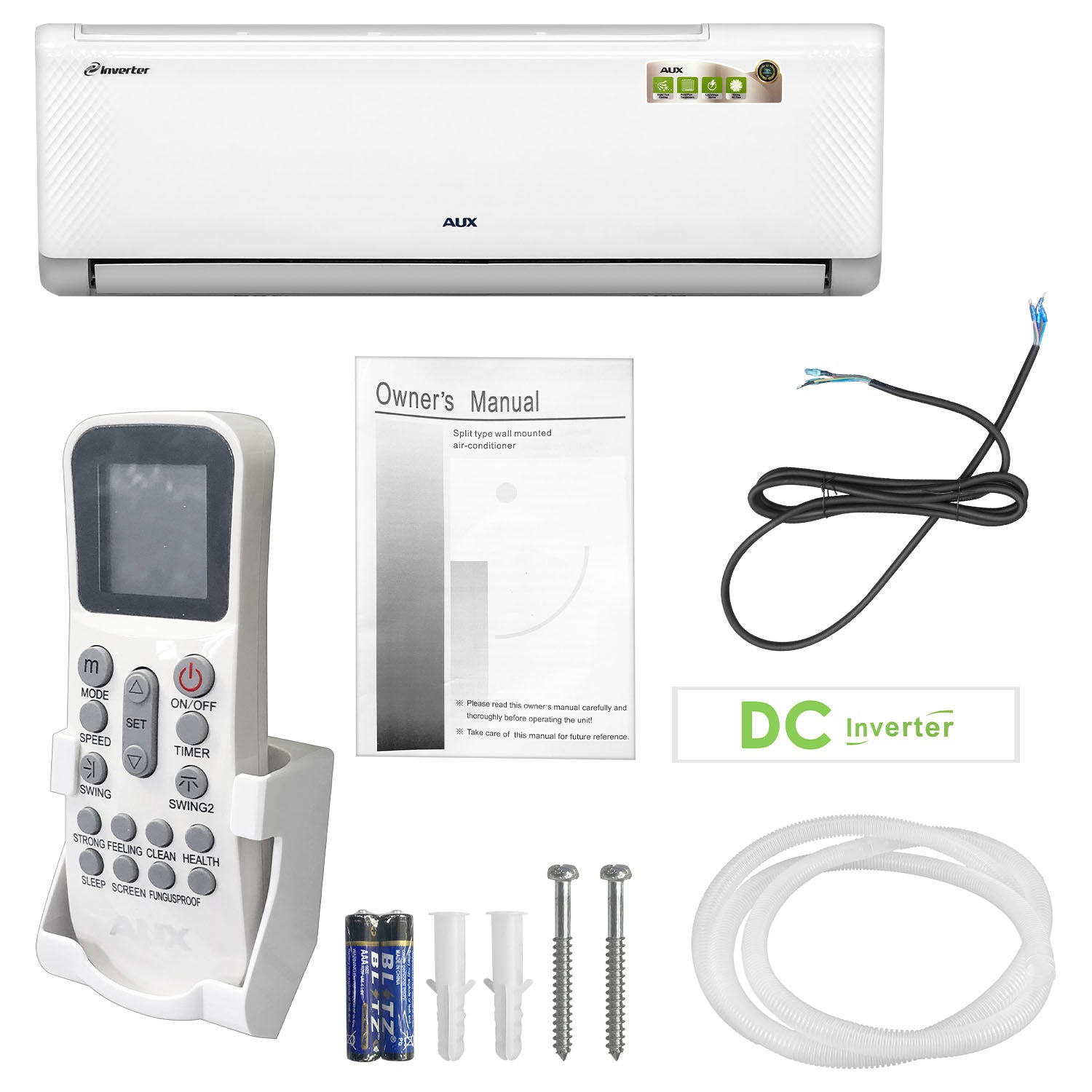

Packing Contents:

9k BTU Indoor Unit – x1

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

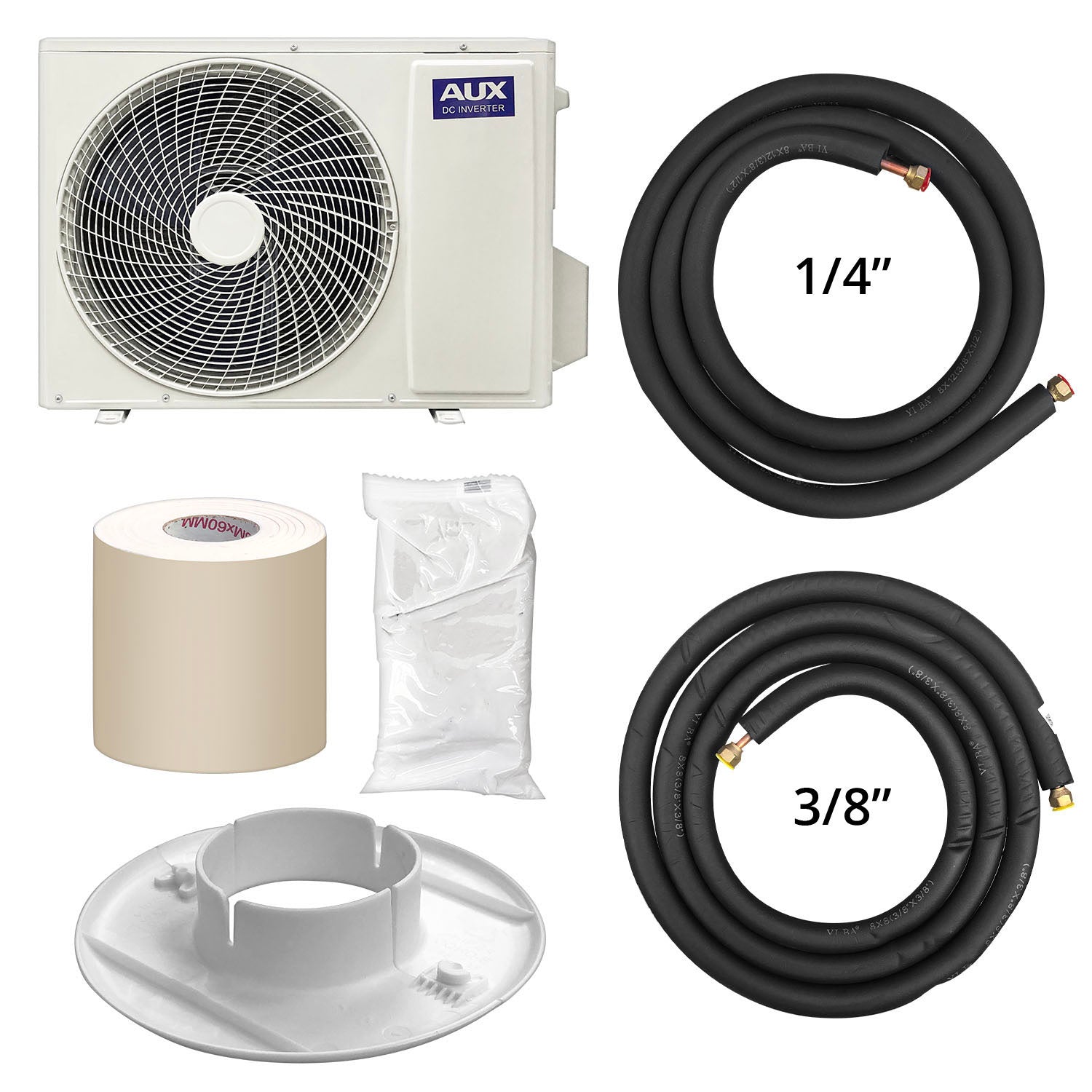

9k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 3/8” Insulated Copper Tube – x1
• Clay – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
