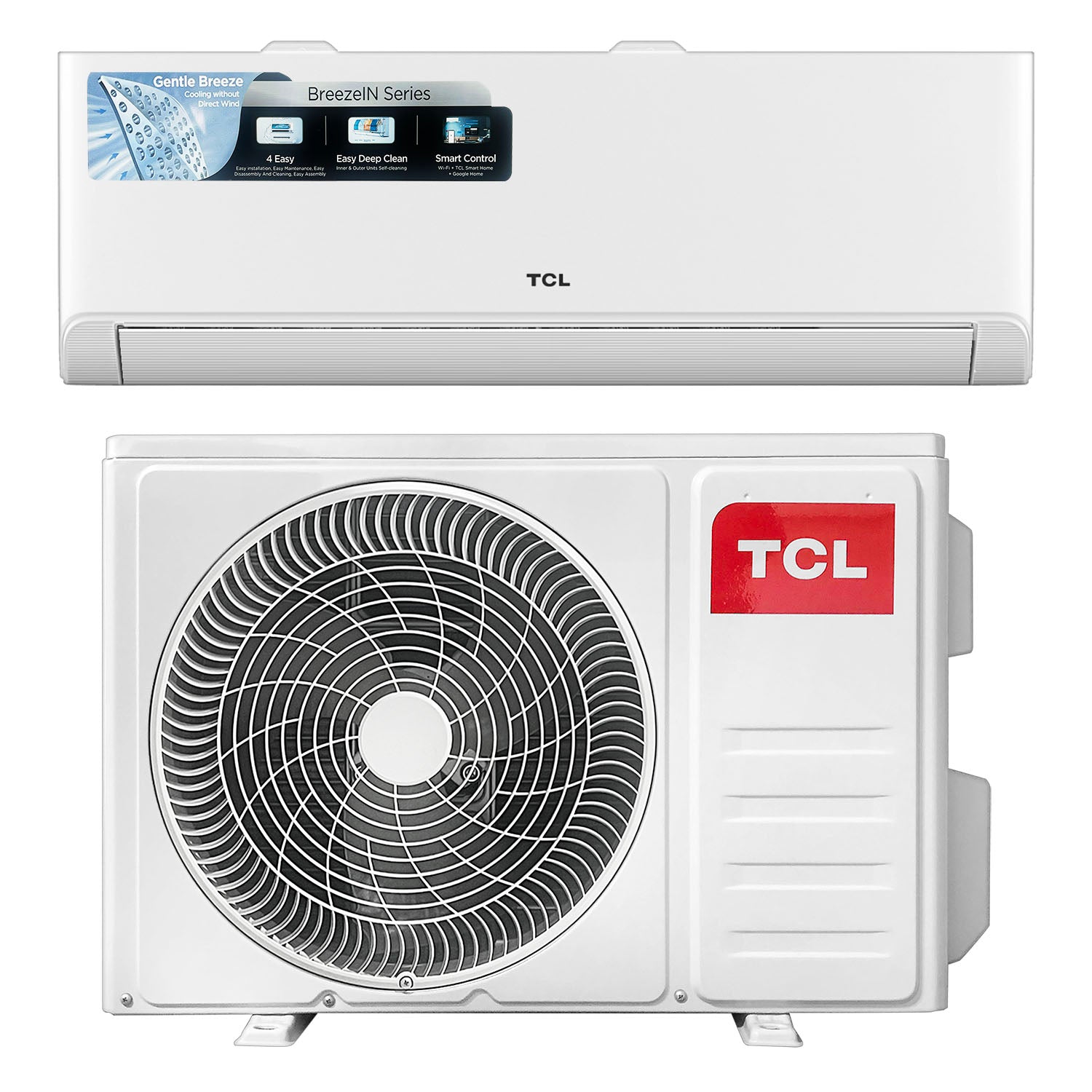

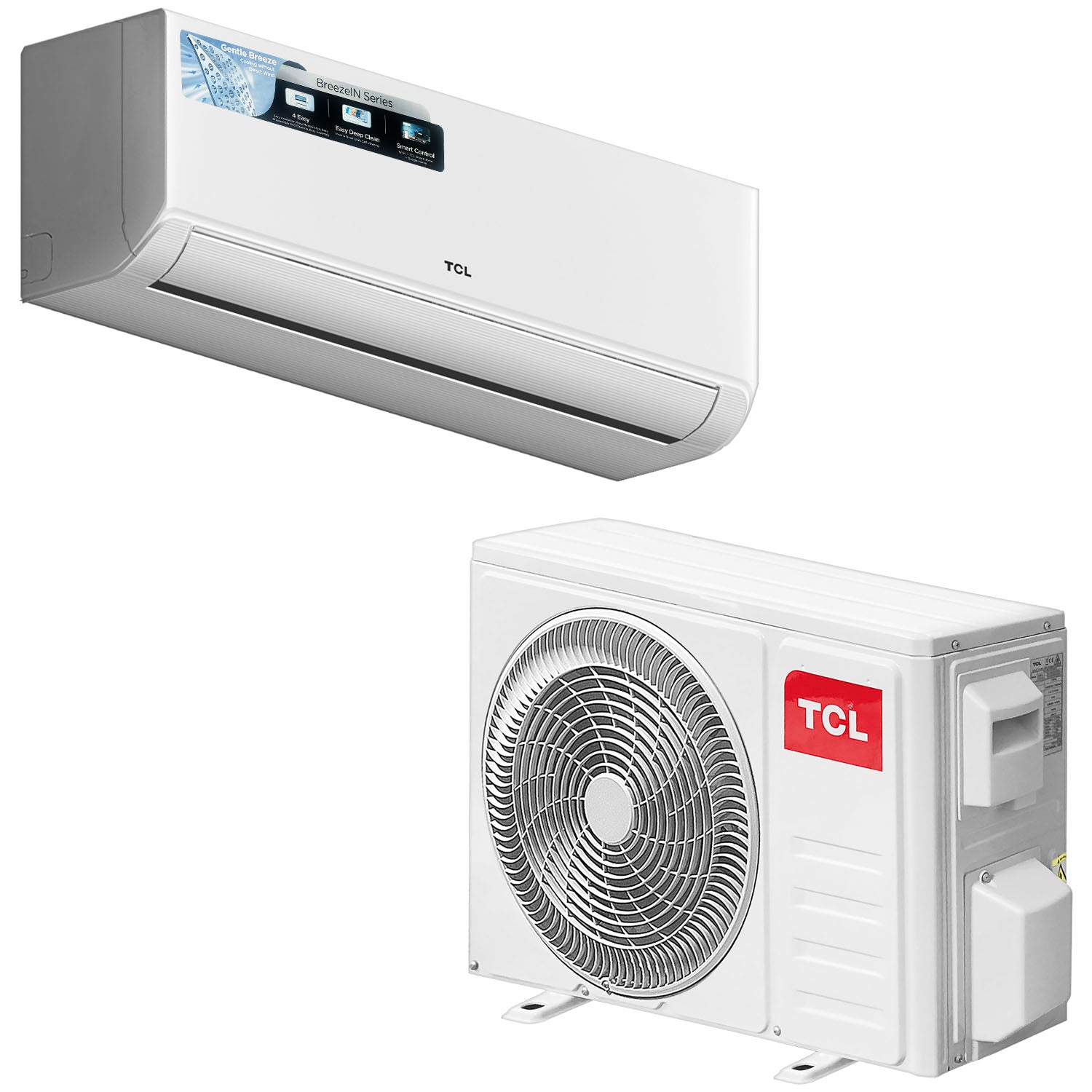

TCL - Air Conditioner (18000BTU)
Inverter – BreezeIN Series
Brand: TCL
Model: TAC-19CSD
Capacity: 18000BTU
Type: Cooling Only
Control type: Remote & App
Rated Cooling Capacity (Btu/h): 18000 (3412~18766)
Rated Cooling Capacity (W): 5380 (1000~5500)
CSPF (Btu/h.w; W/W): 5.469
Star Rating: 5 Star
Moisture removal (Liters/h): 1.5
Indoor noise level at cooling (dB (A)):
Outdoor noise level (dB (A)): 56
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Power Supply:
Power Supply: 220-240V~/50Hz/1P
Voltage Range: 165 ~ 265V
Rated current (Cooling): 8.5 (1.6~12) V
Rated input (Cooling): 1900 (300~2100) W
Max current: 12 A
Max input: 2100 W
Fan System:
Indoor air circulation Cooling (m3/h): 850
Indoor fan type: Cross Flow
Outdoor fan type: Propeller Fan
Additional Specs:
Refrigerant/Charge: R32/0.5Kg
Compressor (Type): Rotary
Connecting Pipe:
-
Gas: Ø12 (1/2'')
-
Liquid: Ø6 (1/4'')
Connecting Wiring (Size x Core number): 4 x 1.5
Suitable area: 20-30 m2
Dimension & Weight:
Width x Depth x Height

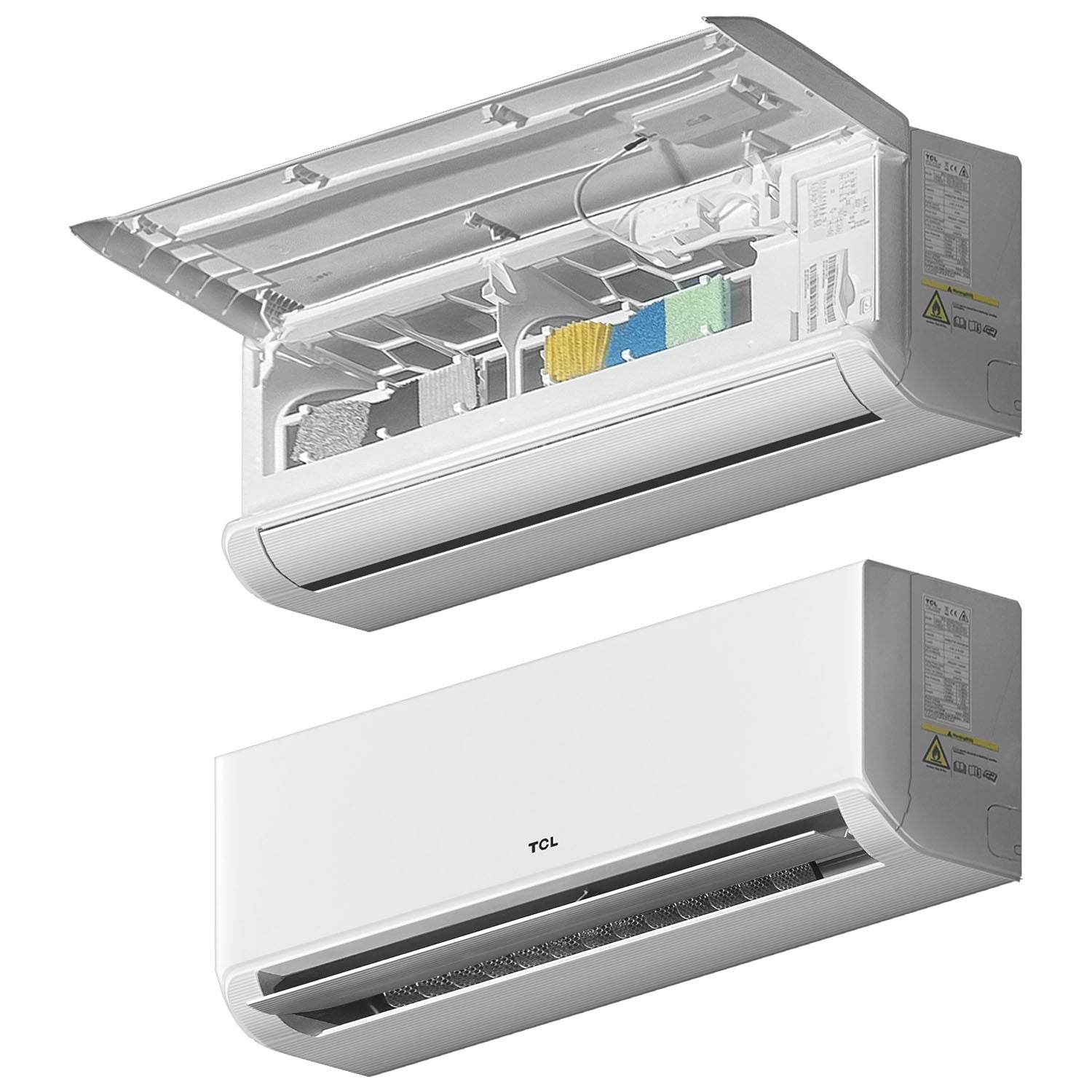

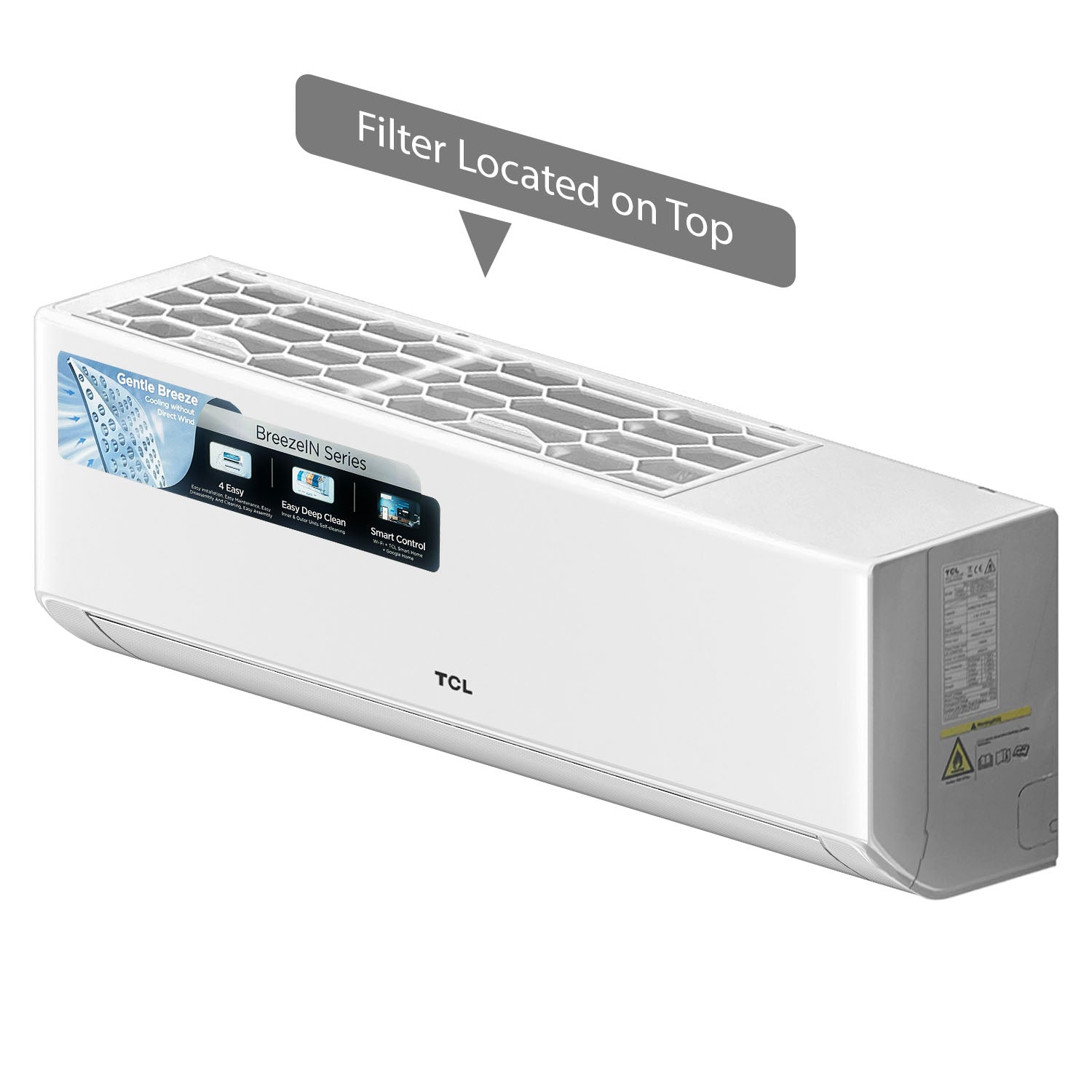

Indoor Unit:
-
Product Dimension: 920 x 195 x 306mm (36.2” x 7.7” x 12”)
-
Packing Dimension: 990 x 265 x 380mm (39” x 10.4” x 15”)
-
Net Weight: 9kg
-
Gross Weight: 11kg

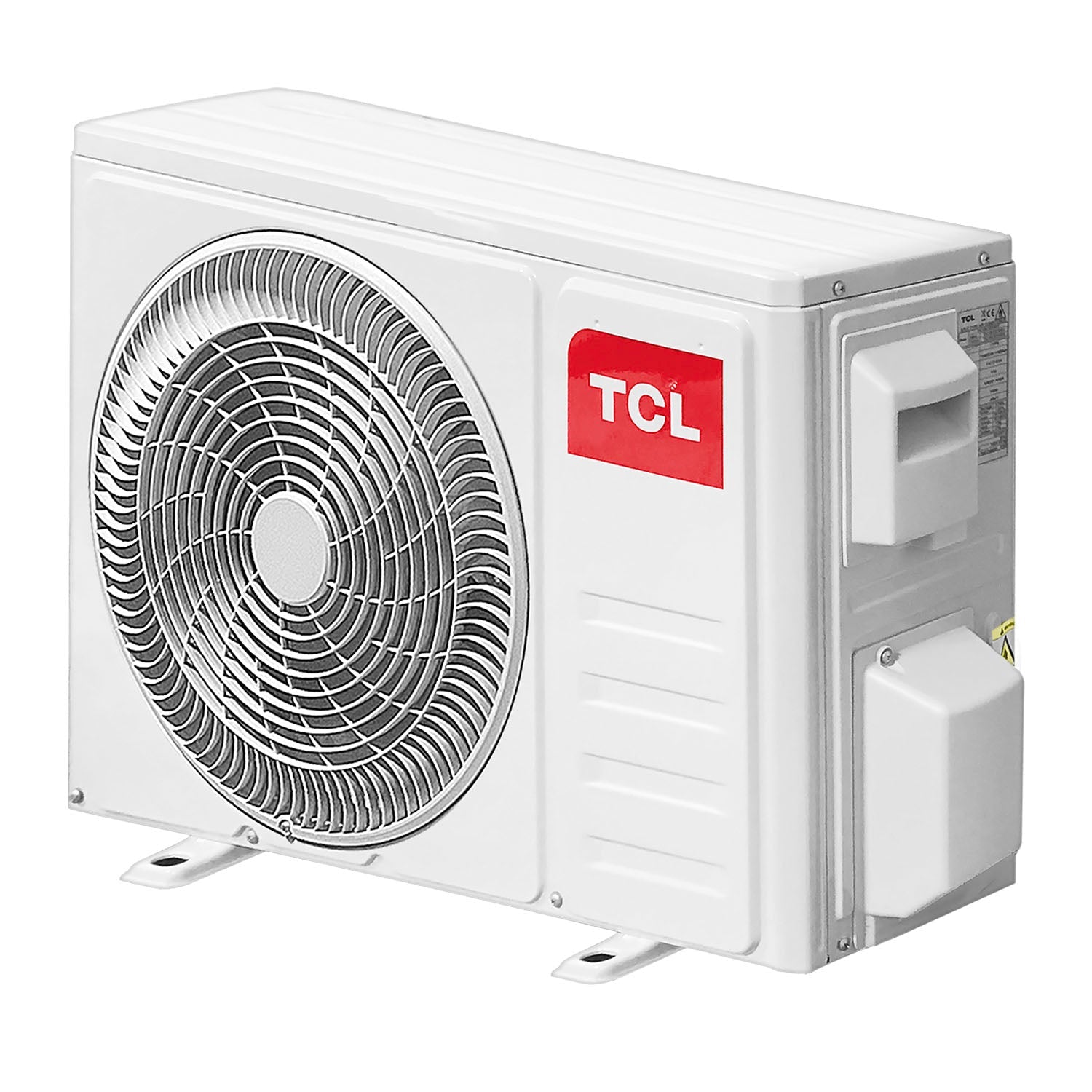

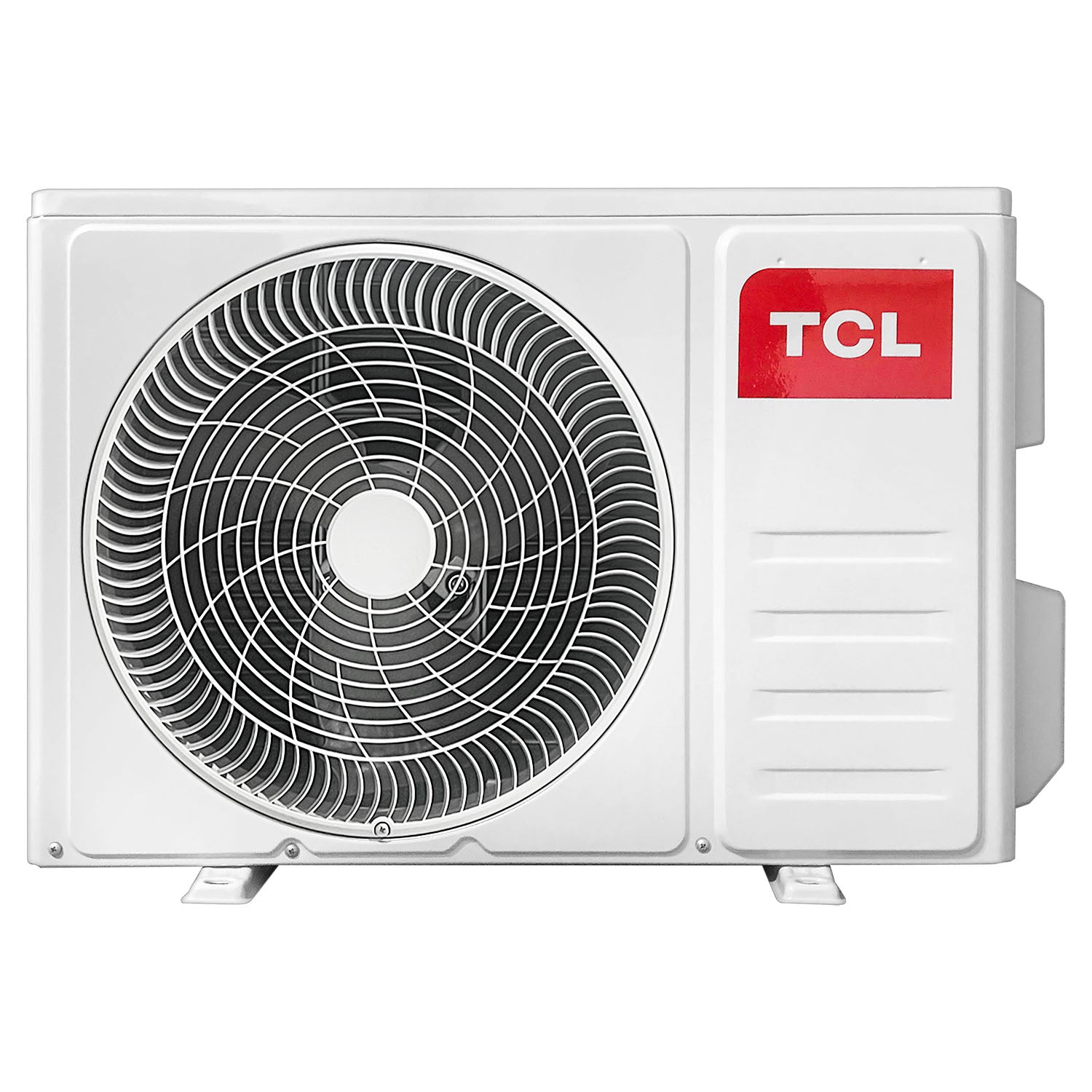

Outdoor Unit:
-
Product Dimension: 810 x 305 x 549mm (32” x 12” x 21.6”)
-
Packing Dimension: 835 x 340 x 585mm (32.9” x 13.4” x 23”)
-
Net Weight: 23kg
-
Gross Weight: 26kg
Packing Contents:

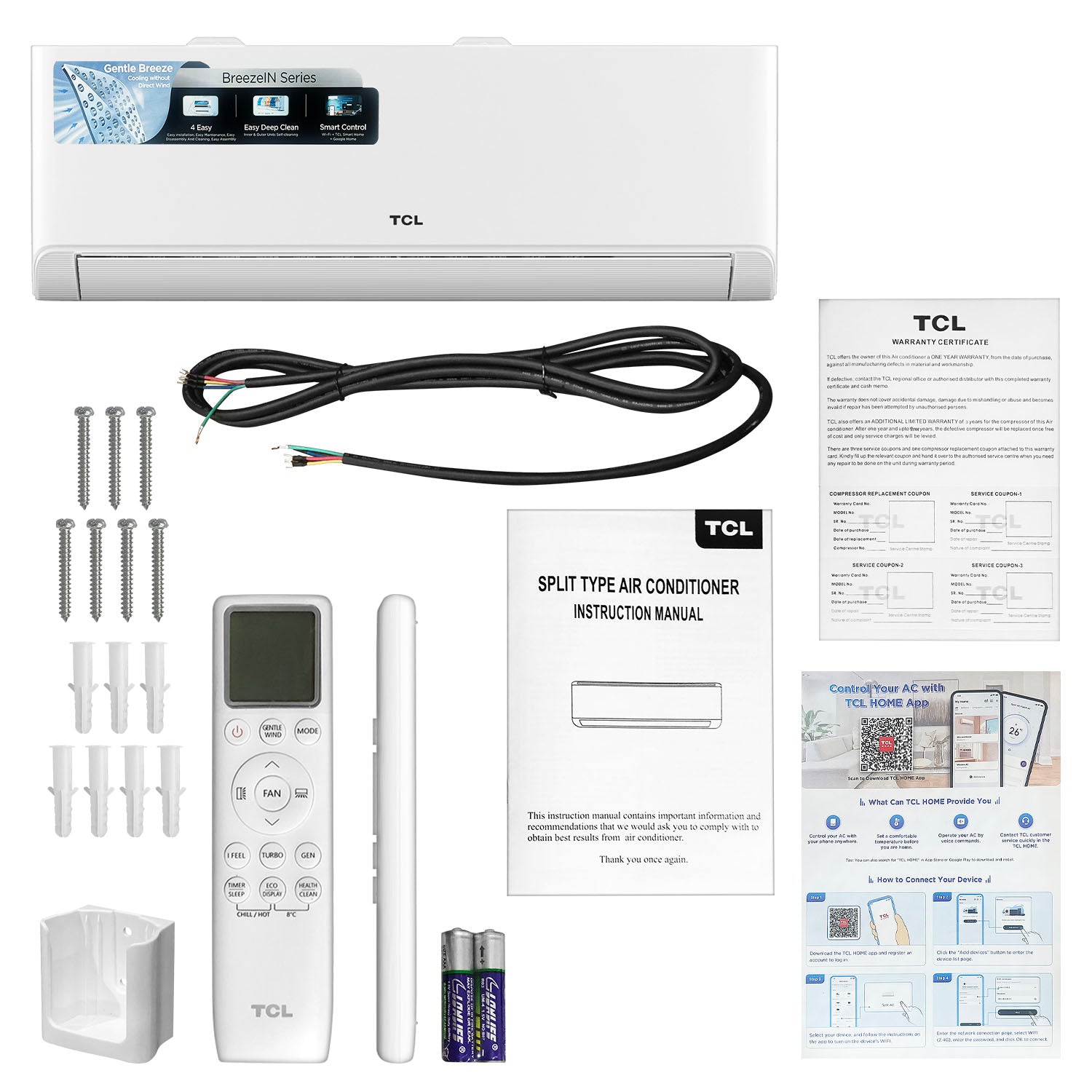

18k BTU Indoor Unit – x1
- 12ft. Electric wire – x1

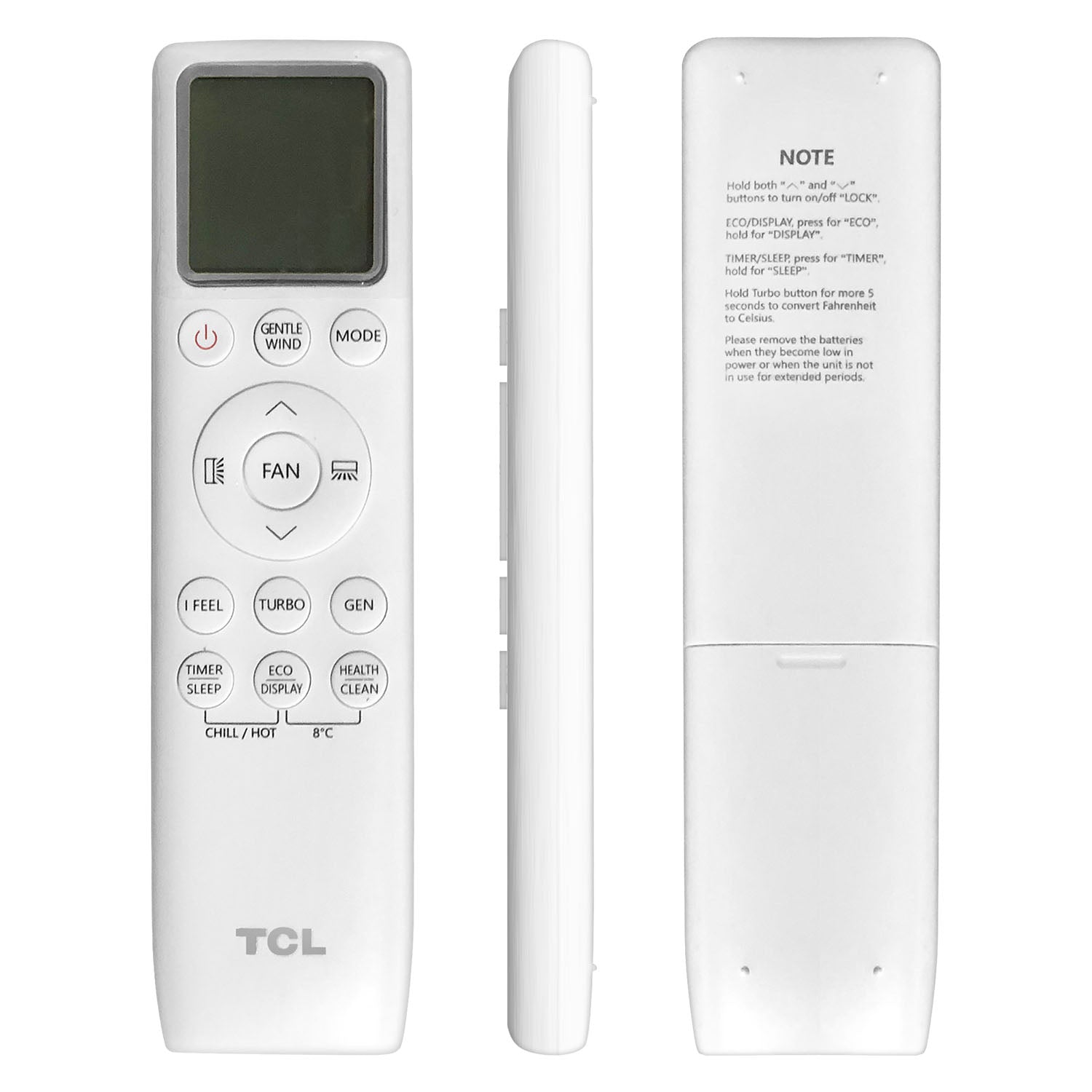

- Remote Control – x1
- AAA Battery – x2
- Wall Mount Remote Holder – x1
- Screws – x7
- Wall Plugs – x7
- App Control Manual – x1
- Warranty Certificate – x1
- User Manual – x1

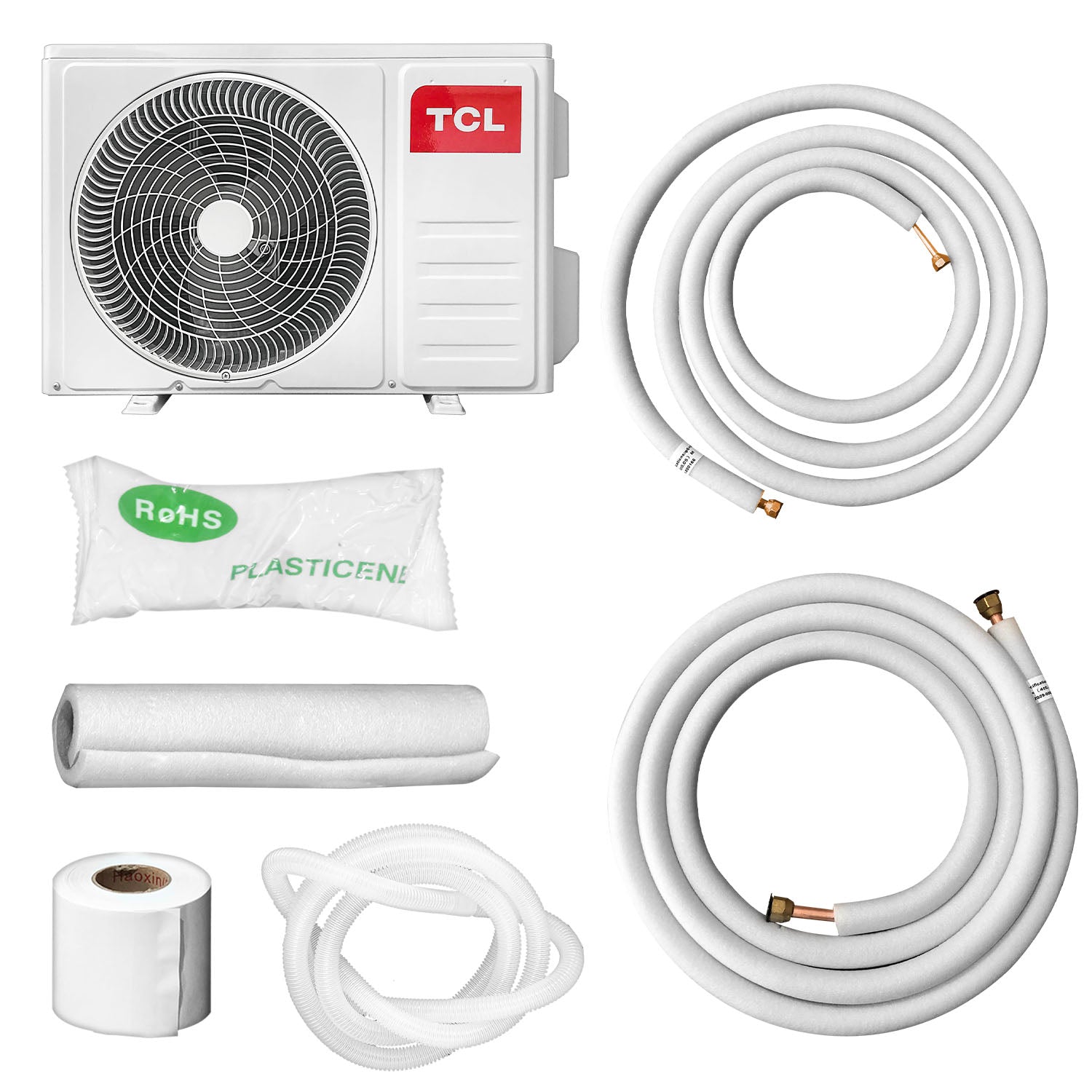

18k BTU Outdoor Unit – x1
- 1/4" Copper Tube (13ft.) – x1
- 1/2” Copper Tube (13ft.) – x1
- Drainage Hose – x1
- Wrapping Roll – x1
- Insulation Sheath – x1
- Plasticene RoHS – x1
