AKAVEE 12000 BTU AC INVERTER WIFI READY
AKAVEE 12000 BTU AC INVERTER WIFI READY
SKU:59064
Couldn't load pickup availability

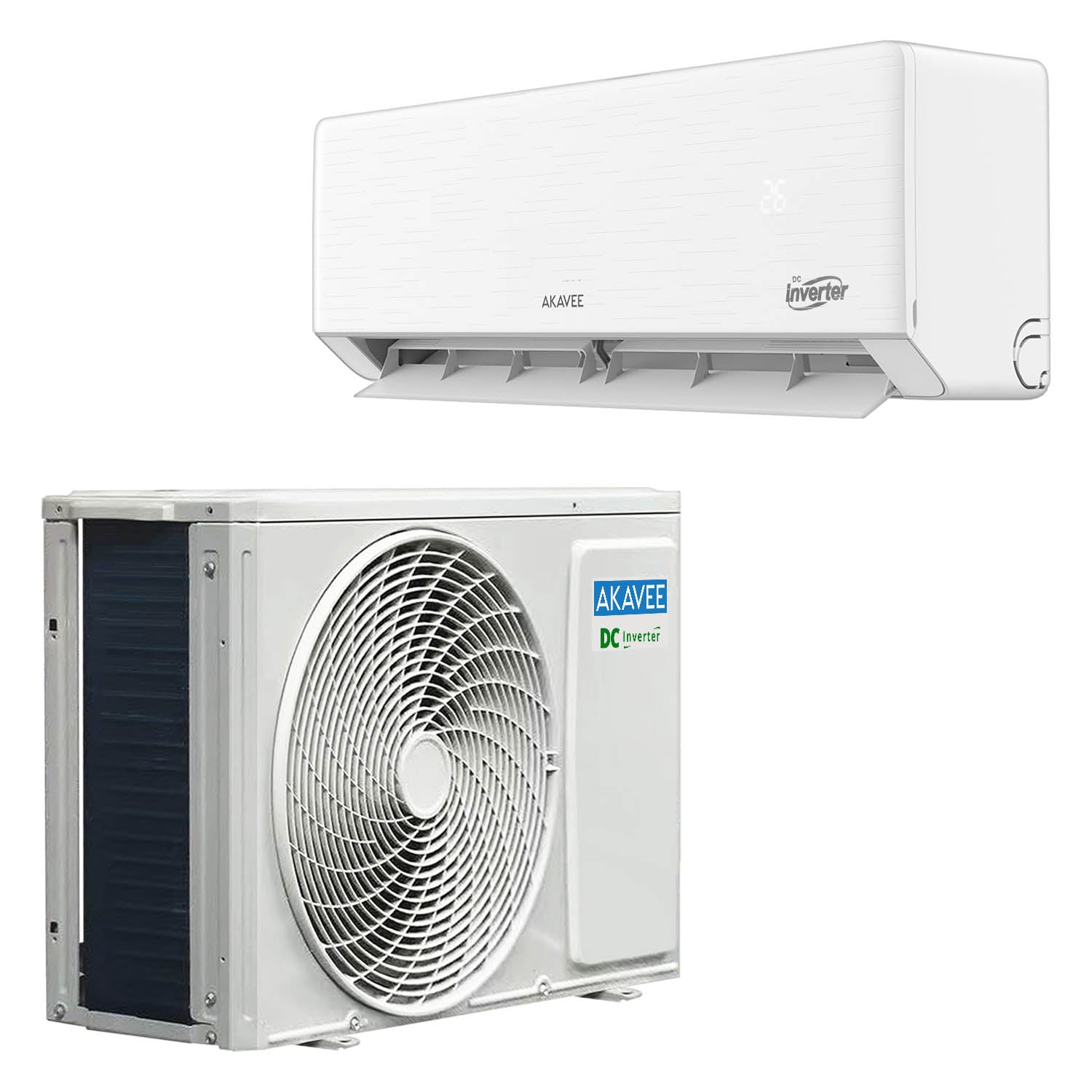

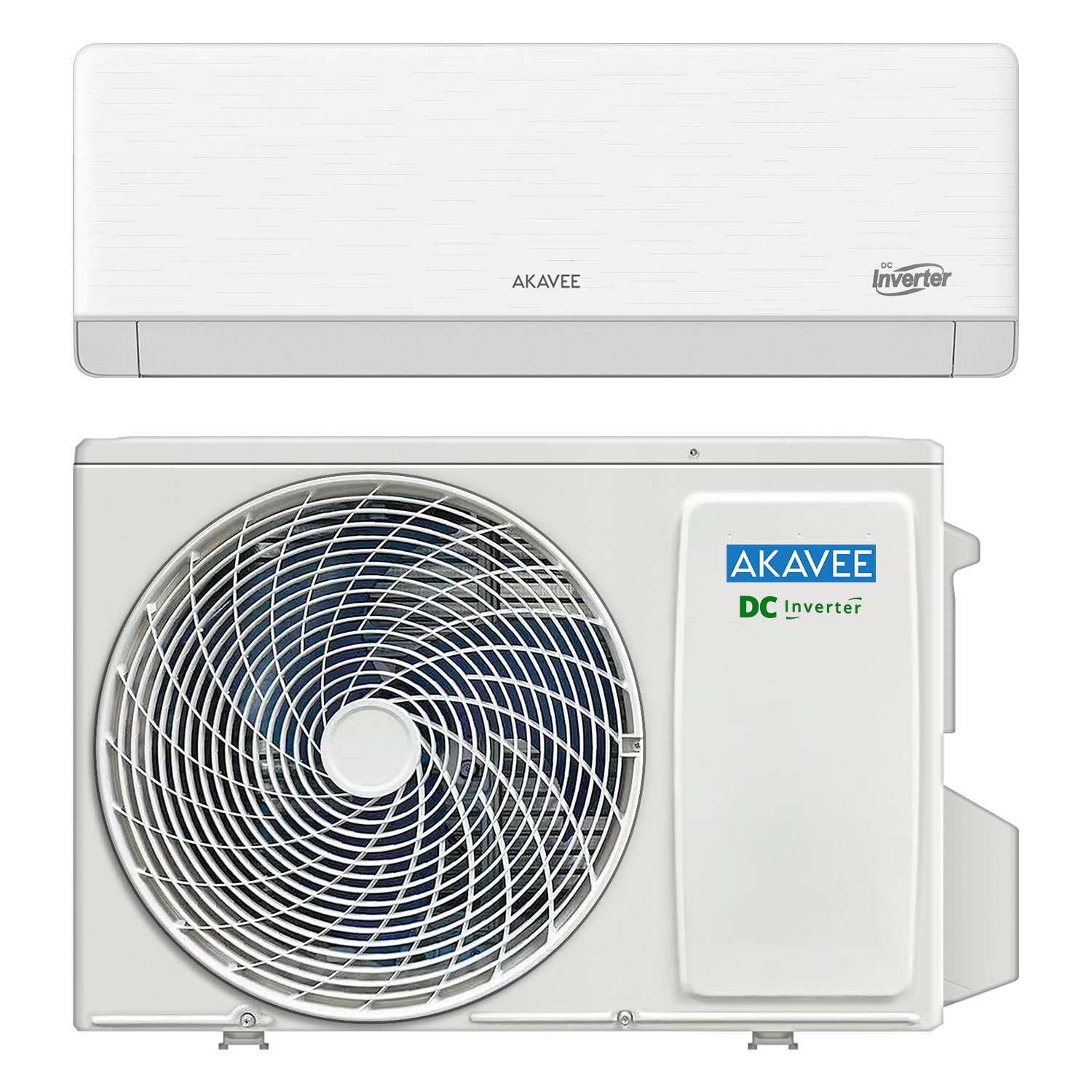

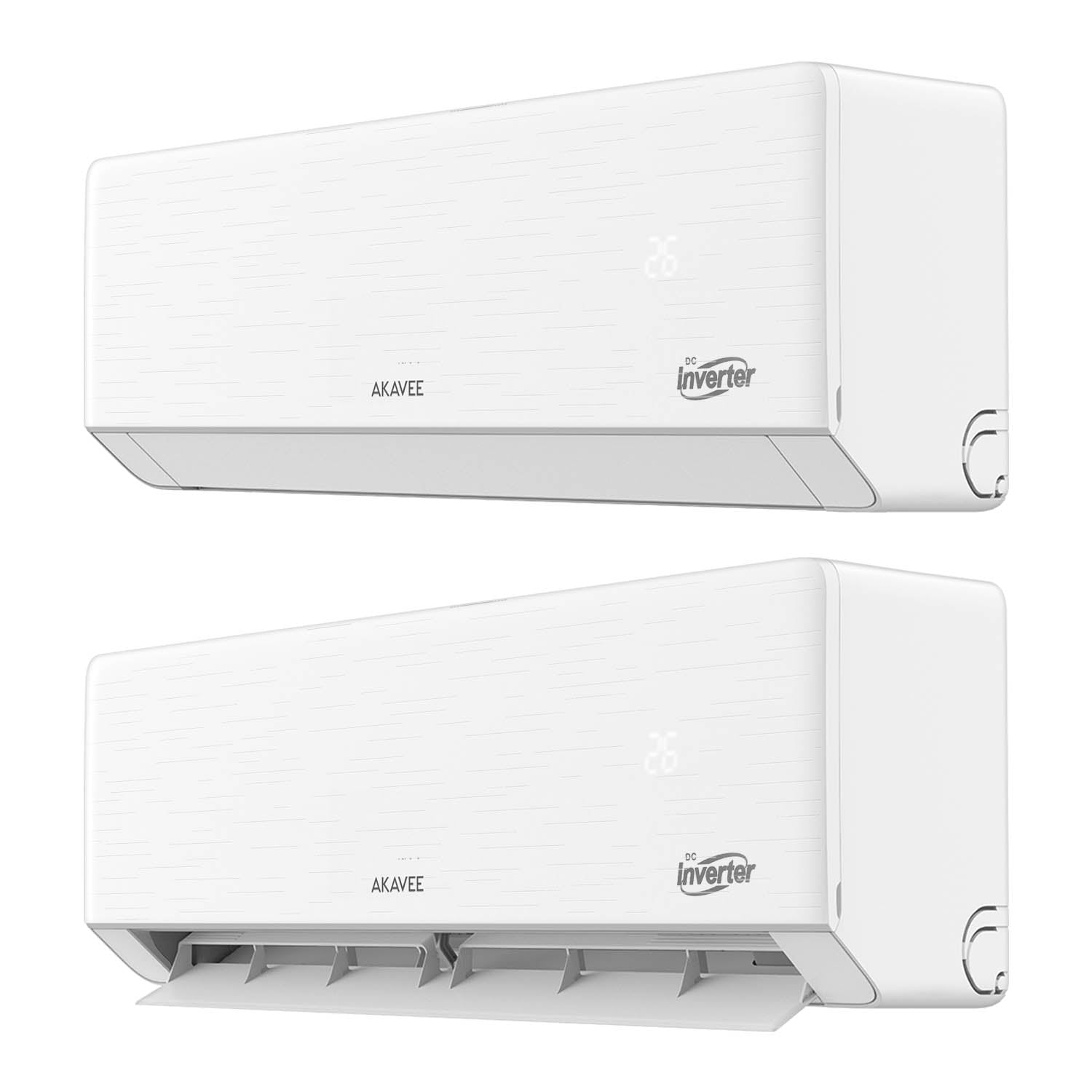

Akavee - Air Conditioner (12000BTU)
Manufactured by AUX
Brand: Akavee
Model: AS-12MER3DI
Type: DC Inverter Split Type
Technical Specs:
Rated Capacity (Cooling): 3500 (1200 - 4000) W
Dehumidifying: 1 Kg/h
Rated Power Consumption (Cooling): 1090 (400 - 1600) W
Rated Running Current: 6.5 (2.0 - 7.2) A
Max. Input Power: 1600W
Max. Input Current: 8A
CSPF (Cooling Seasonal Performance Factor): 4.51 W/W
Air Flow Volume: 600m3/h
Power Supply Source: 220-240V / 1Ph / 50Hz
Refrigerant & Pressure:
Refrigerant: R32
Refrigerant Charged: 360g
Max. Discharge Pressure: 4.3Mpa
Max. Suction Pressure: 2.5Mpa
Connection:
Connect pipe (Length): 3m
Stop Valve:
-
- Liquid Valve: DG4
- Gas Valve: DG8
Indoor Unit:
Noise level: 42db
Evaporator (tube):
-
- Length: 562mm
- Diameter: 5mm
Fan system (fan motor): Model D-13-10L
Outdoor Unit:
Noise level: 52db
Compressor Model: GMCC
Compressor Parameter (type): Rotation
Fan system (fan motor): Model D-20-10A
Condenser (tube):
-
- Length: 632mm
- Diameter: 5mm

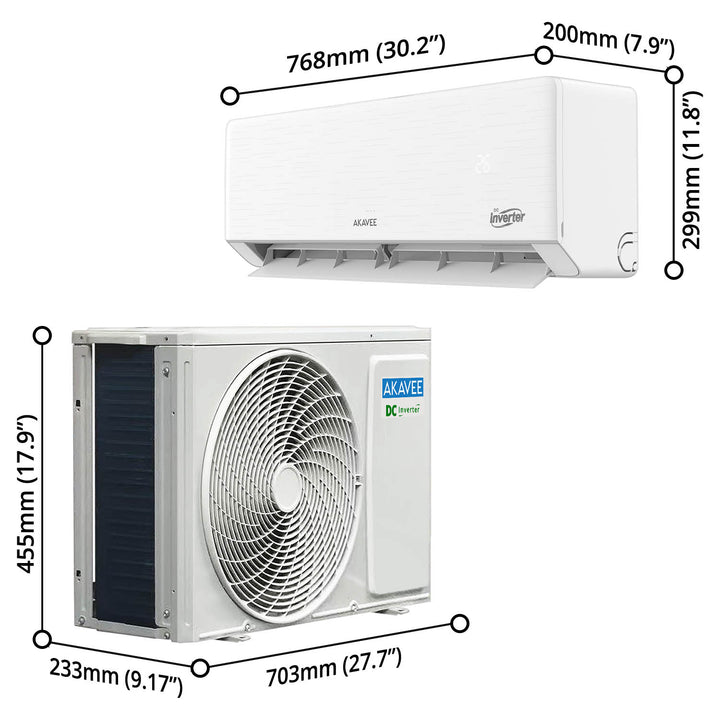

Dimension & Weight:
Width x Depth x Height

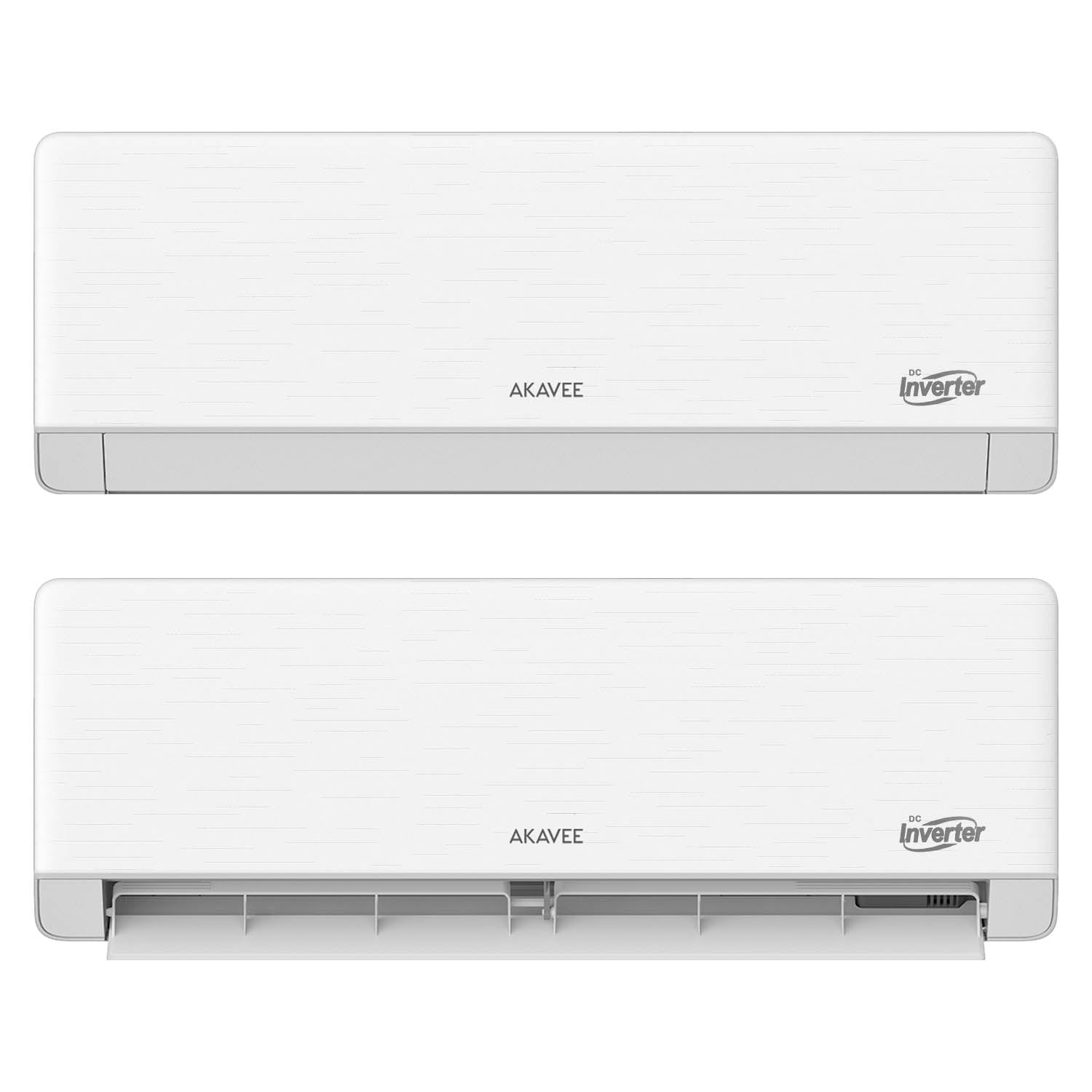

Indoor Unit:
-
- Product Dimension: 768 x 200 x 299mm (30.2” x 7.9” x 11.8”)
- Packing Dimension: 831 x 371 x 282mm (32.7” x 14.6” x 11.1”)
- Net Weight: 8kg
- Gross Weight: 10kg
Outdoor Unit:
-
- Product Dimension: 703 x 233 x 455mm (27.7” x 9.17” x 17.9”)
- Packing Dimension: 760 x 315 x 510mm (29.9” x 12.4” x 20.1”)
- Net Weight: 16kg
- Gross Weight: 18.5kg

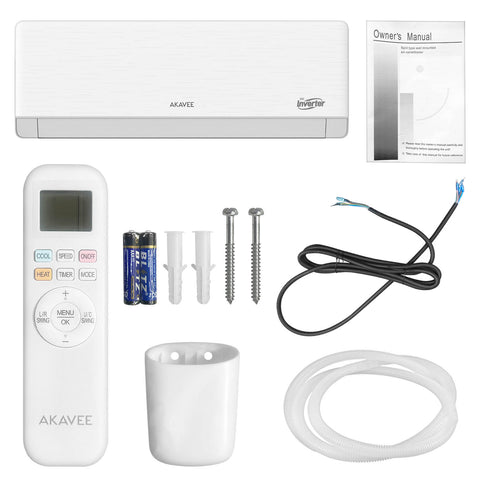

Packing Contents:
12k BTU Indoor Unit – x1

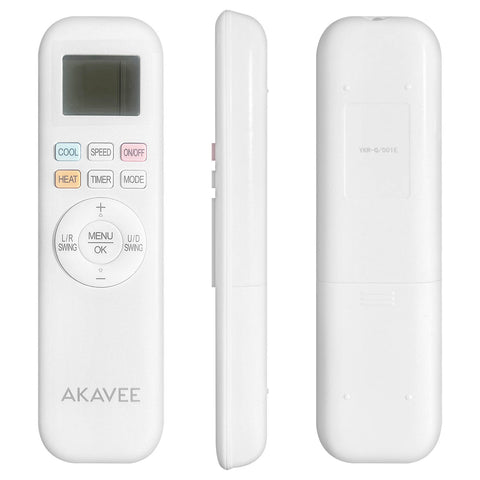

- Remote Control – x1
- Remote Holder (Wall-Mount) – x1
- Screws with Plugs – x2
- AA Battery – x2
- Electric Wire – x1
- Drainage Hose – x1
- User Manual – x1

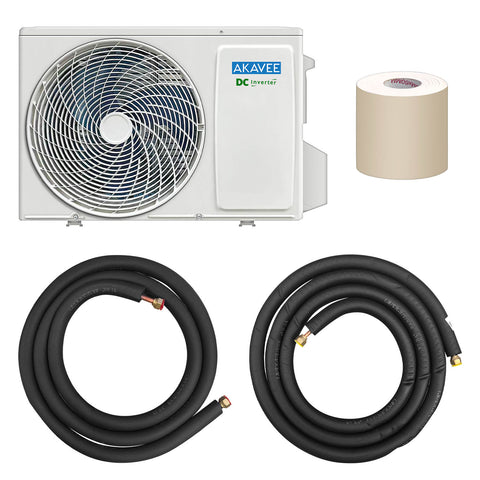

12k BTU Outdoor Unit – x1
- Insulated Copper Tube – x1
- Insulated Copper Tube – x1
- Wrapping Roll – x1
