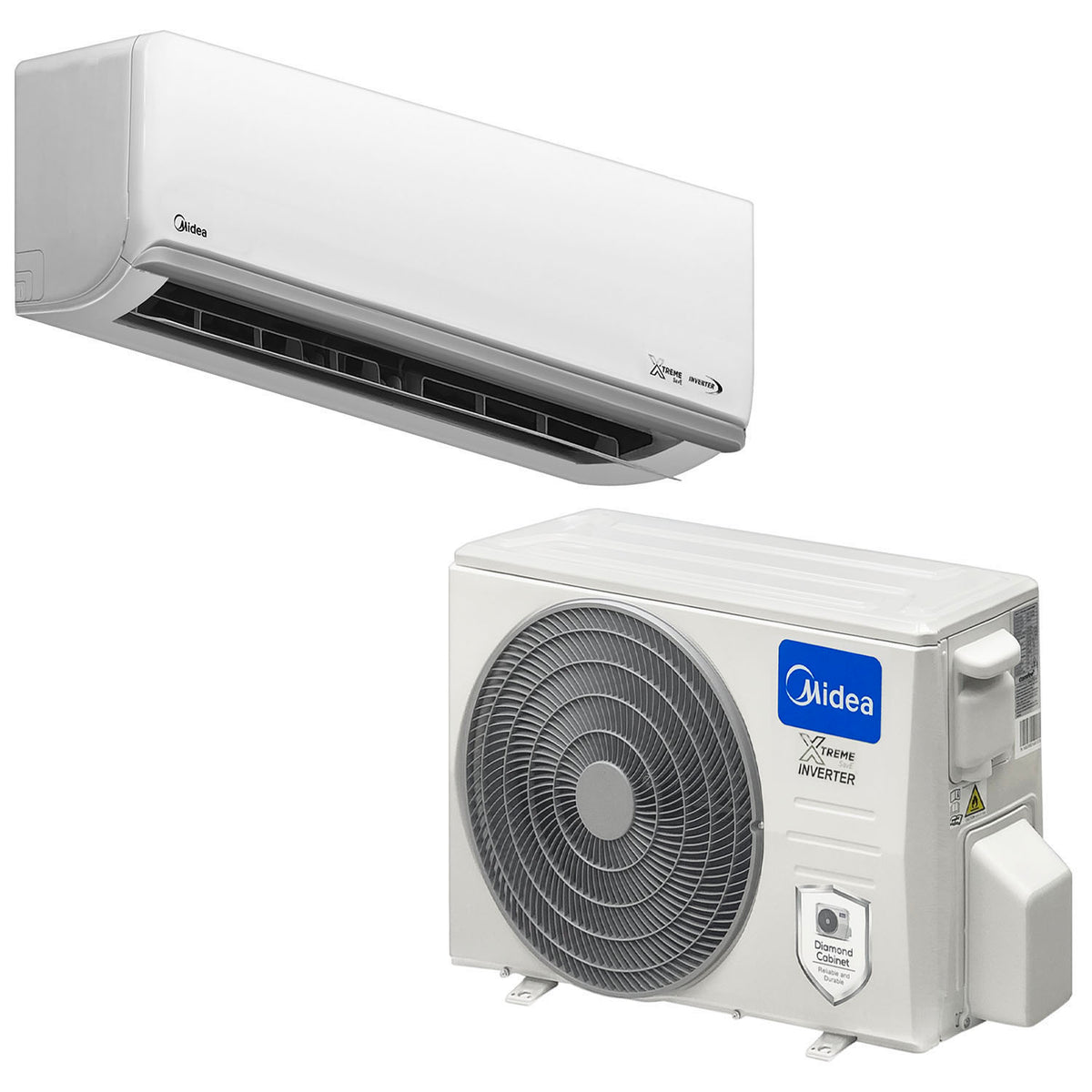

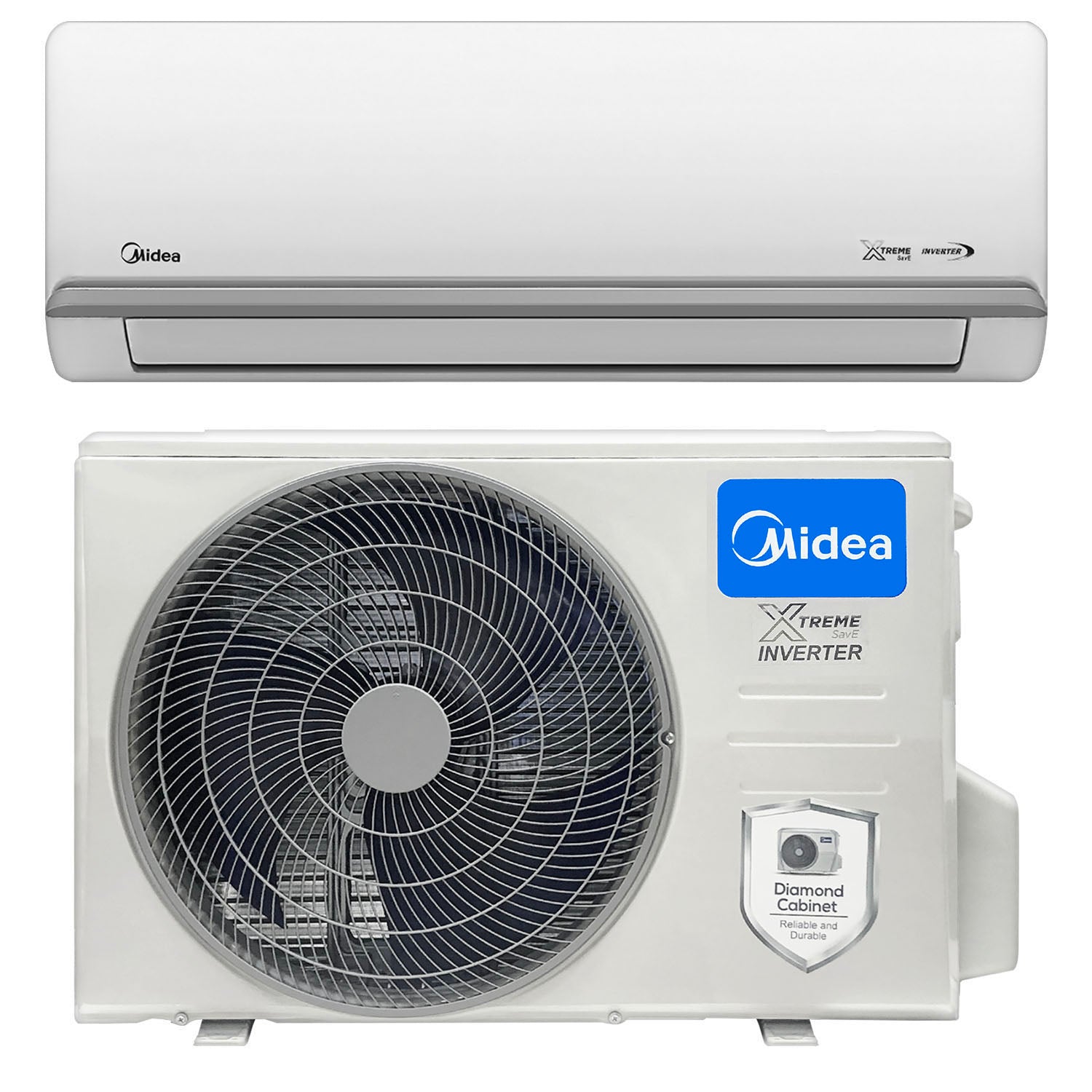

MIDEA 9000 BTU AC INVERTER
MIDEA 9000 BTU AC INVERTER
SKU:47935
Couldn't load pickup availability
Midea – Air Conditioner
Xtreme Series
Brand: Midea
Model: MSXS-10CRDN8
Capacity: 9000BTU
Type: Cooling Only
Control type: Remote (Wi-Fi Control Optional)
Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz
Cooling:
- Cooling Capacity (Btu/h): 10000
- Input (W): 780W
- Rated Current (A): 3.4A
- EER (W/W): 3.76
Max. Input Consumption (W): 1150W
Max. Current (A): 6.5A
Compressor:
- Type: Rotary
- Capacity (W): 3255W
- Input (W): 826W
- Rated current (RLA) (A): 5.65A
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

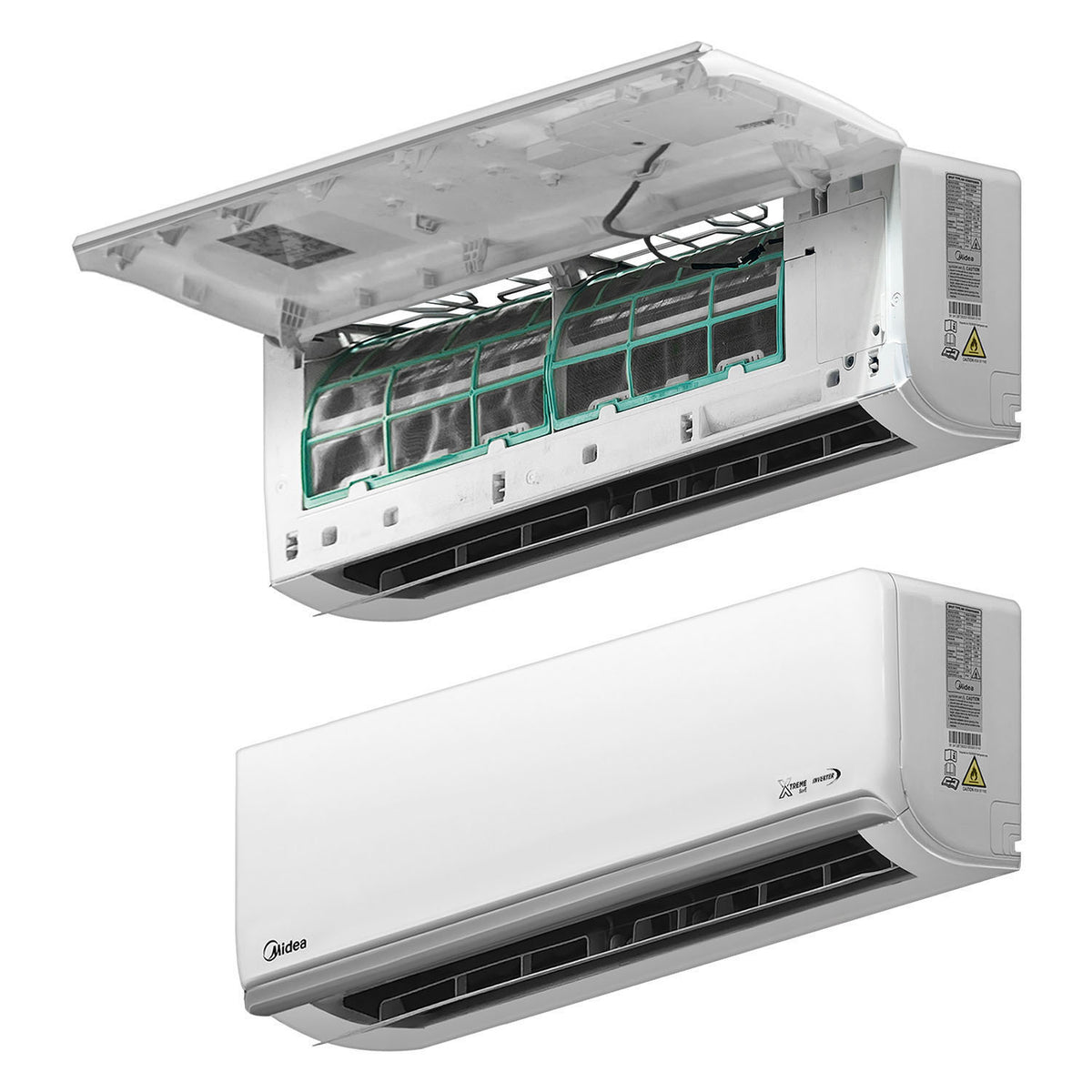

Indoor Unit:
Indoor Fan Motor:
- Input (W): 43W
- Capacitor (uF): 1.5 uF
- Speed (High/Middle/Low): 1150/1010/940 r/min
Indoor Coil:
- Number of rows: 2
- Tube pitch (a) x row pitch (b): 21 x 13.37mm
- Fin spacing: 1.3mm
- Fin type (code): Hydrophilic aluminum
- Tube outside dia. and type: Φ7,Inner groove tube
- Coil (length x height x width): 605 x 231 x 26.74mm + 605 x 105 x 26.74mm
- Number of circuits: 2
Indoor air flow (High/Middle/Low): 550.4/397.6/317.9 m3/h
Indoor noise level (High/Middle/Low): 39/35/34 dB (A)

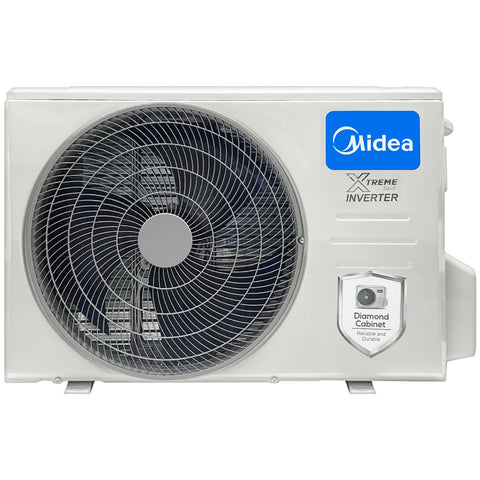

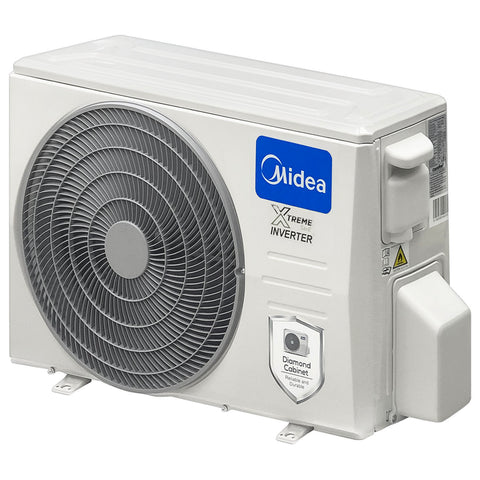

Outdoor Unit:
Outdoor Fan Motor:
- Input (W): 63.5W
- Capacitor (uF): 2.5 uF
- Speed: 860 r/min
Outdoor Coil:
- Number of rows: 1
- Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
- Fin spacing: 1.2mm
- Fin type (code): green anti-corrosion aluminum
- Tube outside dia. and type: Φ5,Inner groove tube
- Coil (length x height x width): 740 x 468 x 11.6mm
- Number of circuits: 2
Outdoor air flow: 1800 m3/h
Outdoor noise level: 51.5 dB (A)
Additional Specs:
Refrigerant Type: R32/0.38 kg
Design Pressure: 4.3/1.7 MPa
Refrigerant Piping:
- Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
- Max. Refrigerant Pipe Length: 25m
- Max. Difference in Level: 10m
Connection Wiring: 3.5m
Plug Type: BS three flat pin plug
Thermostat Type: Remote Control
Operation Temperature: 17 ~ 30 °C
Room Temperature:
- Indoor (Cooling): 17 ~ 32 °C
- Outdoor (Cooling): 0 ~ 50 °C
Application Area (Cooling Standard): 13 ~ 20m2
Dimension & Weight:
Width x Depth x Height
Indoor Unit:
- Product Dimension: 835 x 208 x 295mm (32.9” x 8.1” x 11.6”)
- Packing Dimension: 905 x 355 x 290mm (35.6” x 14” x 11.4”)
- Net Weight: 8.9kg
- Gross Weight: 11.8kg
Outdoor Unit:
- Product Dimension: 720 x 270 x 495mm (28.3” x 10.6” x 19.5”)
- Packing Dimension: 835 x 300 x 540mm (32.9” x 11.8” x 21.3”)
- Net Weight: 21.7kg
- Gross Weight: 23.6kg
Packing Contents:
9k BTU Indoor Unit – x1
- Electric Wire – x1
- Remote Control – x1
- AA Battery – x2
- Remote Holder (Wall-Mount) with 2 Screws – x1
- Screws – x5
- Wall Plugs – x5
- Small Filter – x2
- Remote Controller User Manual – x1
- User Manual – x1
9k BTU Outdoor Unit – x1
- 1/4" Insulated Copper Tube – x1
- 3/8” Insulated Copper Tube – x1
- Sealing Clay – x1
- Wall Sleeve – x1
- Wall Hole Cover – x1
- Wrapping Roll – x1
