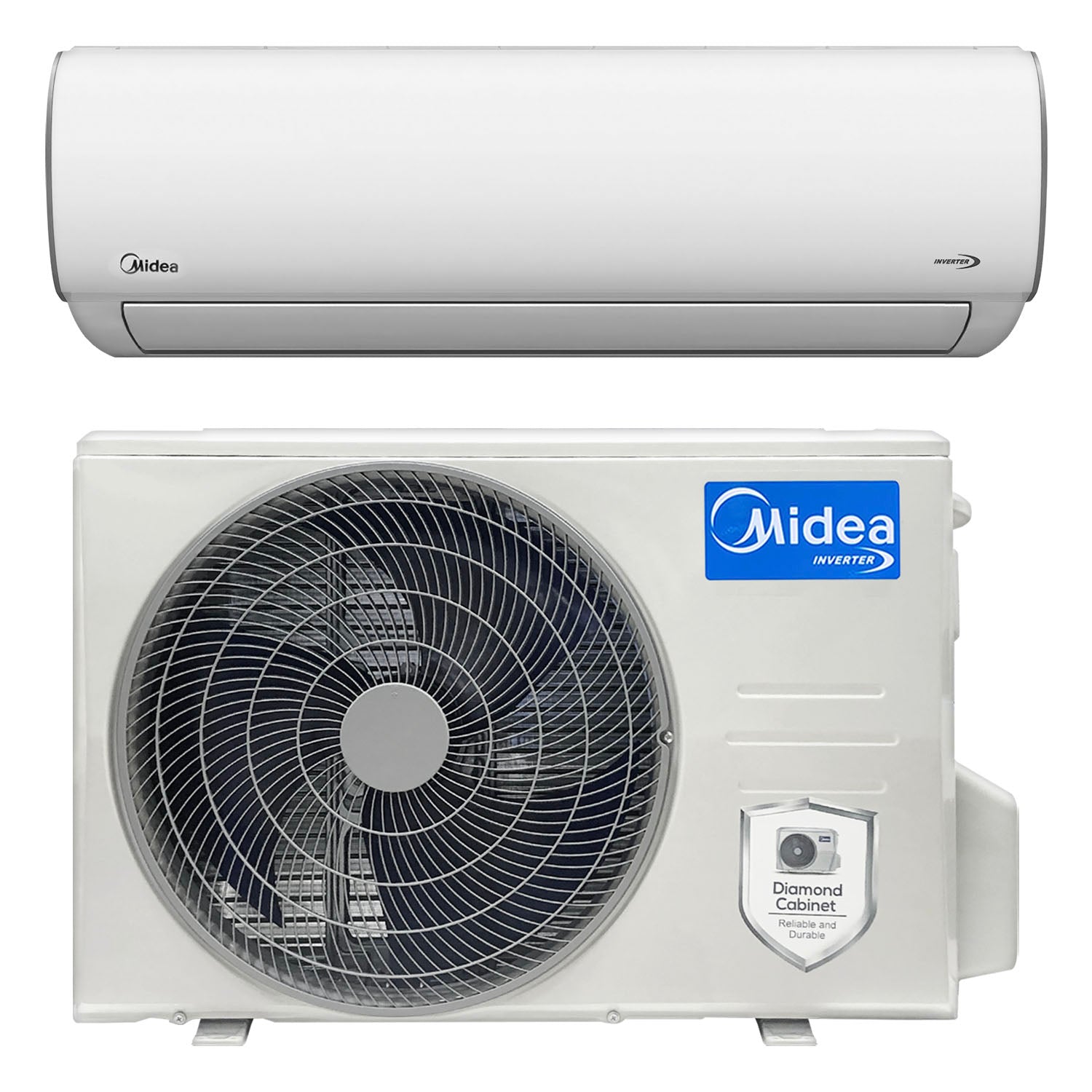

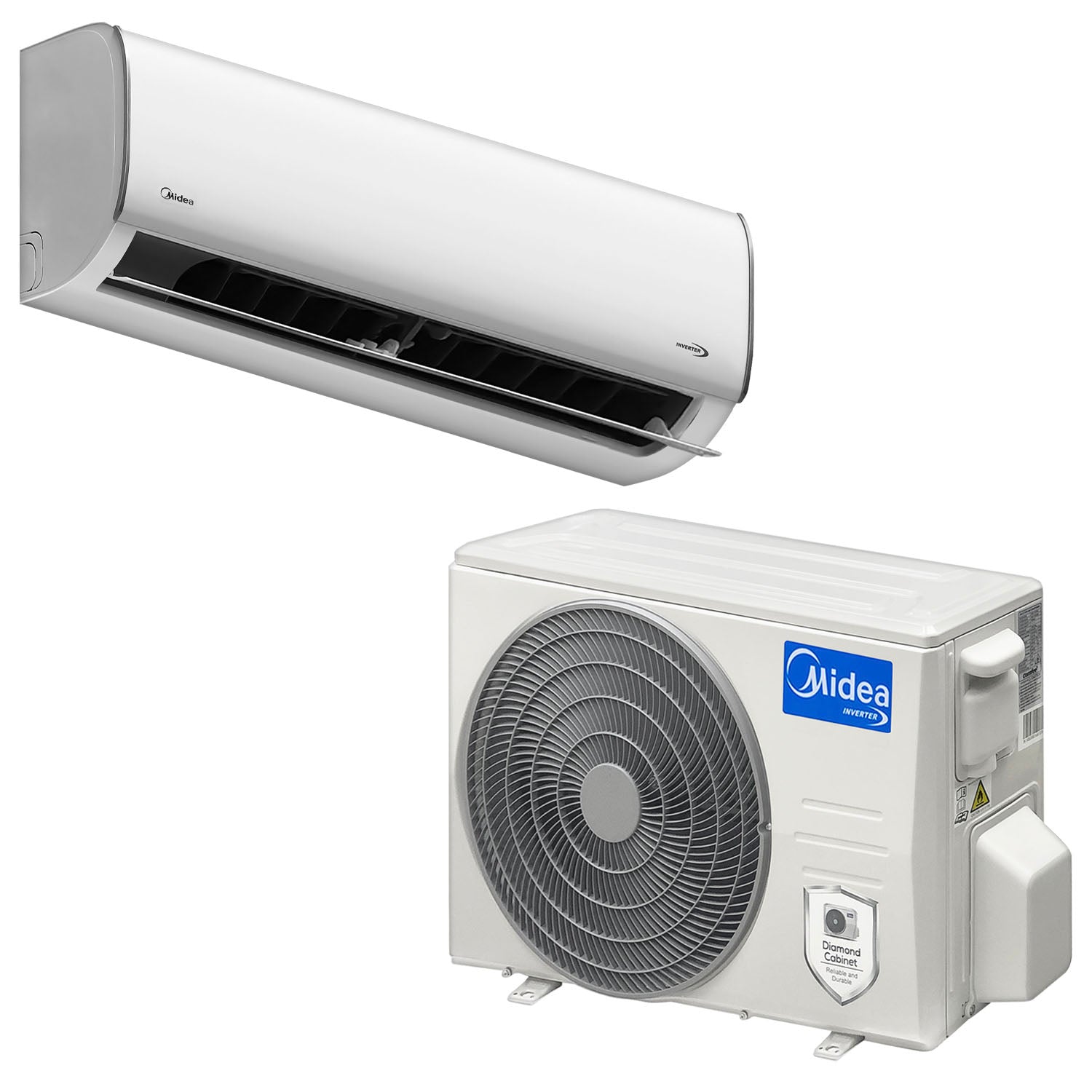

MIDEA 24000 BTU AC INVERTER FOREST SERIES

Midea – Air Conditioner

Inverter - Forest Series

Brand: Midea

Model: MSAF-24CRDN8

Capacity: 24000BTU

Type: Cooling Only

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• Cooling Capacity (Btu/h): 24000
• Input (W): 2000W
• Rated Current (A): 8.7A
• EER (W/W): 3.08

Max. Input Consumption (W): 2800W

Max. Current (A): 13.5A

Compressor:

• Type: Rotary
• Capacity (W): 4385W
• Input (W): 1140W
• Rated current (RLA) (A): 7.50A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

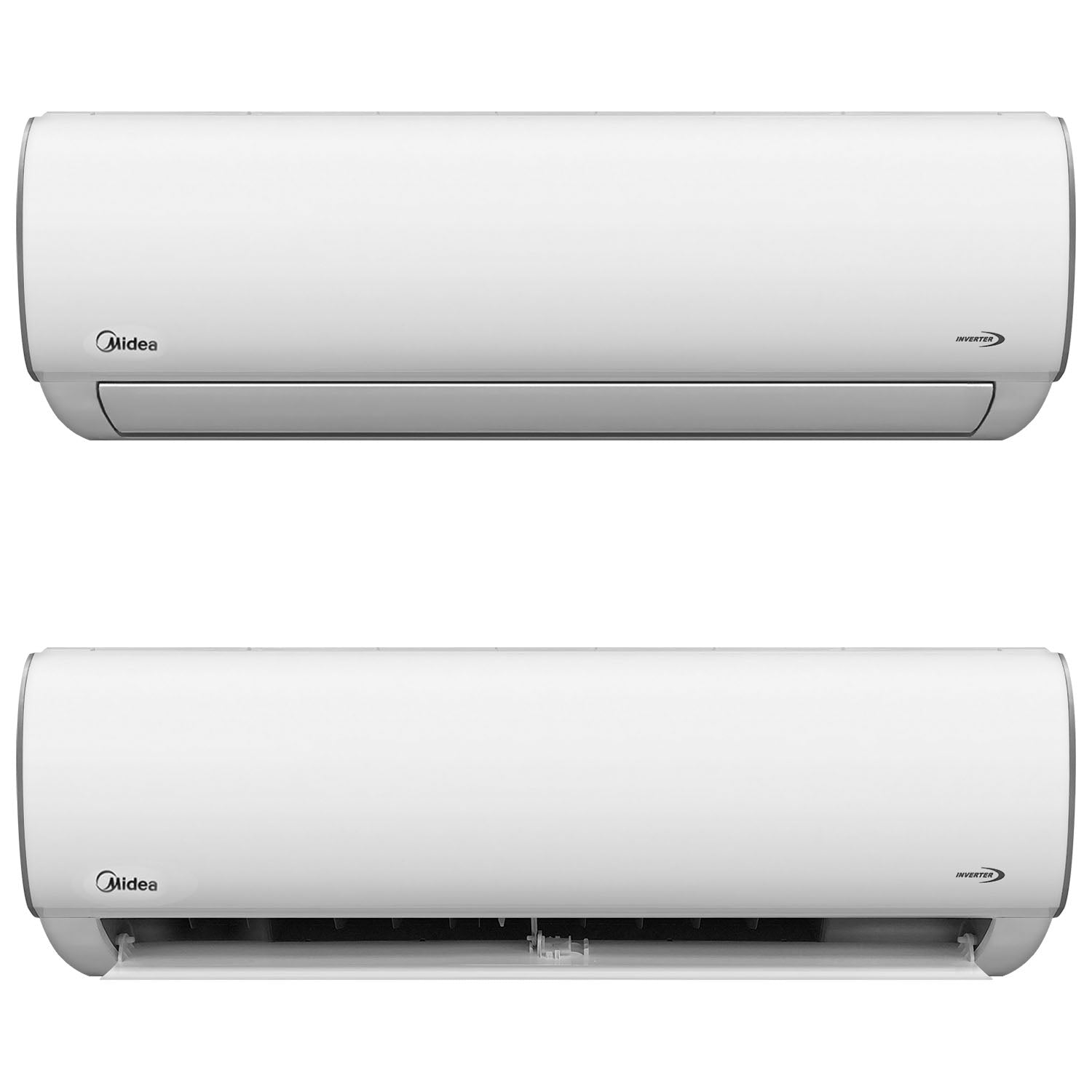

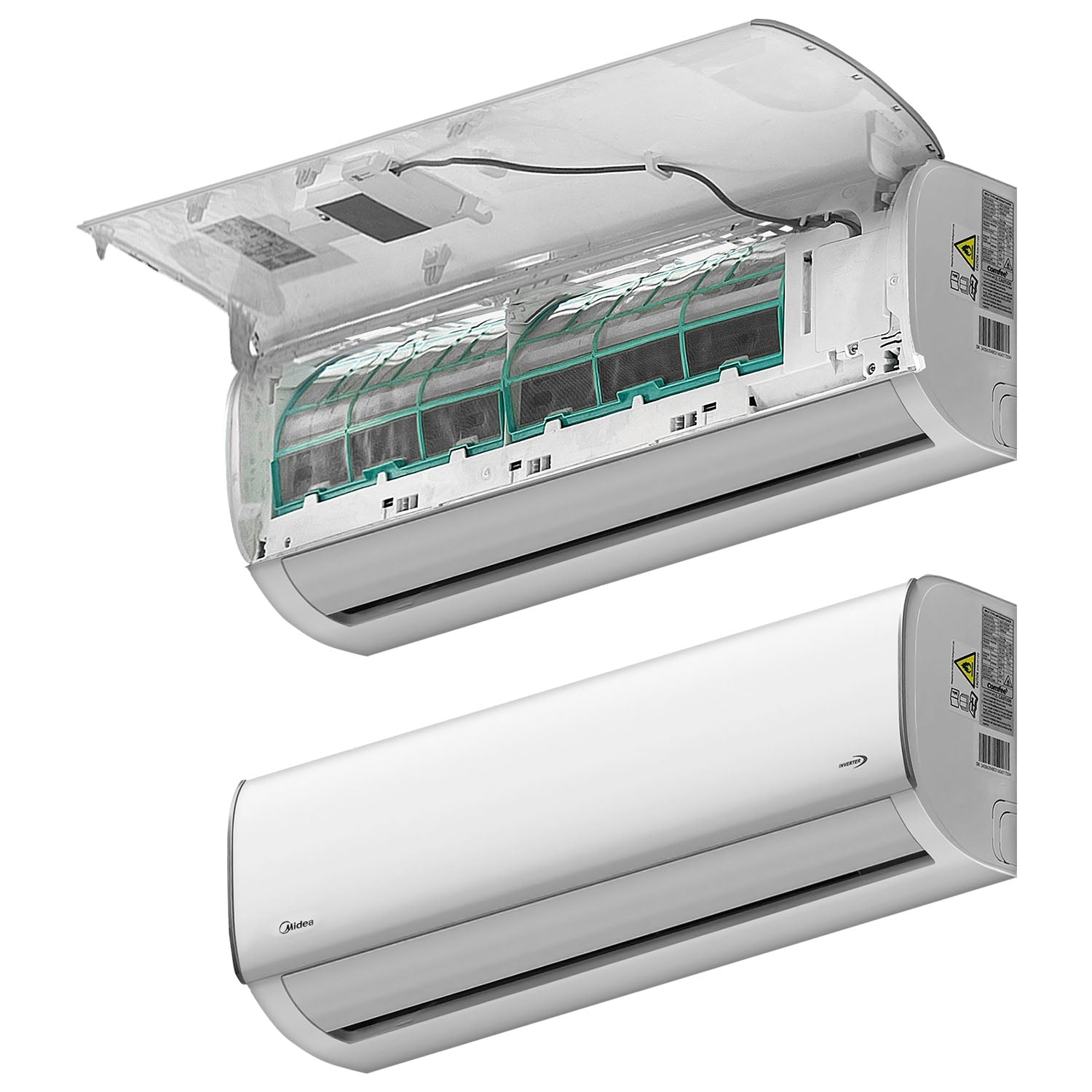

Indoor Unit:

Indoor Fan Motor:

• Input (W): 77W
• Capacitor (uF): 3 uF
• Speed (High/Middle/Low): 1200/1000/800 r/min

Indoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
3. Fin spacing: 1.3mm
4. Fin type (code): Hydrophilic aluminum
5. Tube outside dia. and type: Φ7, Inner groove tube
6. Coil (length x height x width): 780 x 210 x 26.74mm + 780 x 105 x 26.74mm
7. Number of circuits: 4

Indoor air flow (High/Middle/Low): 1050/840/630 m3/h

Indoor noise level (High/Middle/Low): 46/40/34 dB (A)

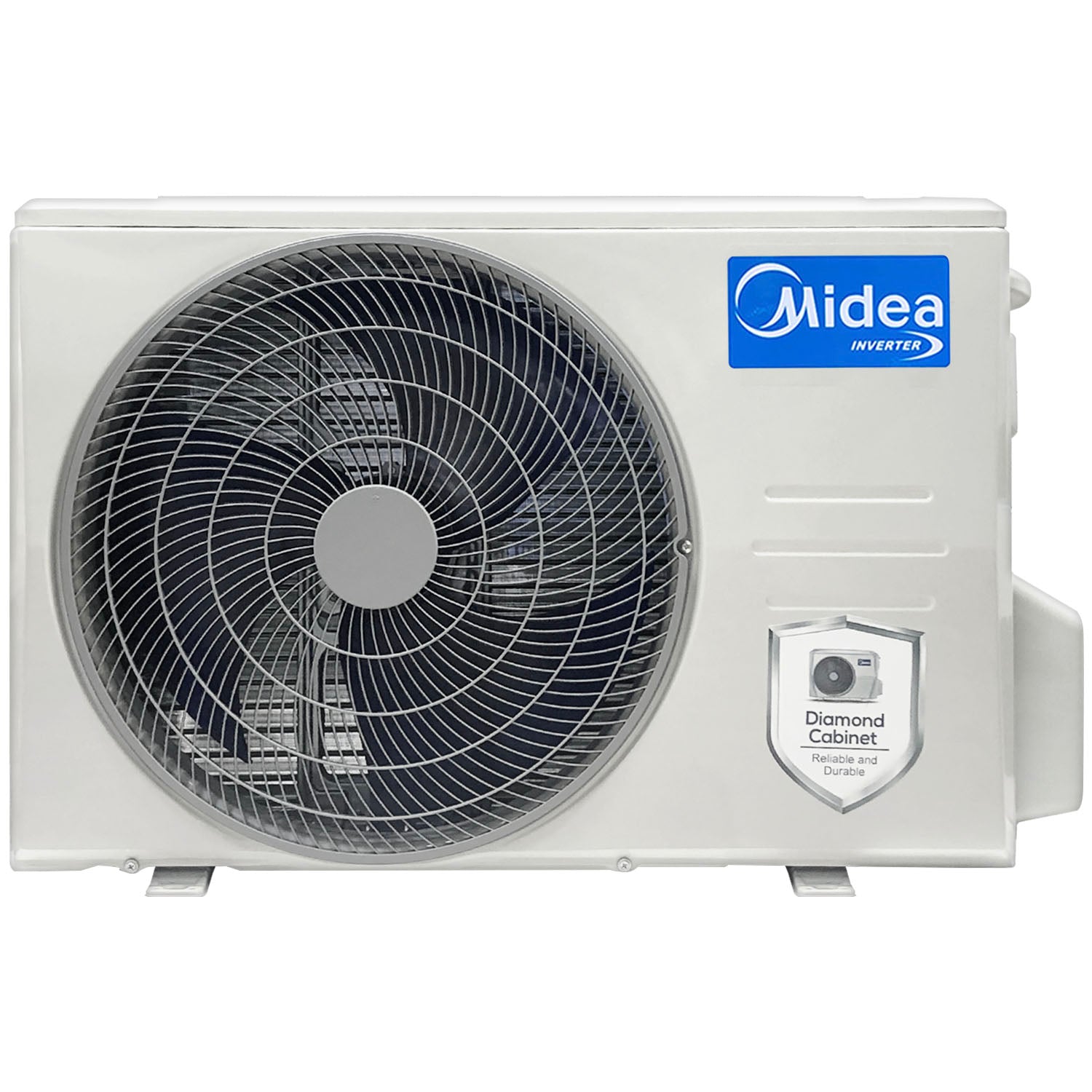

Outdoor Unit:

Outdoor Fan Motor:

• Input (W): 100W
• Capacitor (uF): 0 uf
• Speed: 980/600 r/min

Outdoor Coil:

1. Number of rows: 2
2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
3. Fin spacing: 1.2mm
4. Fin type (code): green anti-corrosion aluminum
5. Tube outside dia. and type: Φ5,Inner groove tube
6. Coil (length x height x width): 875 x 507 x 23.2mm
7. Number of circuits: 4

Outdoor air flow: 3100 m3/h

Outdoor noise level: 56.5 dB (A)

Additional Specs:

Refrigerant Type: R32/0.83 kg

Design Pressure: 4.3/1.7 MPa

Refrigerant Piping:

• Liquid Side / Gas Side: 6.35mm (1/4in) / 15.9mm (5/8in)
• Max. Refrigerant Pipe Length: 30m
• Max. Difference in Level: 20m

Connection Wiring: 3.5m

Plug Type: 2.5 x 3/no-plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• Indoor (Cooling): 17 ~ 32 °C
• Outdoor (Cooling): 0 ~ 50 °C

Application Area (Cooling Standard): 28 ~ 41m²

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• • Product Dimension: 1040 x 220 x 327mm (40.9” x 8.7” x 12.9”)
  • Packing Dimension: 1120 x 405 x 315mm (44.1” x 15.9” x 12.4”)
  • Net Weight: 13.6kg
  • Gross Weight: 16.9kg

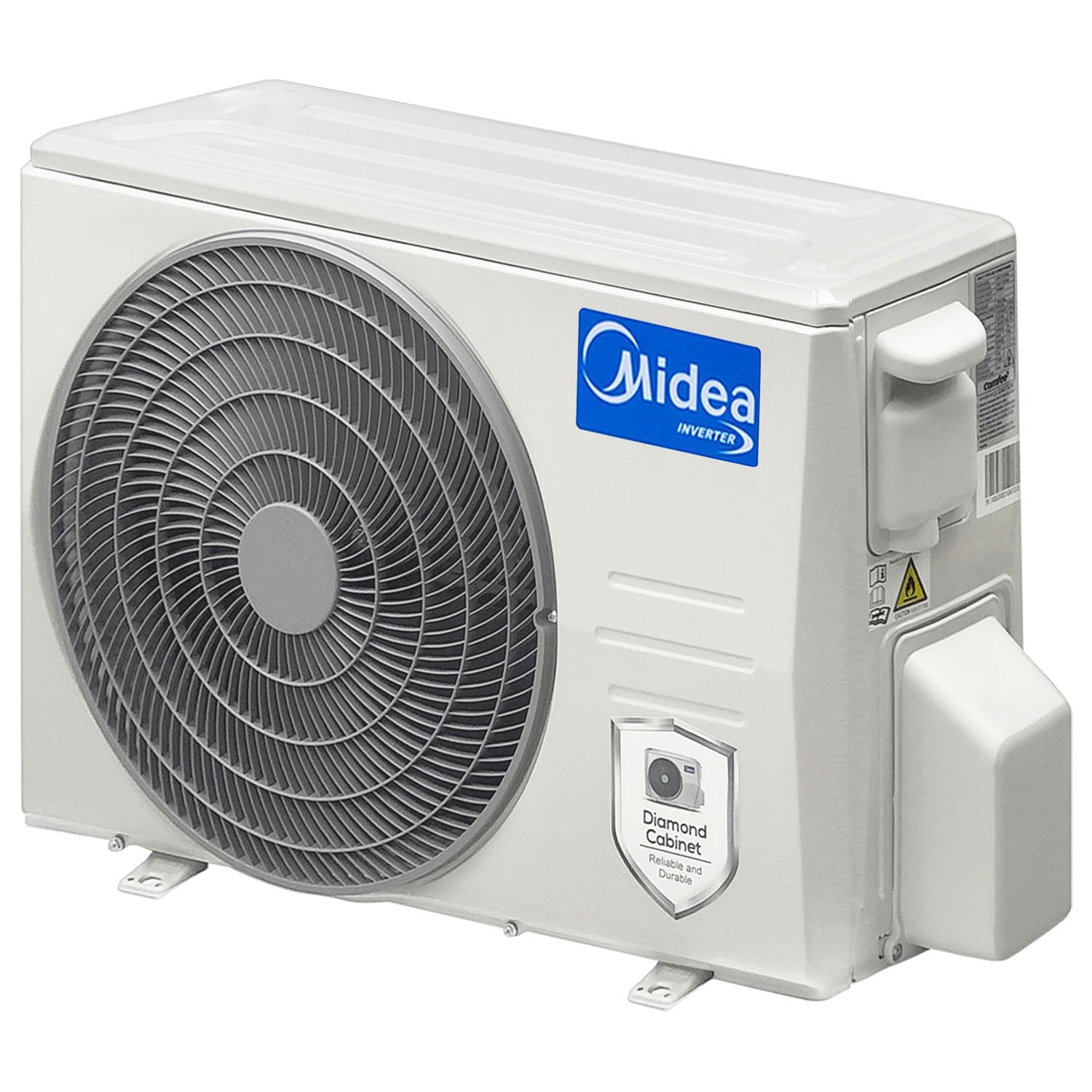

Outdoor Unit:

• Product Dimension: 805 x 330 x 554mm (31.7” x 13” x 21.8”)
• Packing Dimension: 915 x 370 x 615mm (36” x 14.6” x 24.2”)
• Net Weight: 29.6kg
• Gross Weight: 32.3kg

Packing Contents:

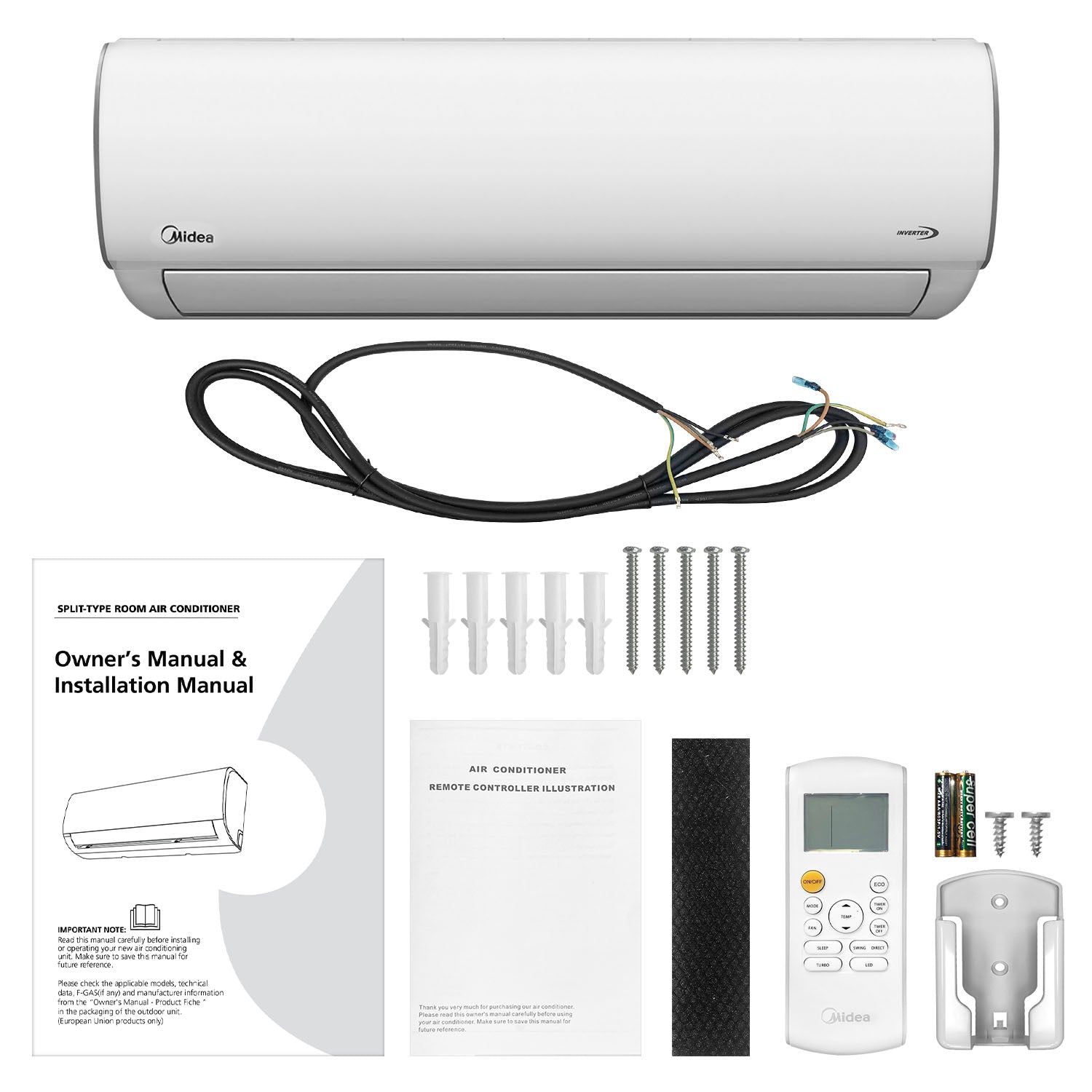

24k BTU Indoor Unit – x1

• Electric Wire – x1

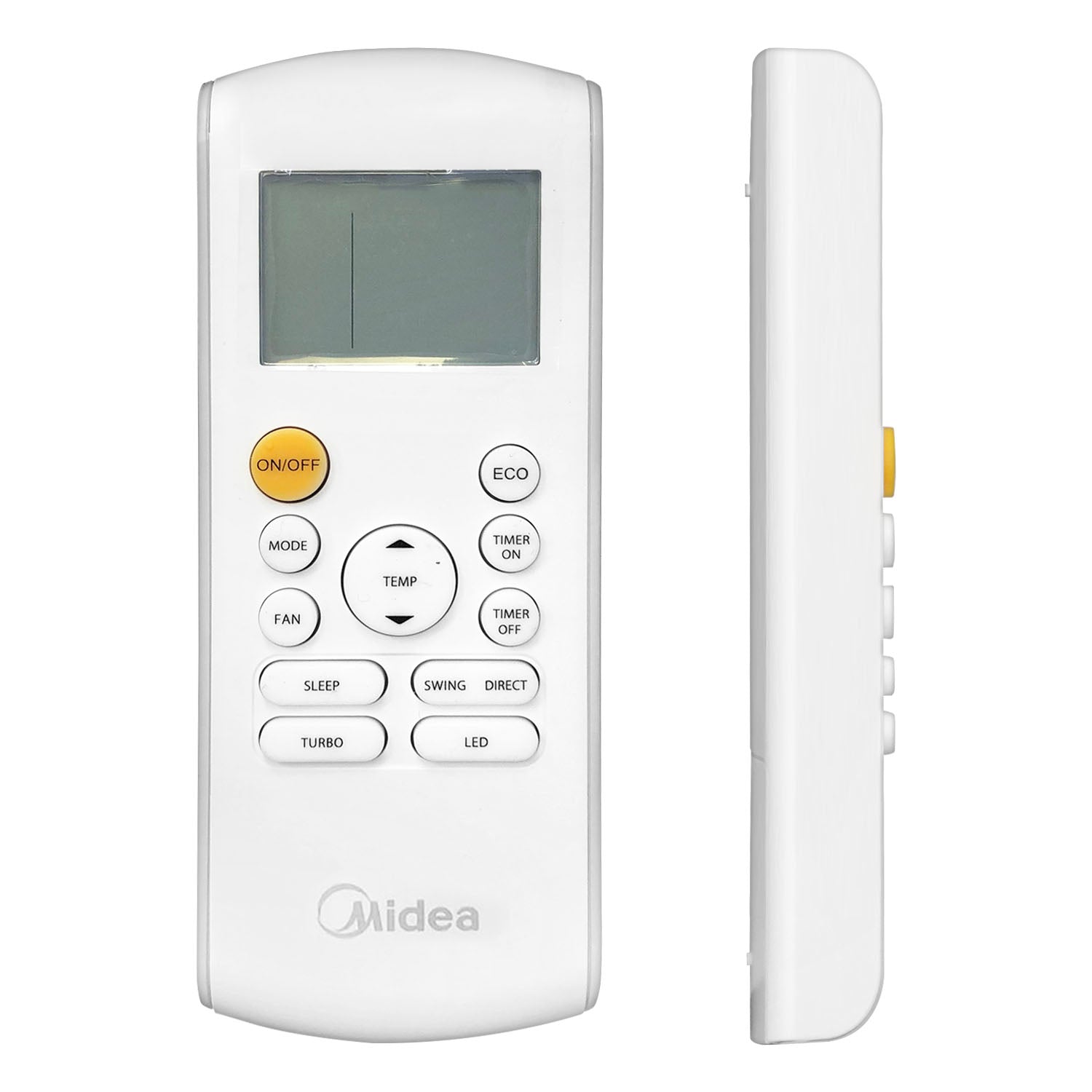

• Remote Control – x1
• AA Battery – x2
• Remote Holder (Wall-Mount) with 2 Screws – x1
• Screws – x5
• Wall Plugs – x5
• Small Filter – x1
• Remote Controller User Manual – x1
• User Manual – x1

24k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 5/8” Insulated Copper Tube – x1
• Sealing Clay – x1
• Wall Sleeve – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
