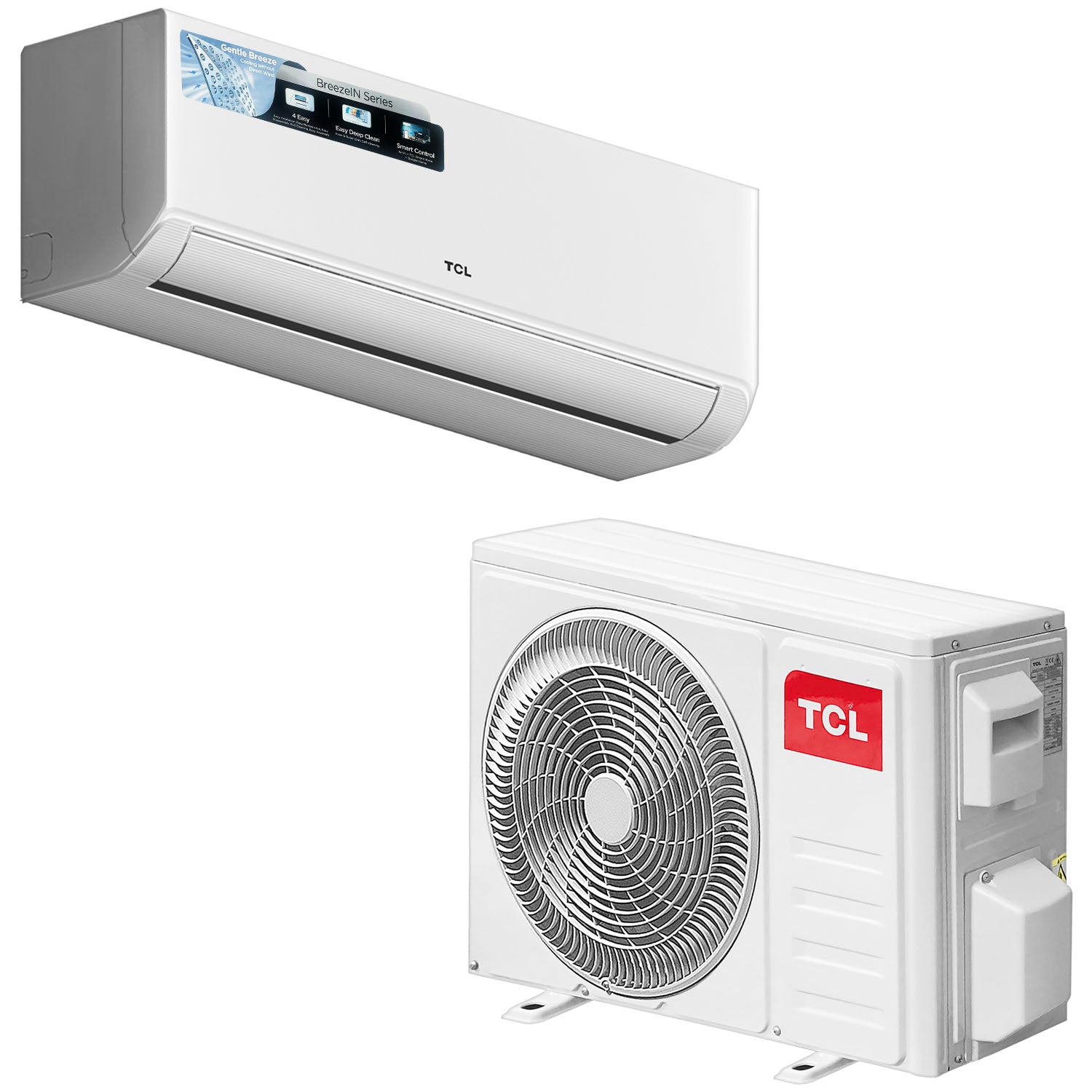

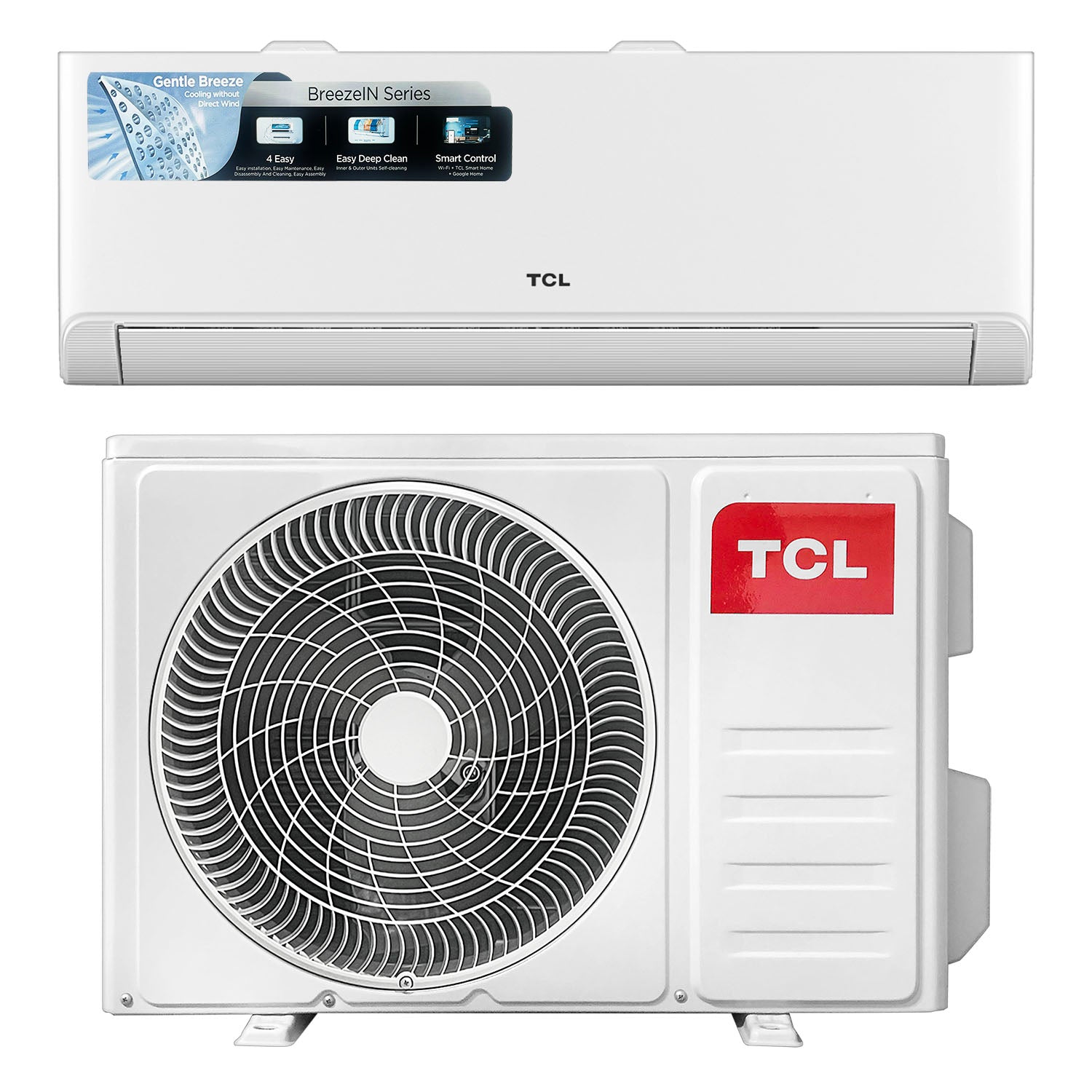

TCL - Air Conditioner (9000BTU)
Inverter – BreezeIN Series
Brand: TCL
Model: TAC-10CSD
Capacity: 9000BTU
Type: Cooling Only
Control type: Remote & App
Rated Cooling Capacity (Btu/h): 9000 (2730~9553)
Rated Cooling Capacity (W): 2640 (800-2800)
CSPF (Btu/h.w; W/W): 5.317

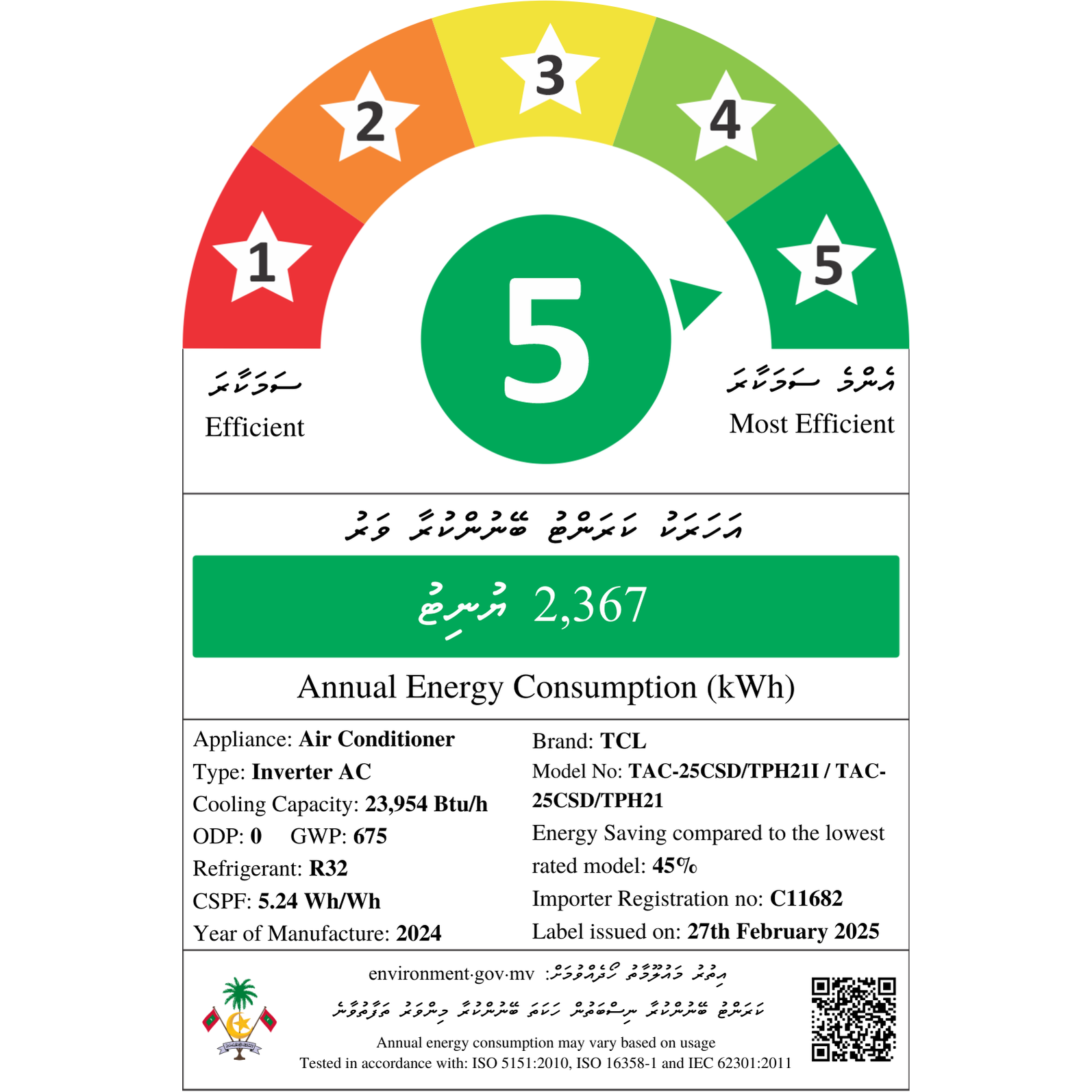

Star Rating: 5 Star
Moisture removal (Liters/h): 0.8
Indoor noise level at cooling (dB (A)):
Outdoor noise level (dB (A)): 51
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Power Supply:
Power Supply: 220-240V~/50Hz/1P
Voltage Range: 165 ~ 265V
Rated current (Cooling): 3.9 (1~6) V
Rated input (Cooling): 850 (220 ~ 1250) W
Max current: 6 A
Max input: 1250 W
Fan System:
Indoor air circulation Cooling (m3/h): 550
Indoor fan type: Cross Flow
Outdoor fan type: Propeller Fan
Additional Specs:
Refrigerant/Charge: R32/0.29Kg
Compressor (Type): Rotary
Connecting Pipe:
-
Gas: Ø9.52 (3/8'')
-
Liquid: Ø6 (1/4'')
Connecting Wiring (Size x Core number): 4 x 1.0
Suitable area: 9-16 m2
Dimension & Weight:
Width x Depth x Height

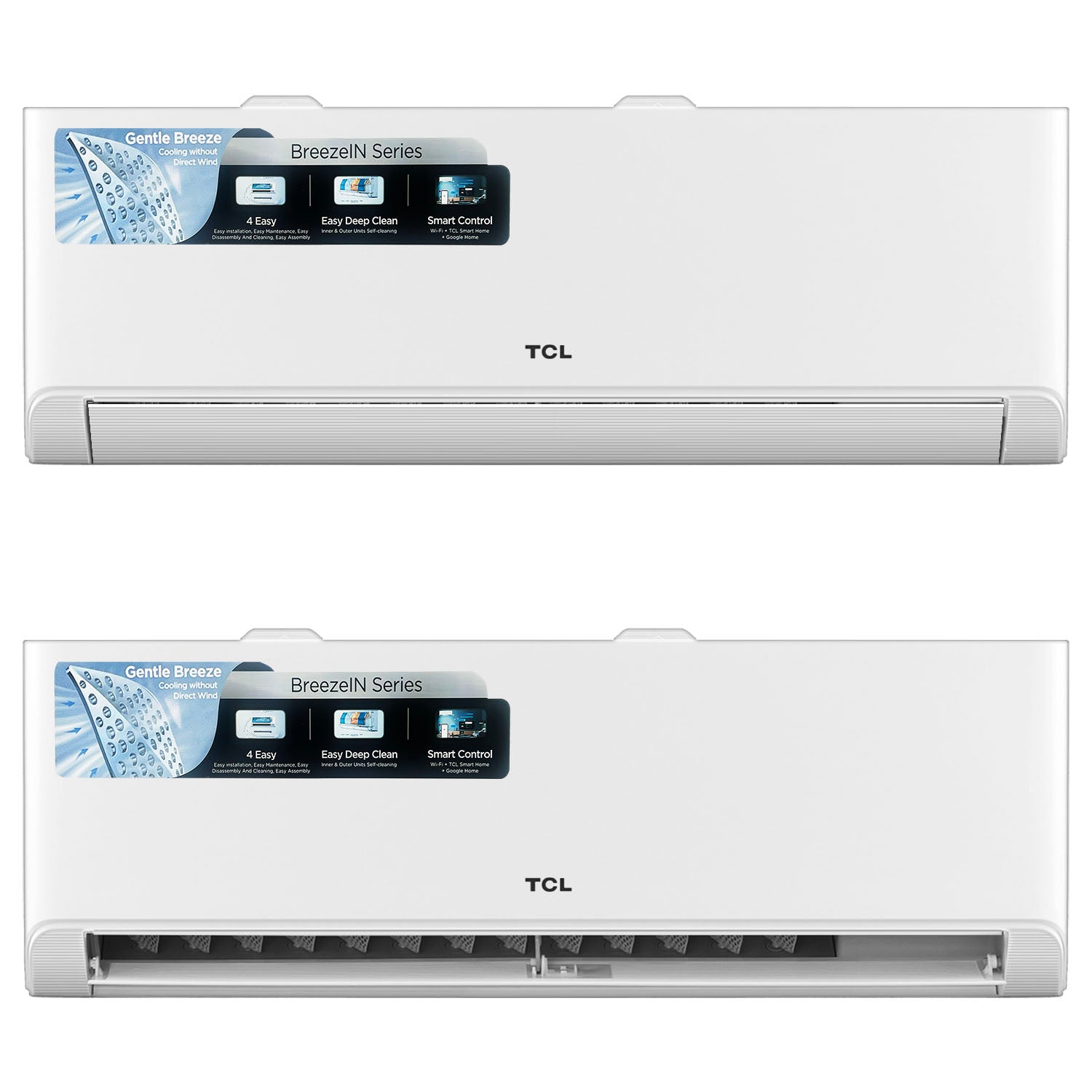

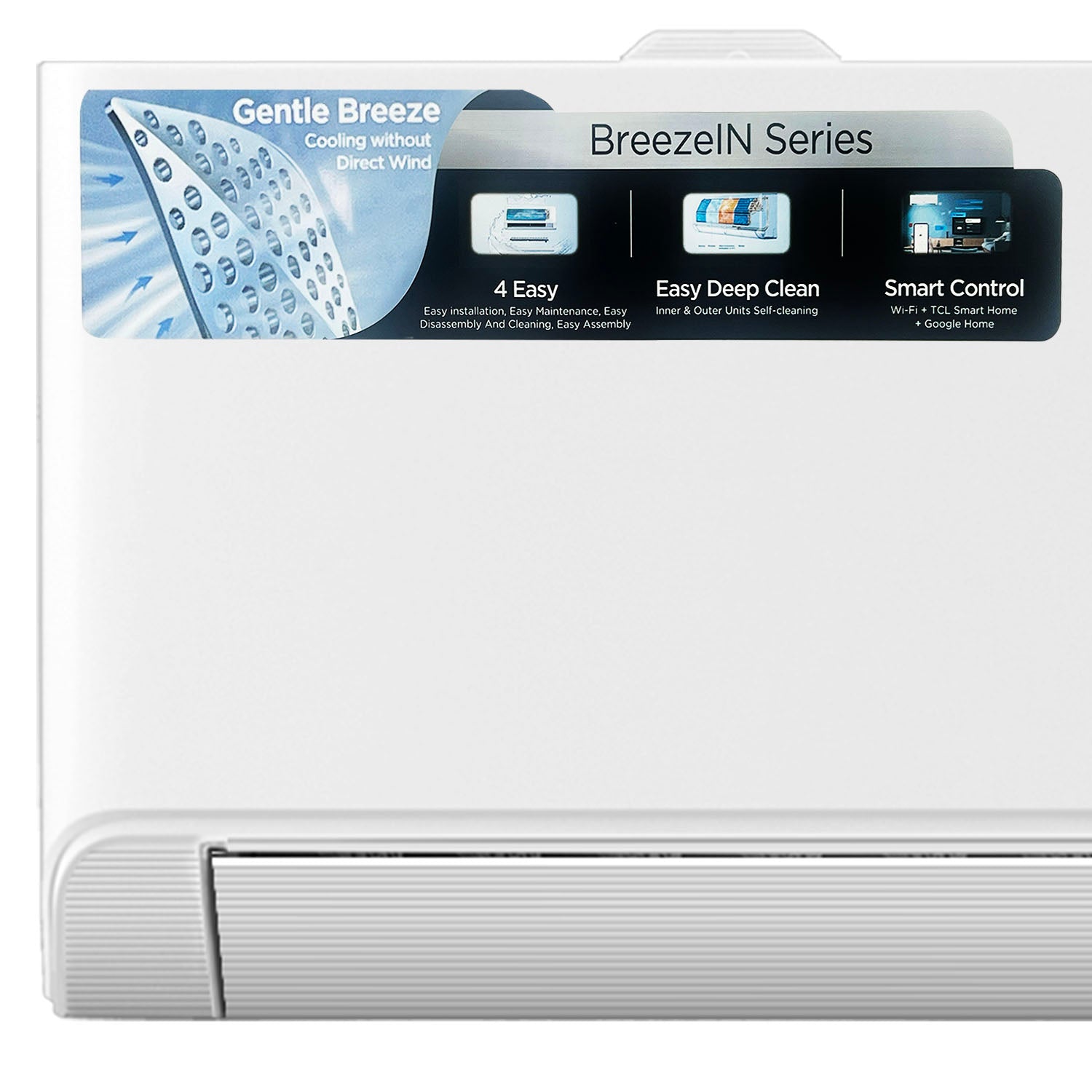

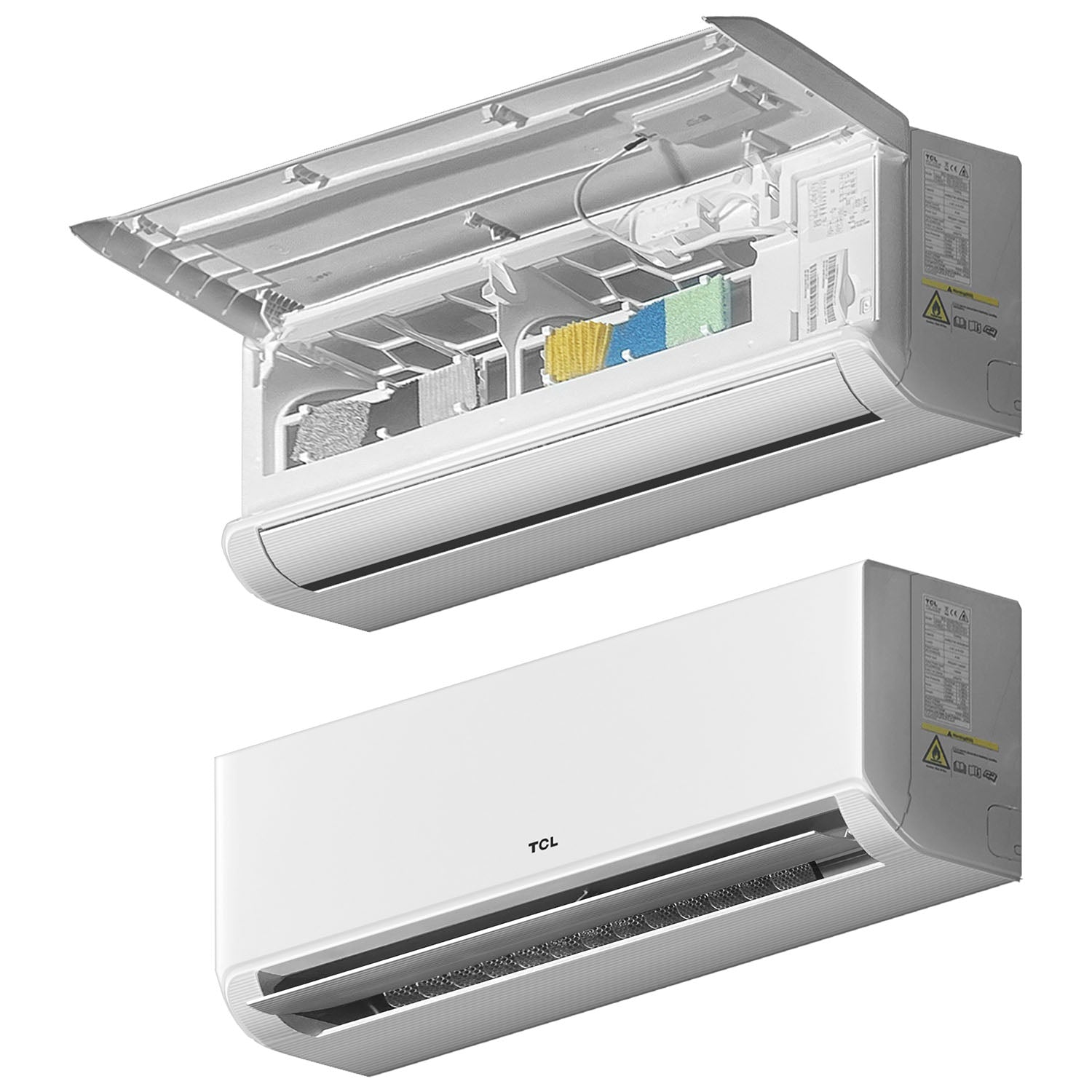

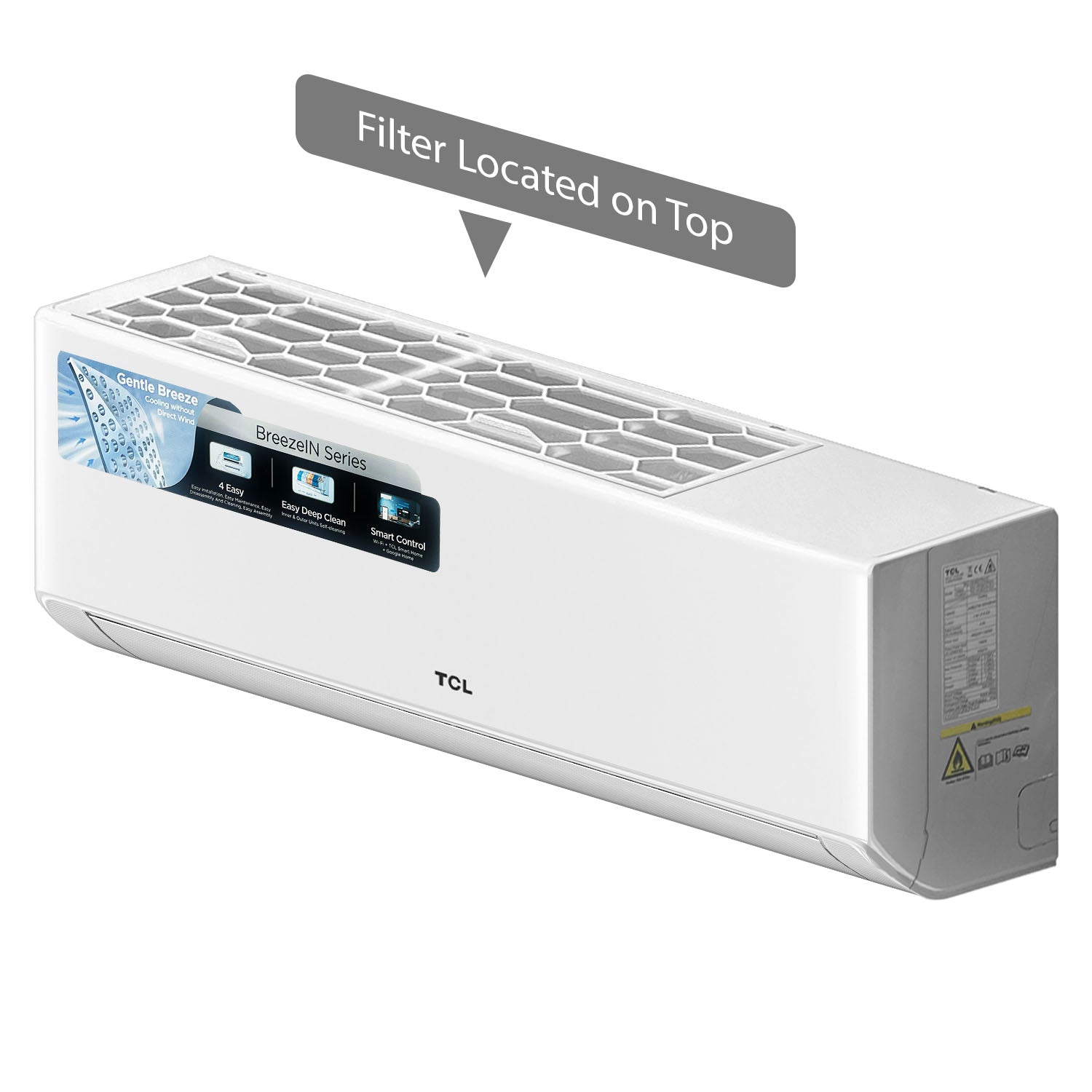

Indoor Unit:
-
Product Dimension: 788 x 192 x 275mm (31” x 7.6” x 10.8”)
-
Packing Dimension: 860 x 265 x 345mm (33.9” x 10.4” x 13.6”)
-
Net Weight: 7.5kg
-
Gross Weight: 9.5kg

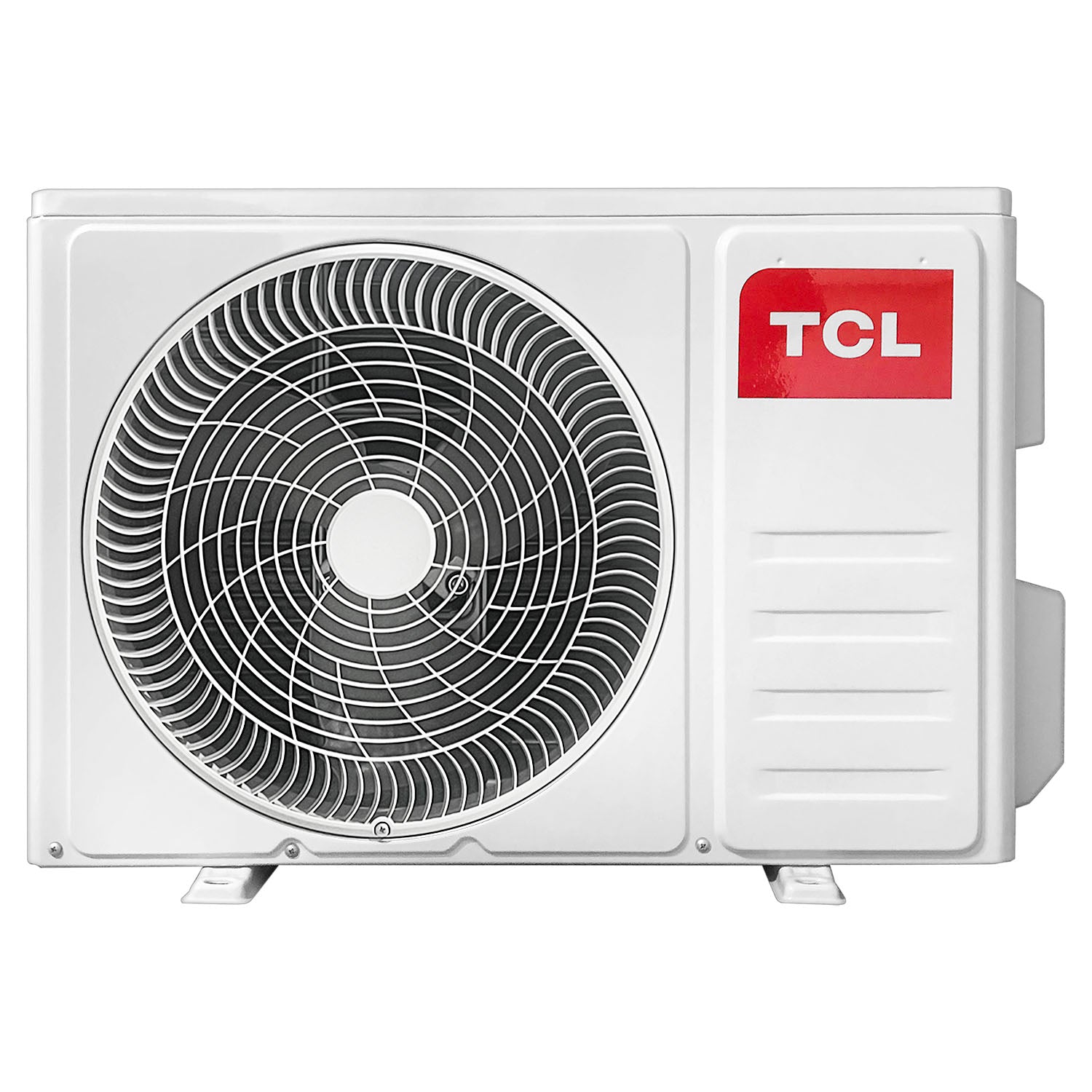

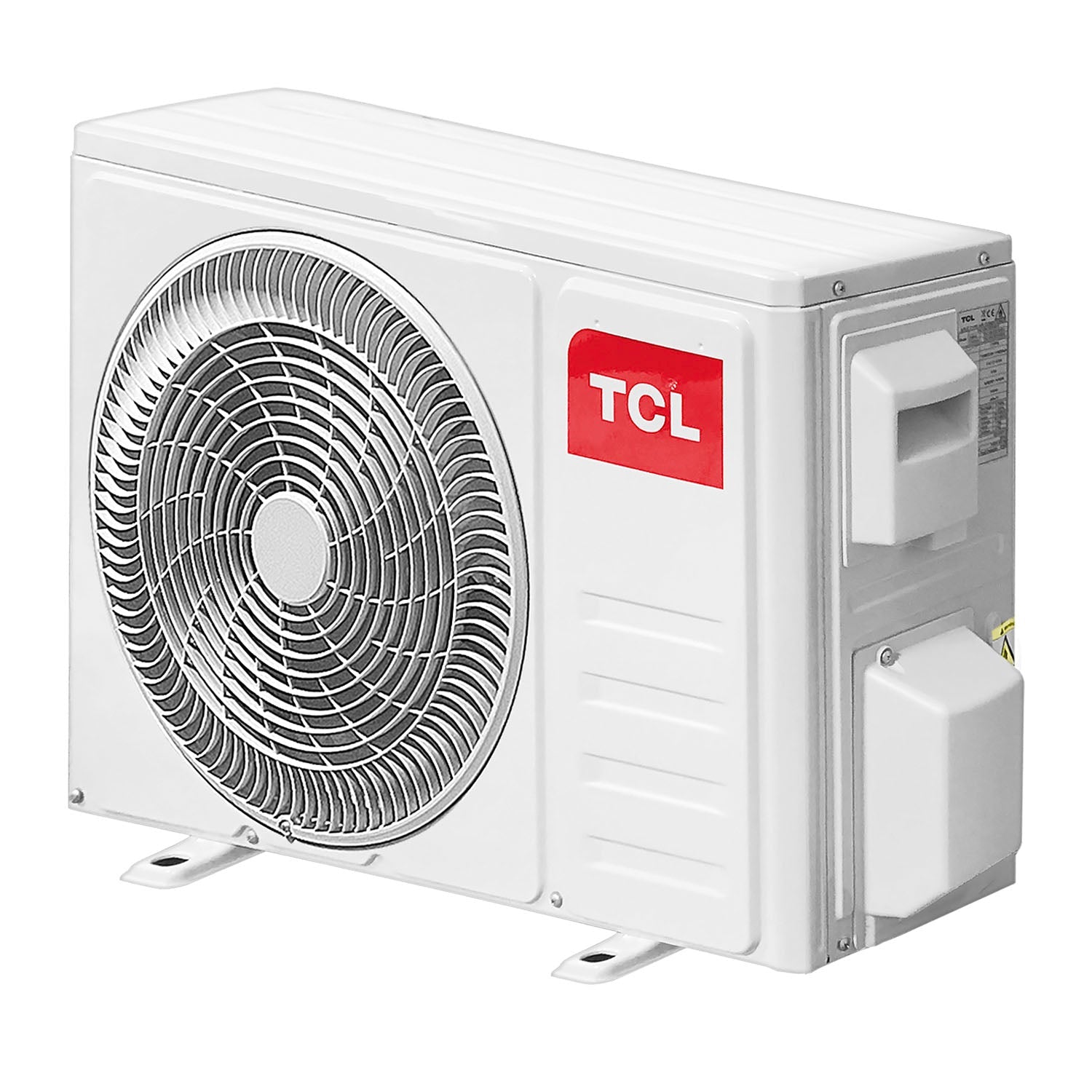

Outdoor Unit:
-
Product Dimension: 722 x 276 x 459mm (28.4” x 10.9” x 18.1”)
-
Packing Dimension: 765 x 310 x 481mm (30.1” x 12.2” x 18.9”)
-
Net Weight: 20kg
-
Gross Weight: 23kg

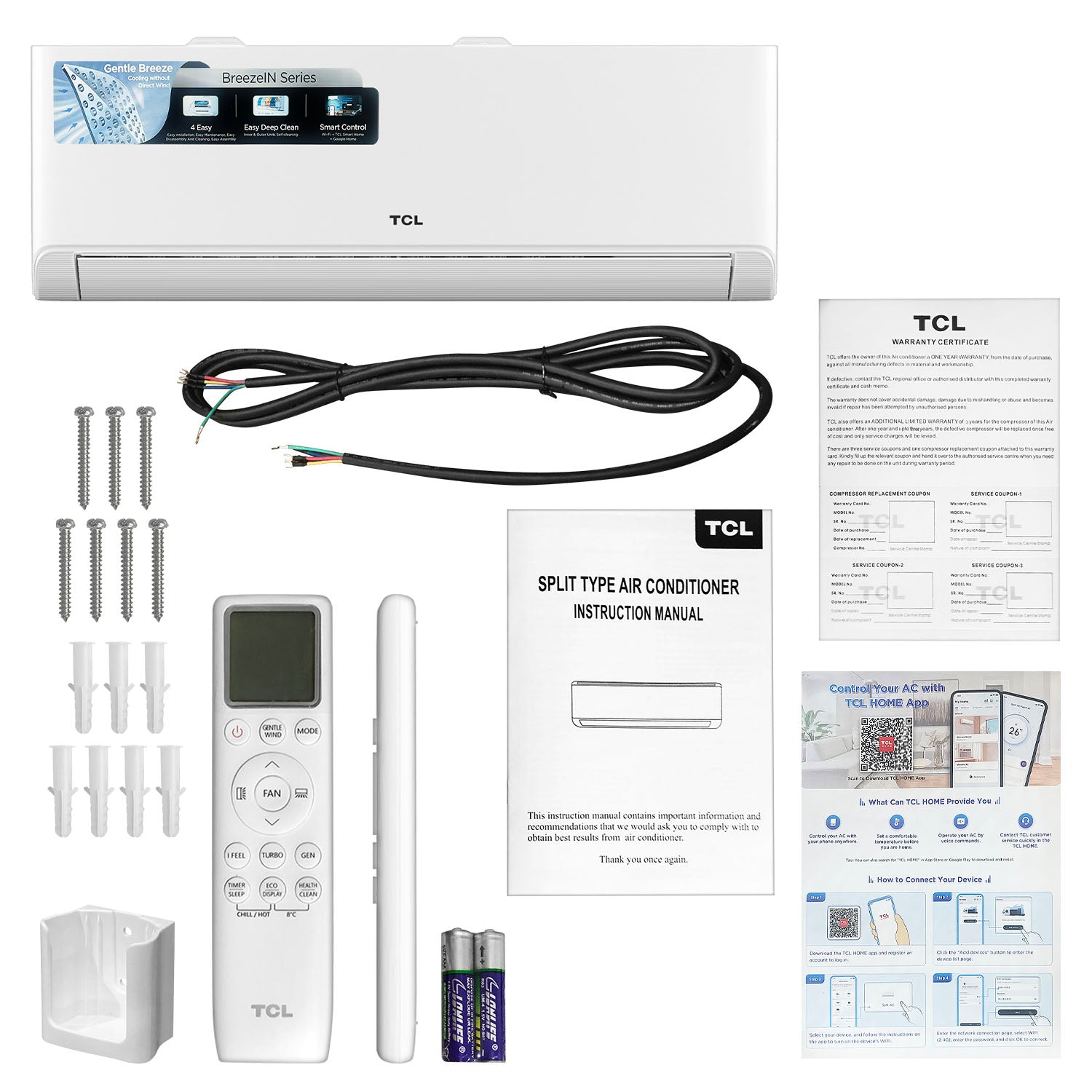

Packing Contents:
9k BTU Indoor Unit – x1
- 12ft. Electric wire – x1

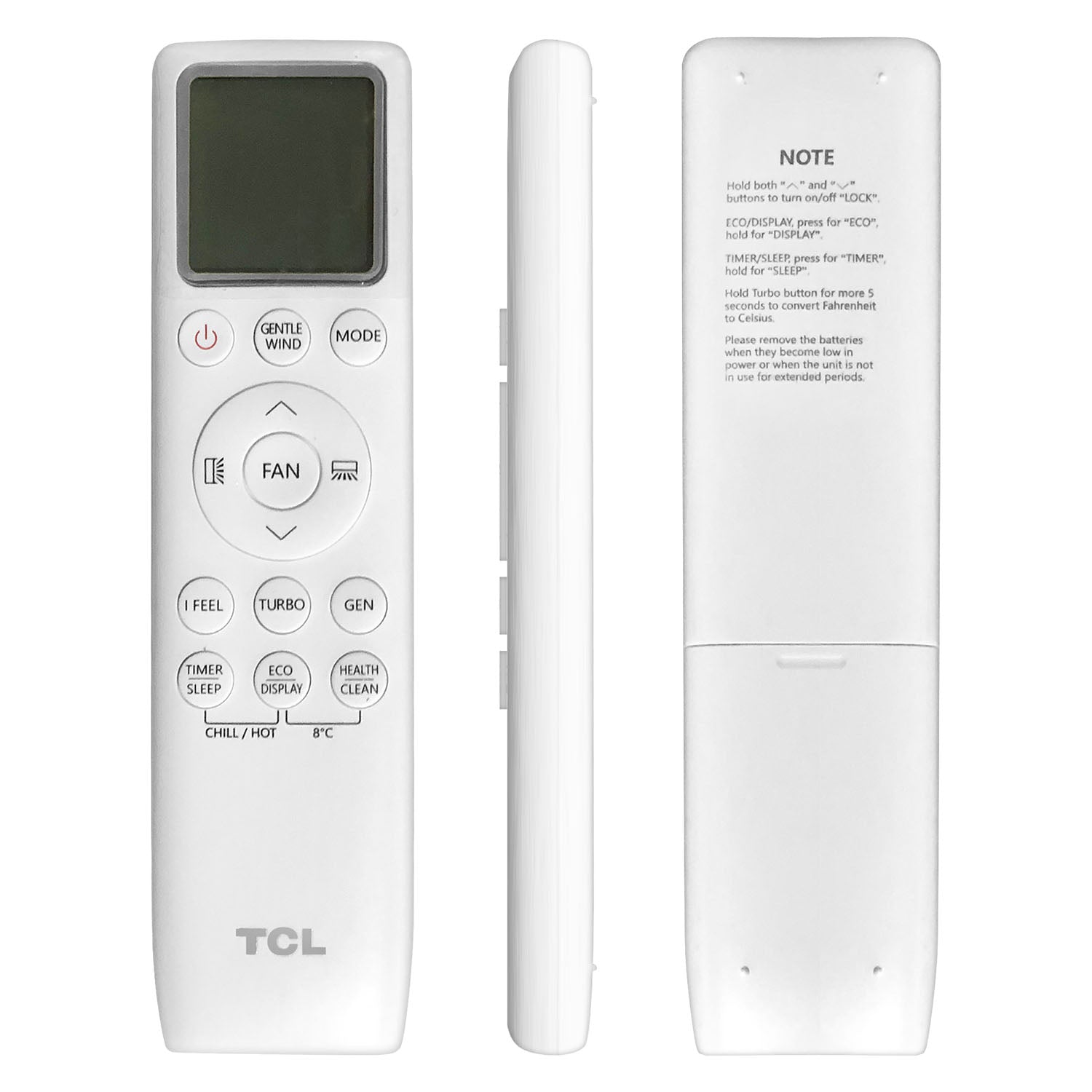

- Remote Control – x1
- AAA Battery – x2
- Wall Mount Remote Holder – x1
- Screws – x7
- Wall Plugs – x7
- App Control Manual – x1
- Warranty Certificate – x1
- User Manual – x1

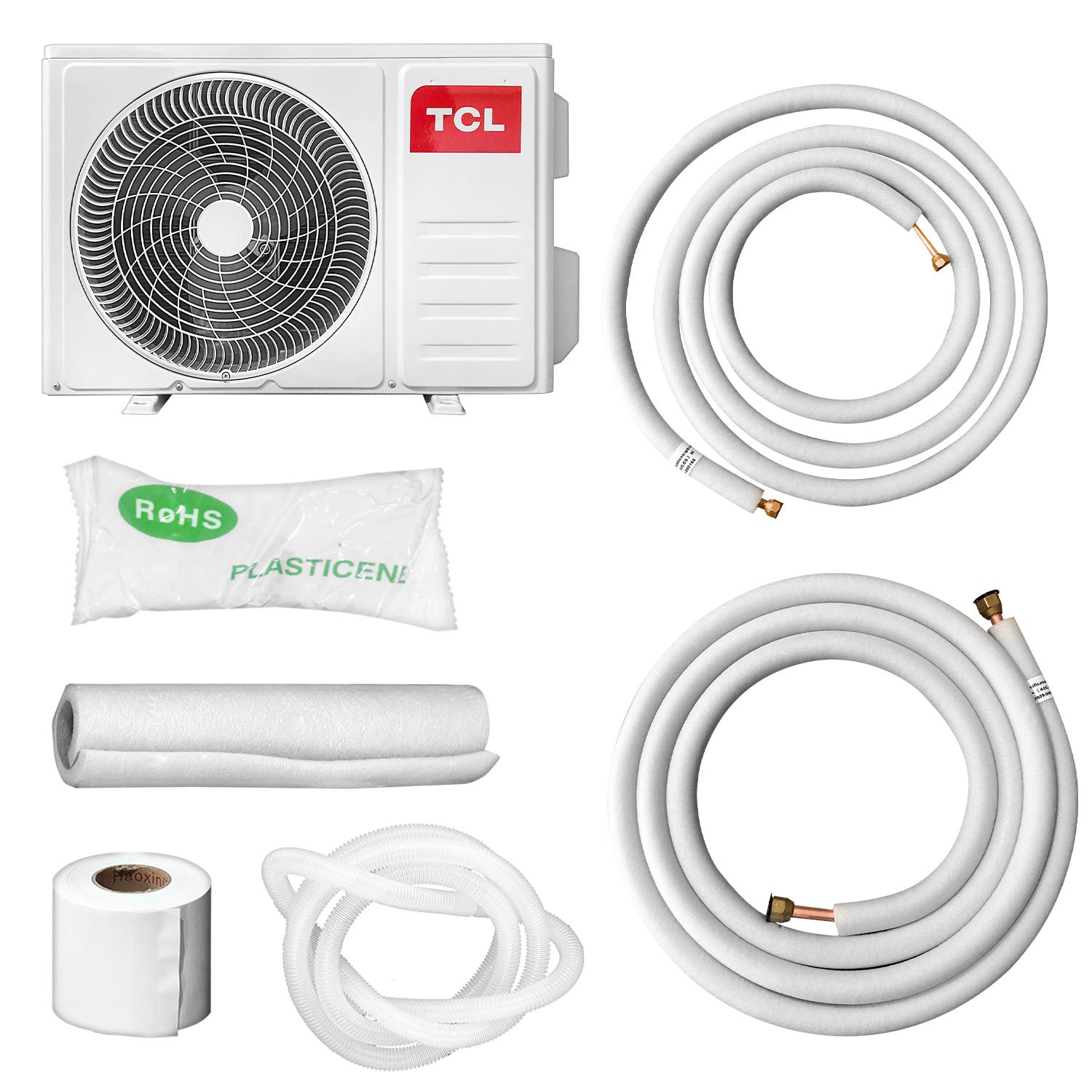

9k BTU Outdoor Unit – x1
- 1/4" Copper Tube (13ft.) – x1
- 3/8” Copper Tube (13ft.) – x1
- Drainage Hose – x1
- Wrapping Roll – x1
- Insulation Sheath – x1
- Plasticene RoHS – x1
