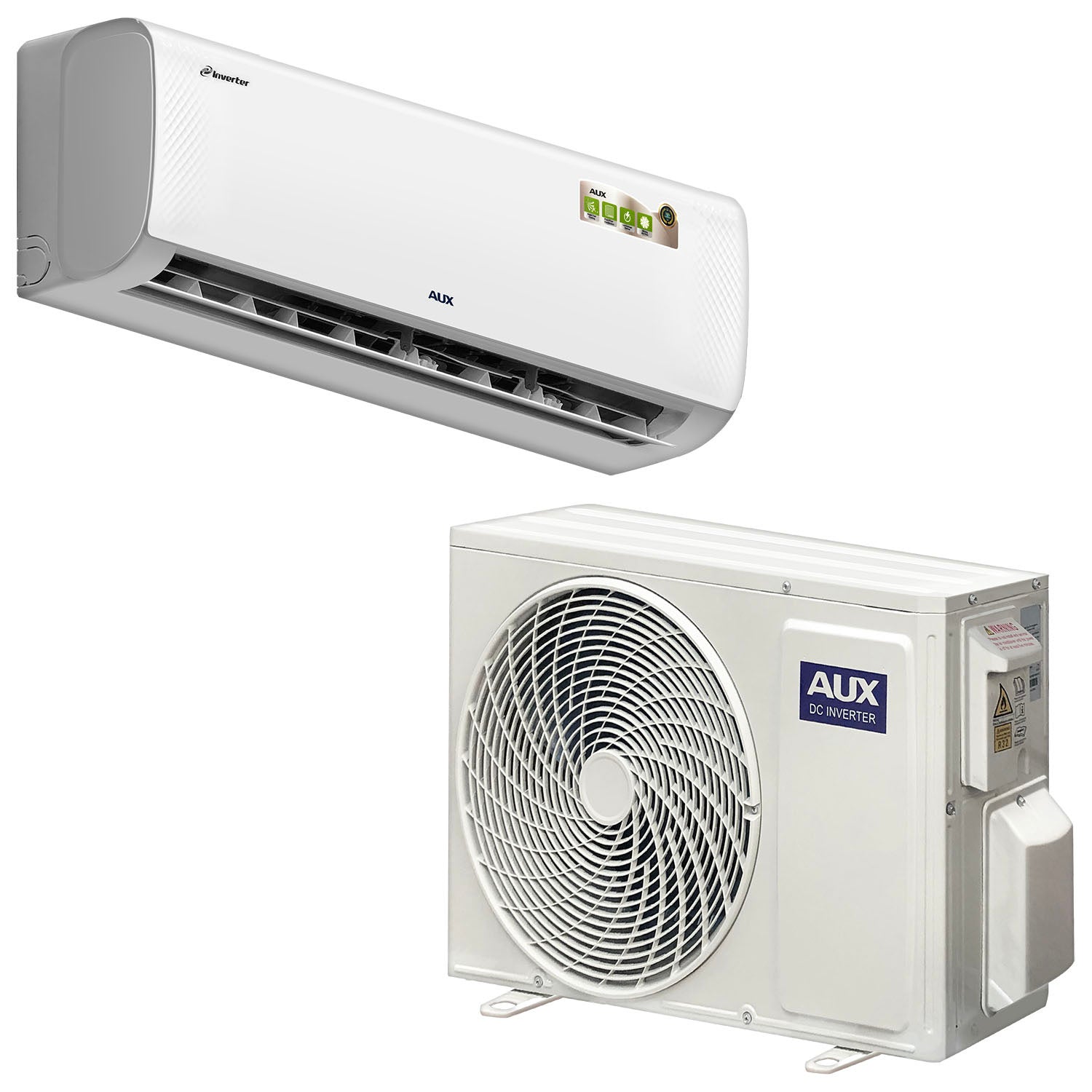

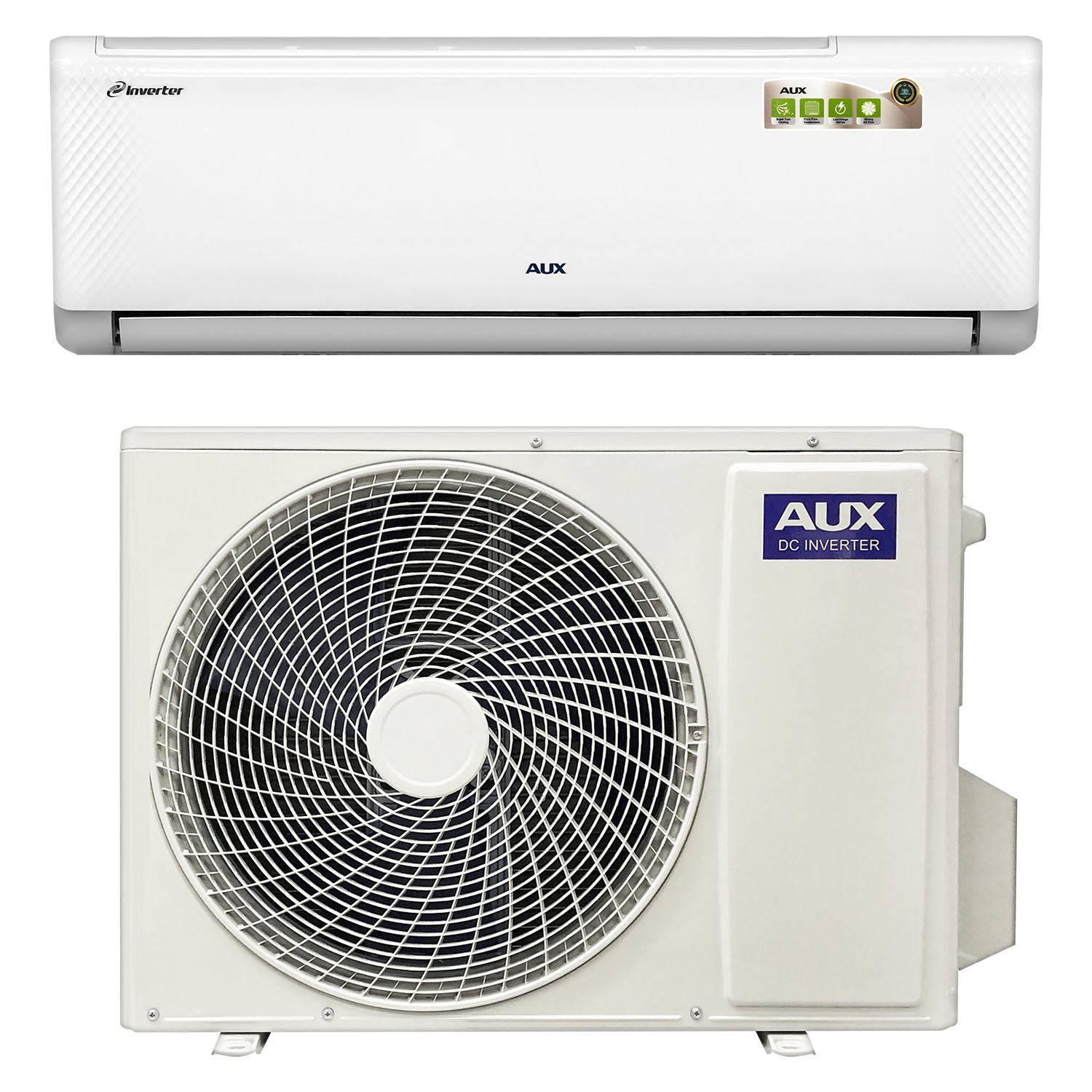

AUX 18000 BTU AC INVERTER

Aux – Air Conditioner (18000BTU)

Inverter – Wi-Fi Ready

Brand: Aux

Model: MASDC18QGR1-Q-Smart

Capacity: 18000BTU

Color: White

Cooling:

• Rated Capacity: 5300W (1300 – 5300W)
• Rated Power Consumption: 1760W (240 – 1900W)
• Rated Running Current: 8.3A (2.3 – 9A)

Max. Input Power: 1900W

Max. Input Current: 9A

EER Cooling: 3.01 W/W

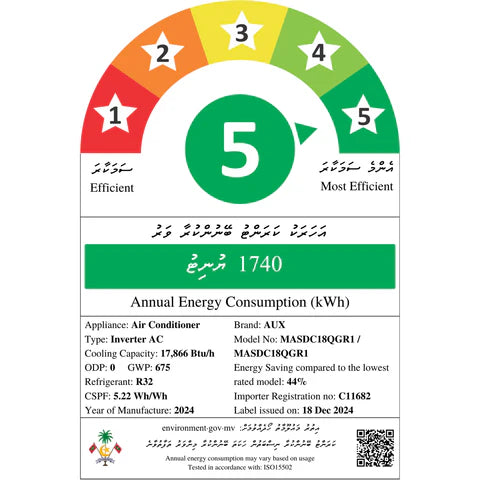

EU Energy Rating: A++

Power Supply Source: 208-230V/60Hz & 220-240V/50Hz

Refrigerant: R32

Refrigerant charged: 690g

Max. Discharge Pressure: 4.3 Mpa

Max. Suction Pressure: 2.5 Mpa

Air Flow Volume: 850 m3/h

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

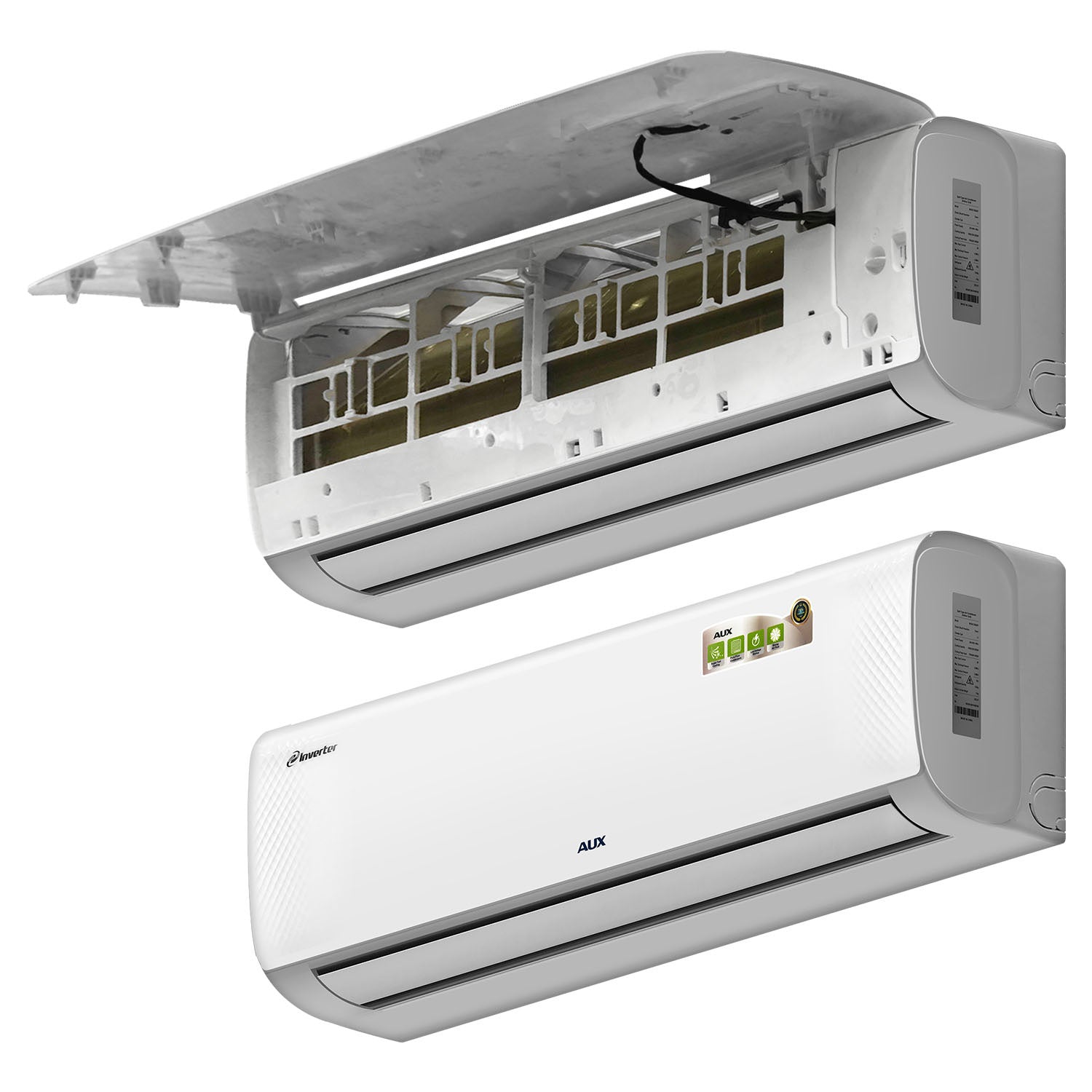

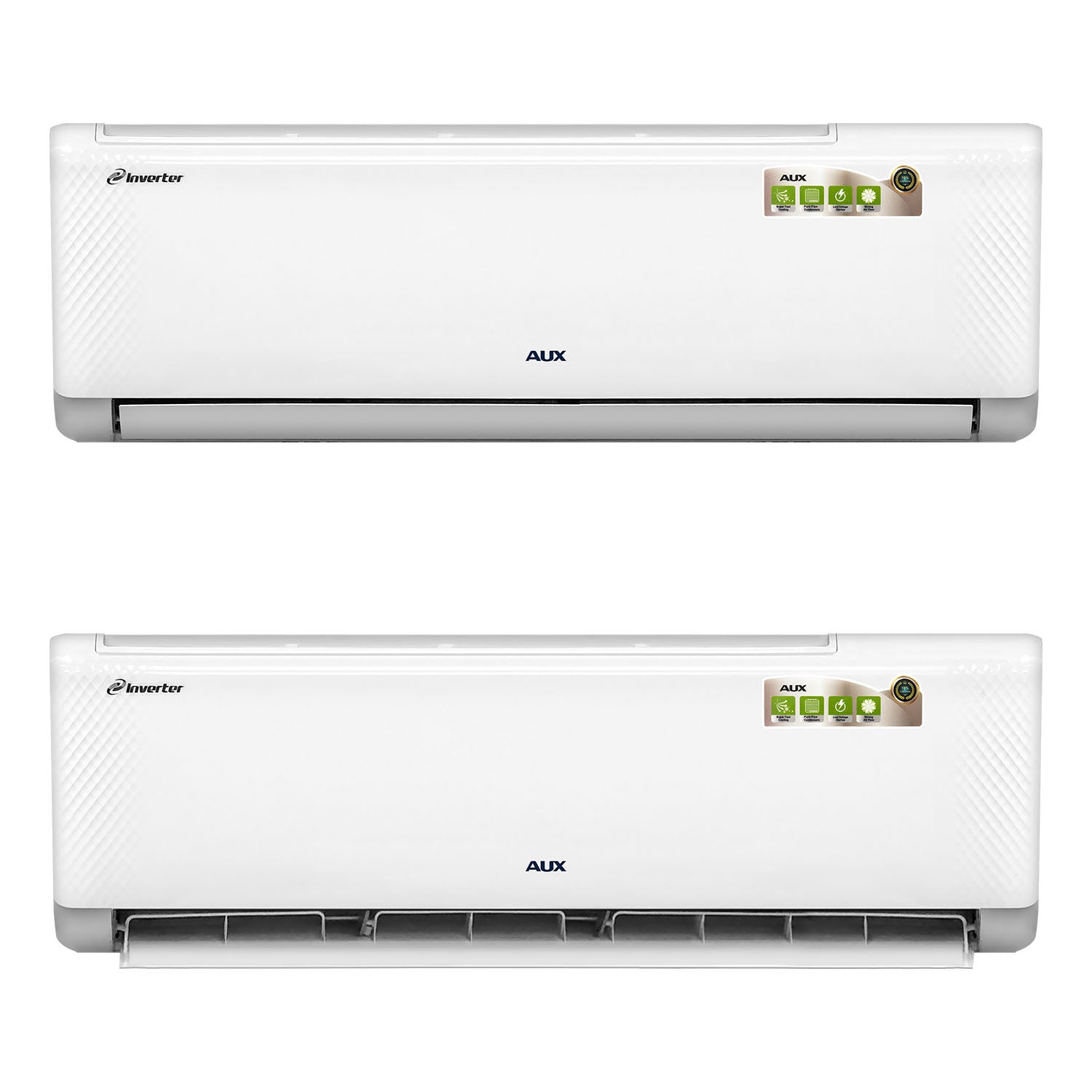

Indoor Unit:

Indoor Noise Level: 47 dB(A)

Evaporator:

• Rows: 2
• Tube pitch: 19.05
• Tube Material: screws inside
• Tube Thickness: 0.2mm
• Tube Quantity: 17
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin Thickness: 0.095mm
• Fin spacing: 1.3mm

Fan System:

• Type: Crossflow
• Material: AS

Connect pipe (length): 3m

Stop Valve:

• Liquid valve: Dg4
• Gas valve: Dg10

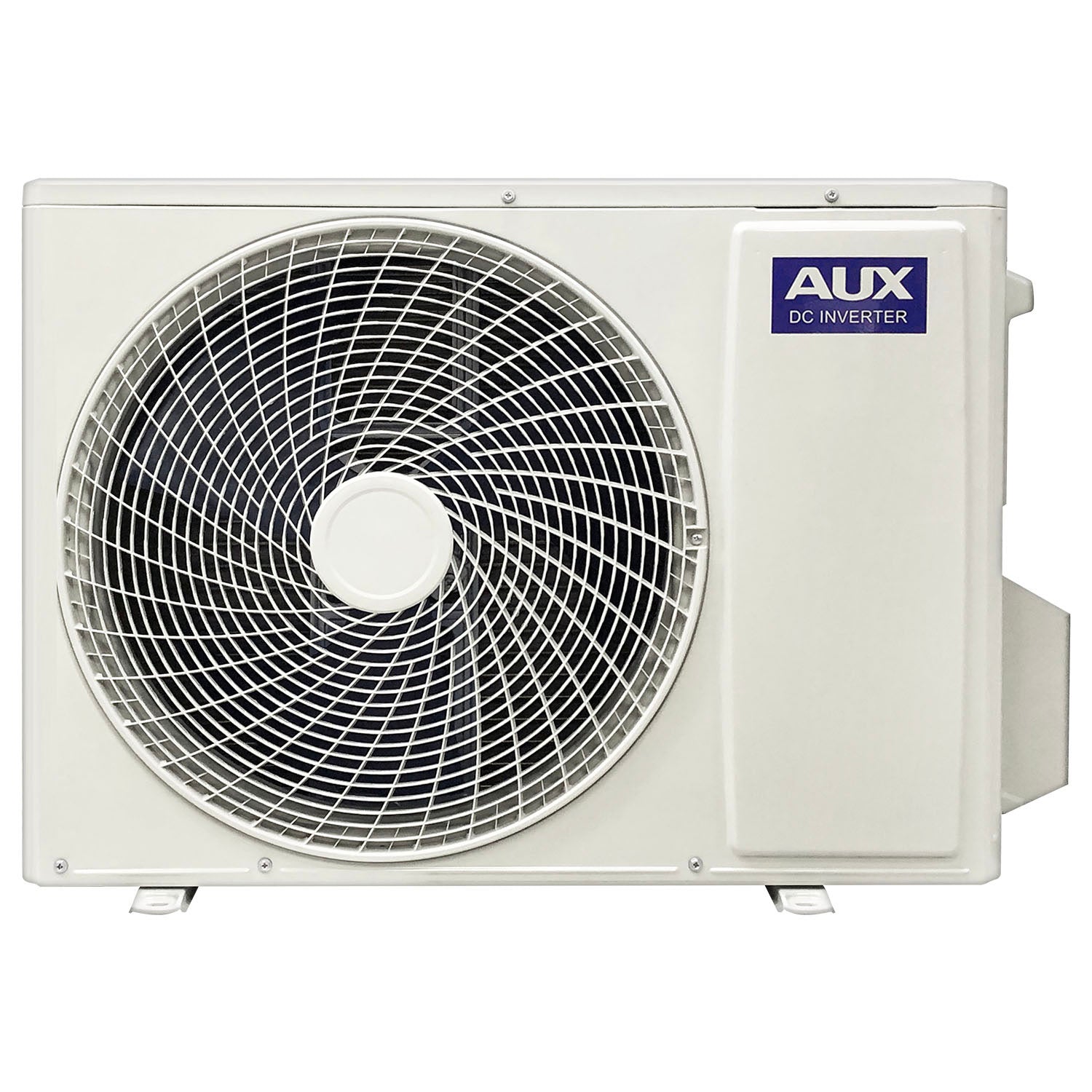

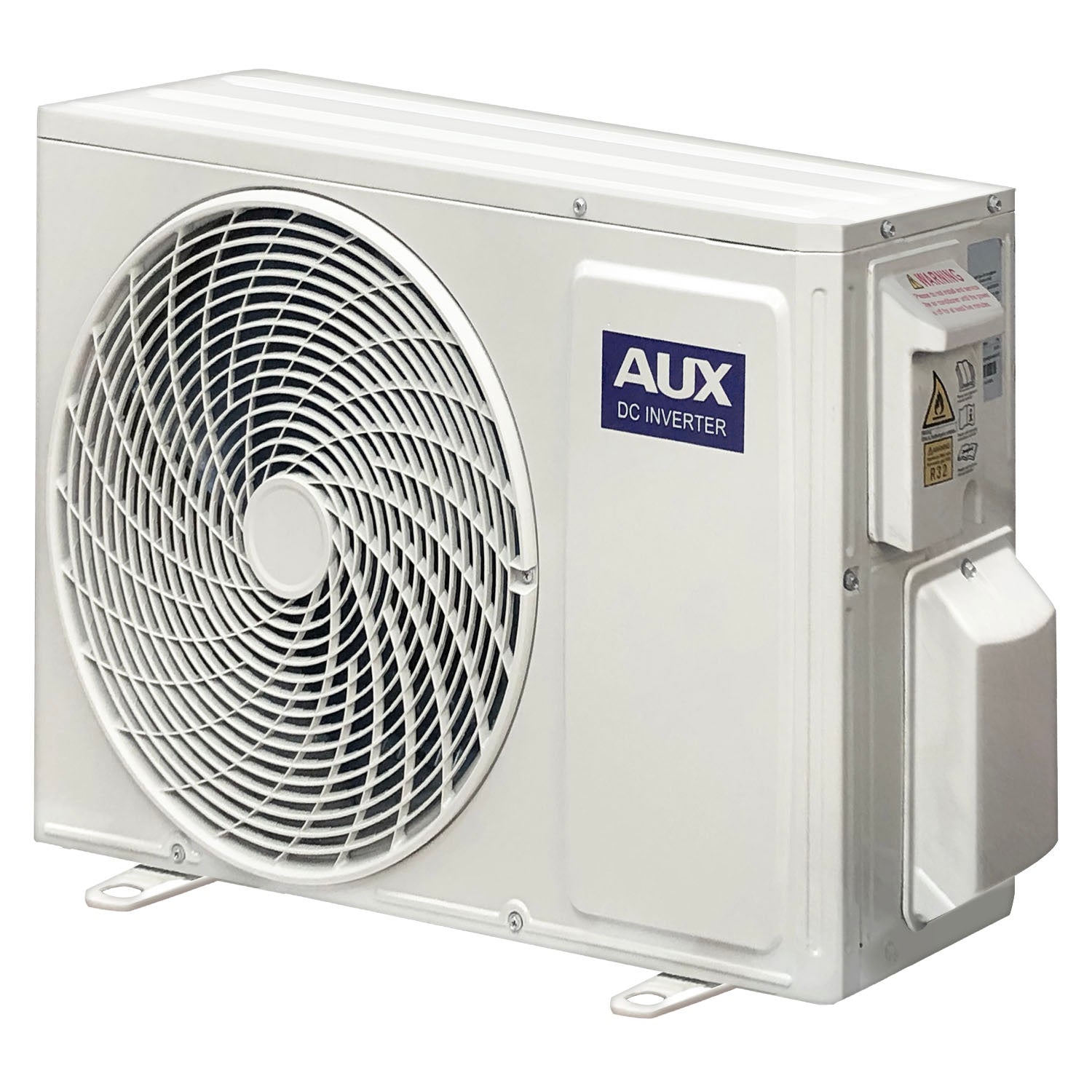

Outdoor Unit:

Outdoor Noise Level: 52 dB(A)

Type: Rotary

Fan:

• Type: Axis flow
• Vane Number: -
• Blade Material: AS

Motor: D-35-10L 310V

Condenser:

• Row: 1
• Tube Material: copper
• Tube Quantity: 26
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin spacing: 1.4mm

Dimension & Weight:

Width x Depth x Height

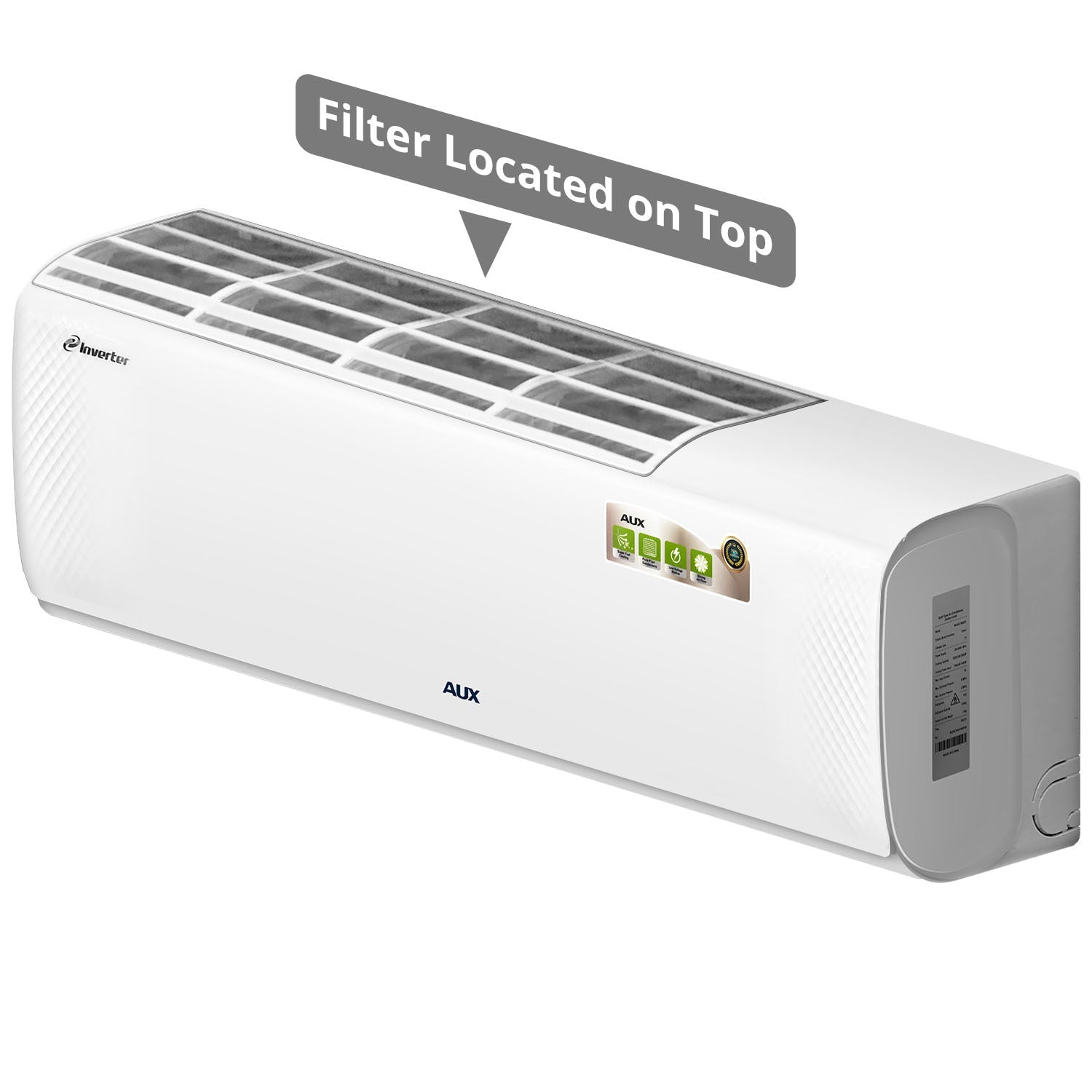

Indoor Unit:

• Product Dimension: 960 x 212 x 316mm (37.8” x 8.3” x 12.4”)
• Packing Dimension: 1020 x 307 x 377mm (40.2” x 12” x 14.8”)
• Net Weight: 11kg
• Gross Weight: 14kg

Outdoor Unit:

• Product Dimension: 709 x 285 x 535mm (27.9” x 11.2” x 21.1”)
• Packing Dimension: 825 x 345 x 595mm (32.5” x 13.6” x 23.4”)
• Net Weight: 23kg
• Gross Weight: 27kg

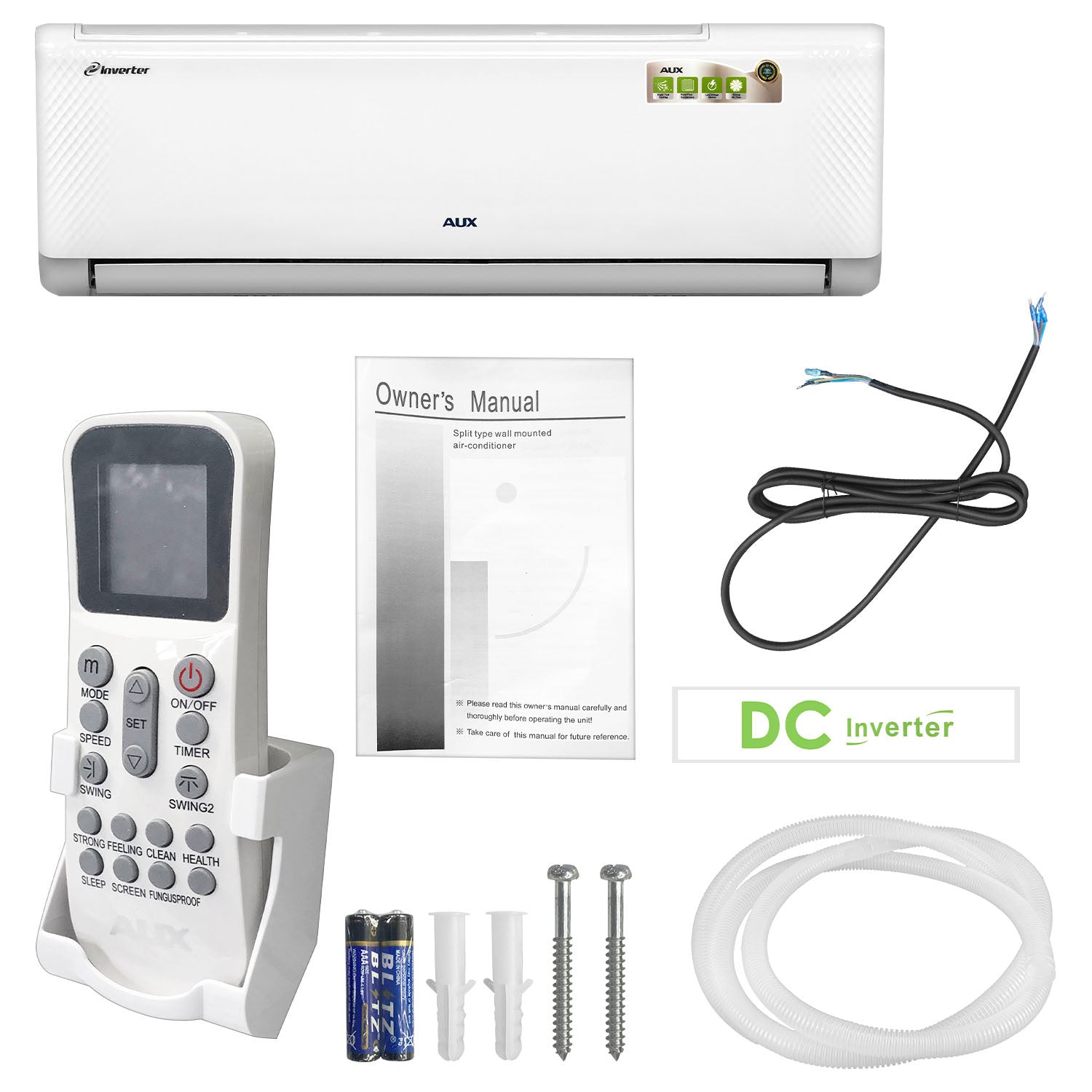

Packing Contents:

18k BTU Indoor Unit – x1

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

18k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 1/2” Insulated Copper Tube – x1
• Clay – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
