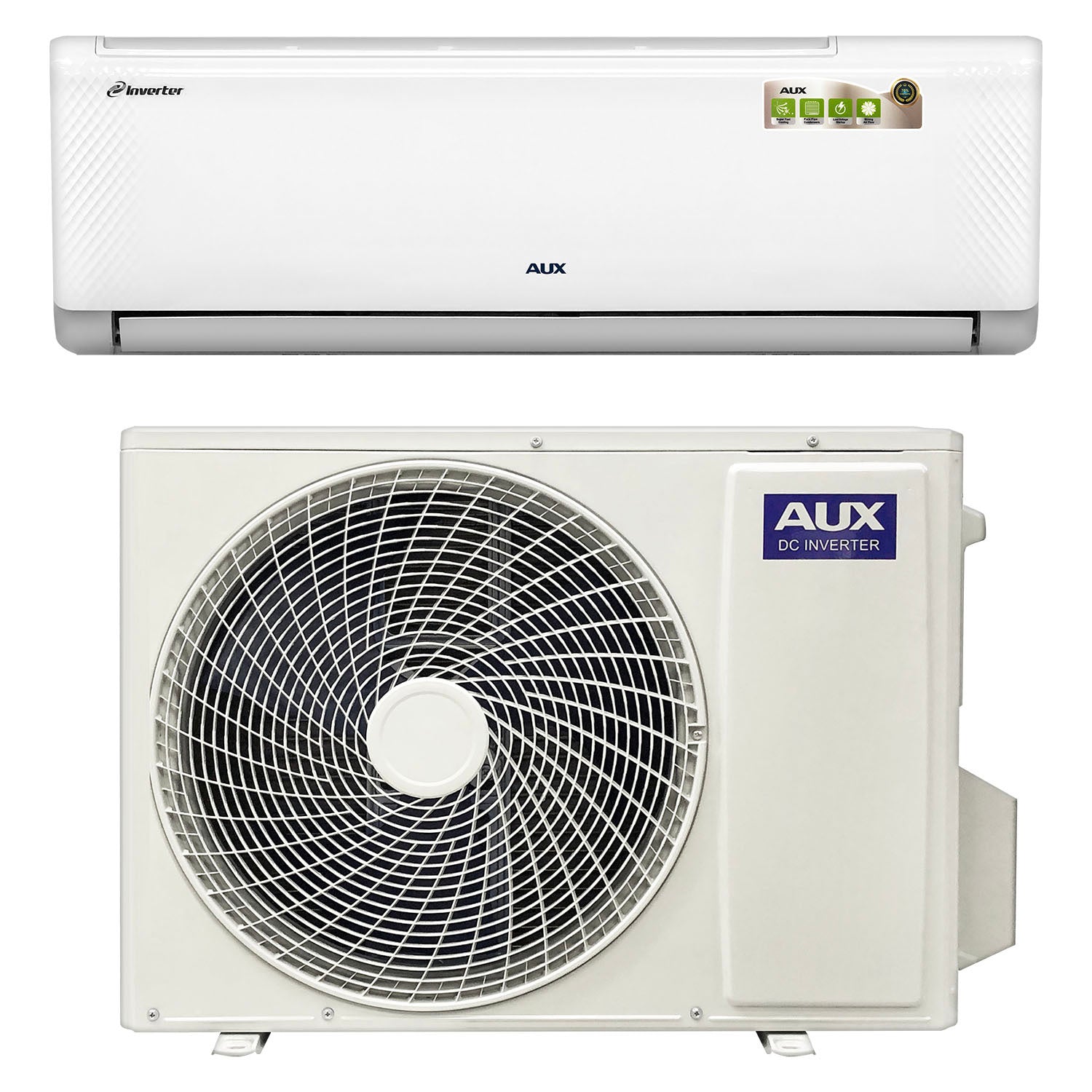

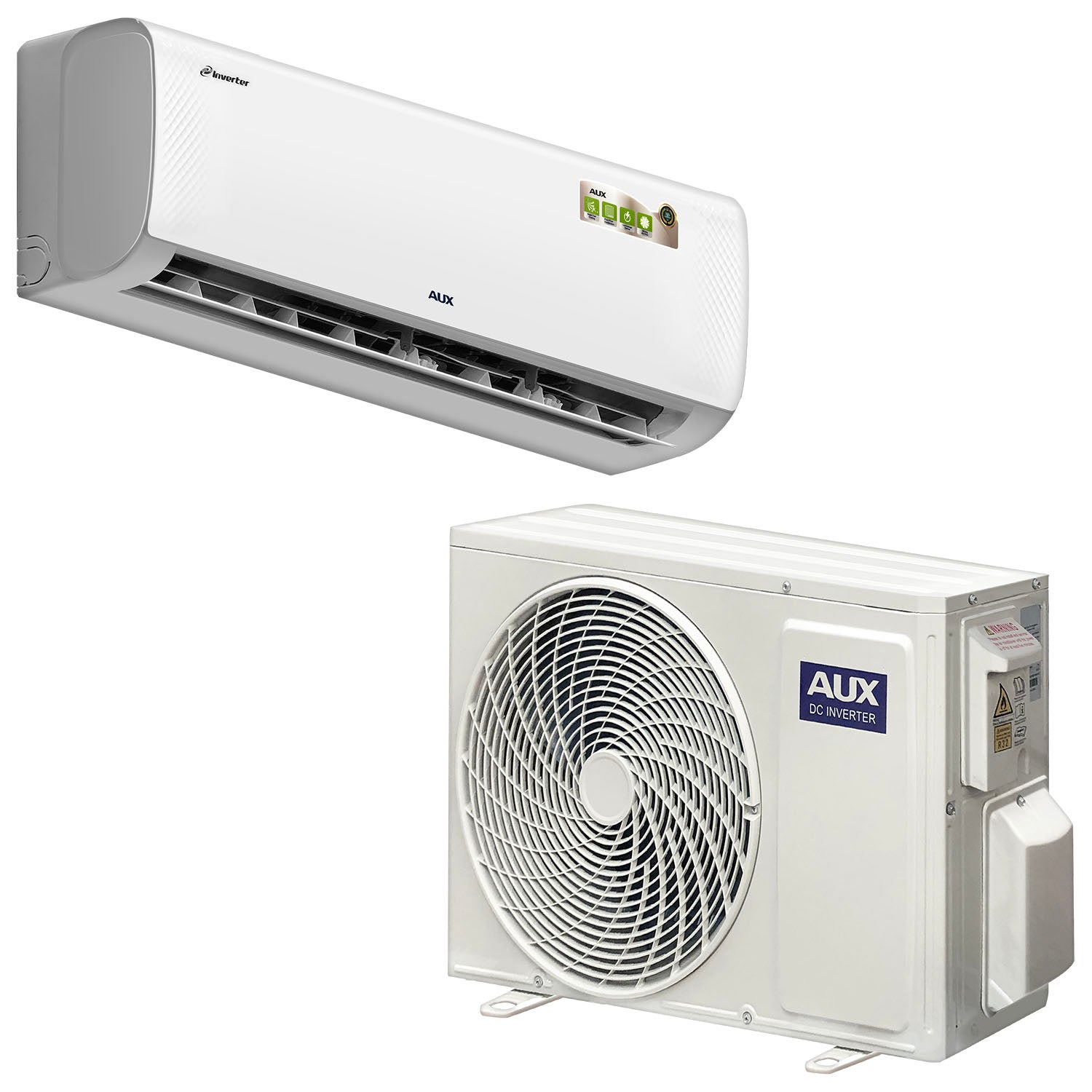

AUX 12000BTU SPLIP AC INVERTER

Aux – Air Conditioner (12000BTU)

Inverter – Wi-Fi Ready

Brand: Aux

Model: MASDC12QGR1

Capacity: 12000BTU

Color: White

Cooling:

• Rated Capacity: 3500W (800 - 4000W)
• Rated Power Consumption: 1180W (400 – 1600W)
• Rated Running Current: 5.6A (1.7 – 7.1A)

Max. Input Power: 1600W

Max. Input Current: 8A

EER Cooling: 2.97 W/W

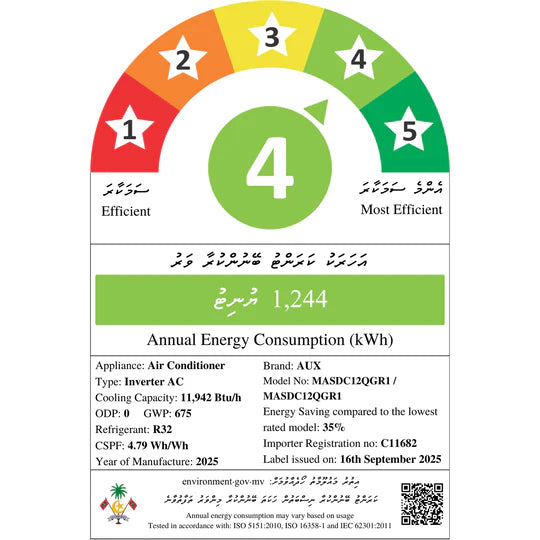

EU Energy Rating: A++

Power Supply Source: 220 ~ 240V - 1Ph - 50Hz

Refrigerant: R32

Refrigerant charged: 400g

Max. Discharge Pressure: 4.3 Mpa

Max. Suction Pressure: 2.5 Mpa

Air Flow Volume: 600 m3/h

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

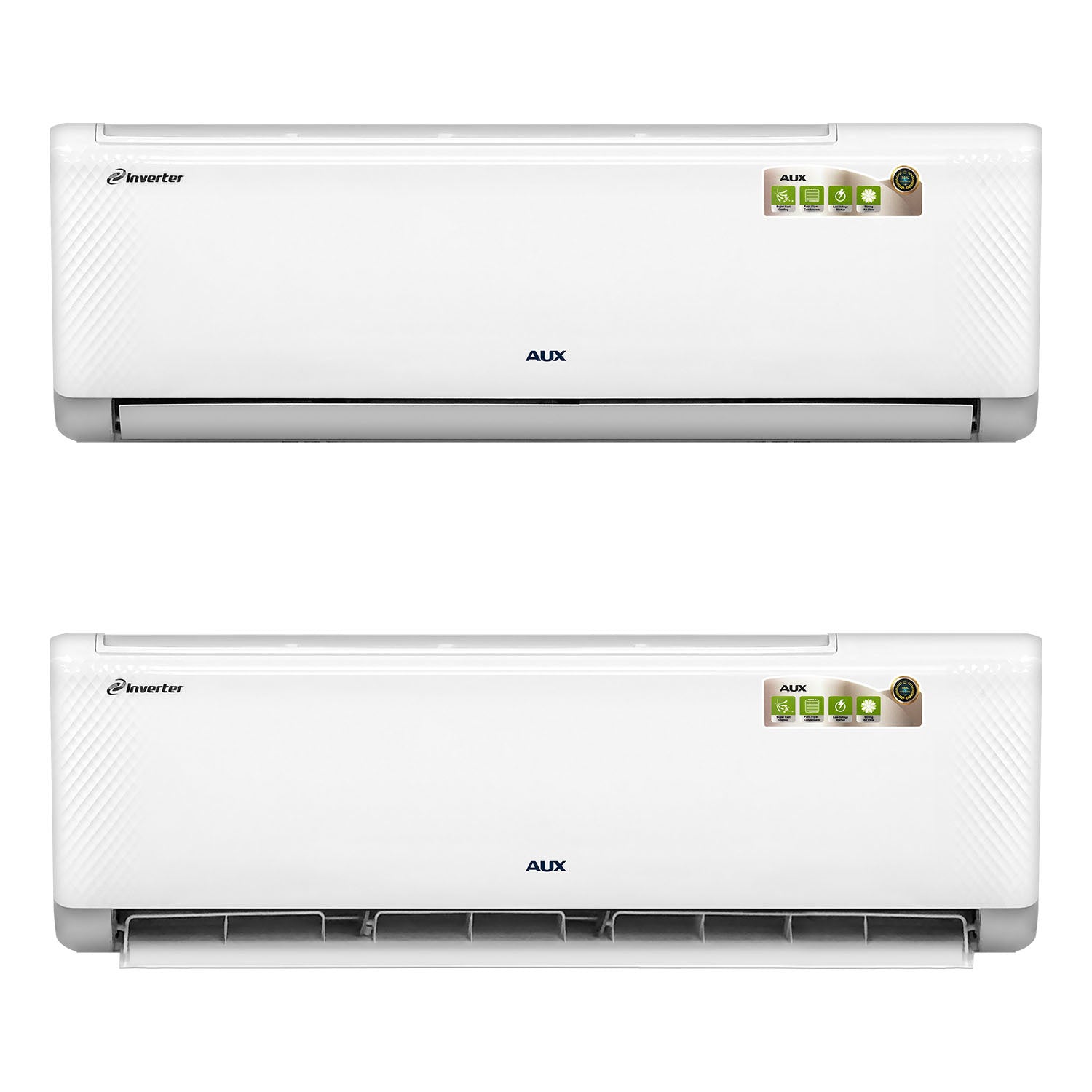

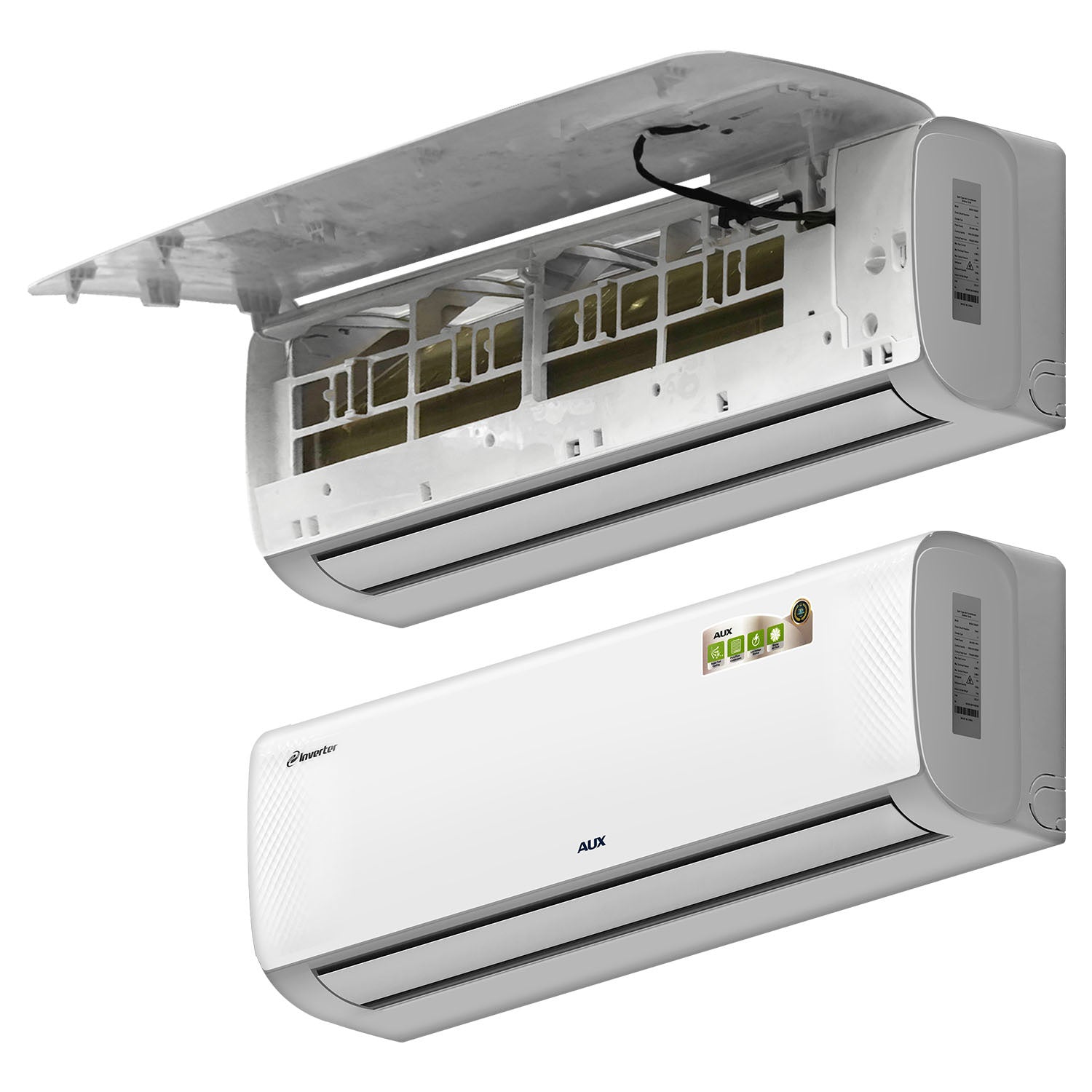

Indoor Unit:

Indoor Noise Level: 41 dB(A)

Evaporator:

• Rows: 2
• Tube pitch: 19.05
• Tube Material: screws inside
• Tube Thickness: 0.2mm
• Tube Quantity: 16
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin Thickness: 0.094mm
• Fin spacing: 1.3mm

Fan System:

• Type: Crossflow
• Material: AS

Connect pipe (length): 3m

Stop Valve:

• Liquid valve: 0.25
• Gas valve: 0.375

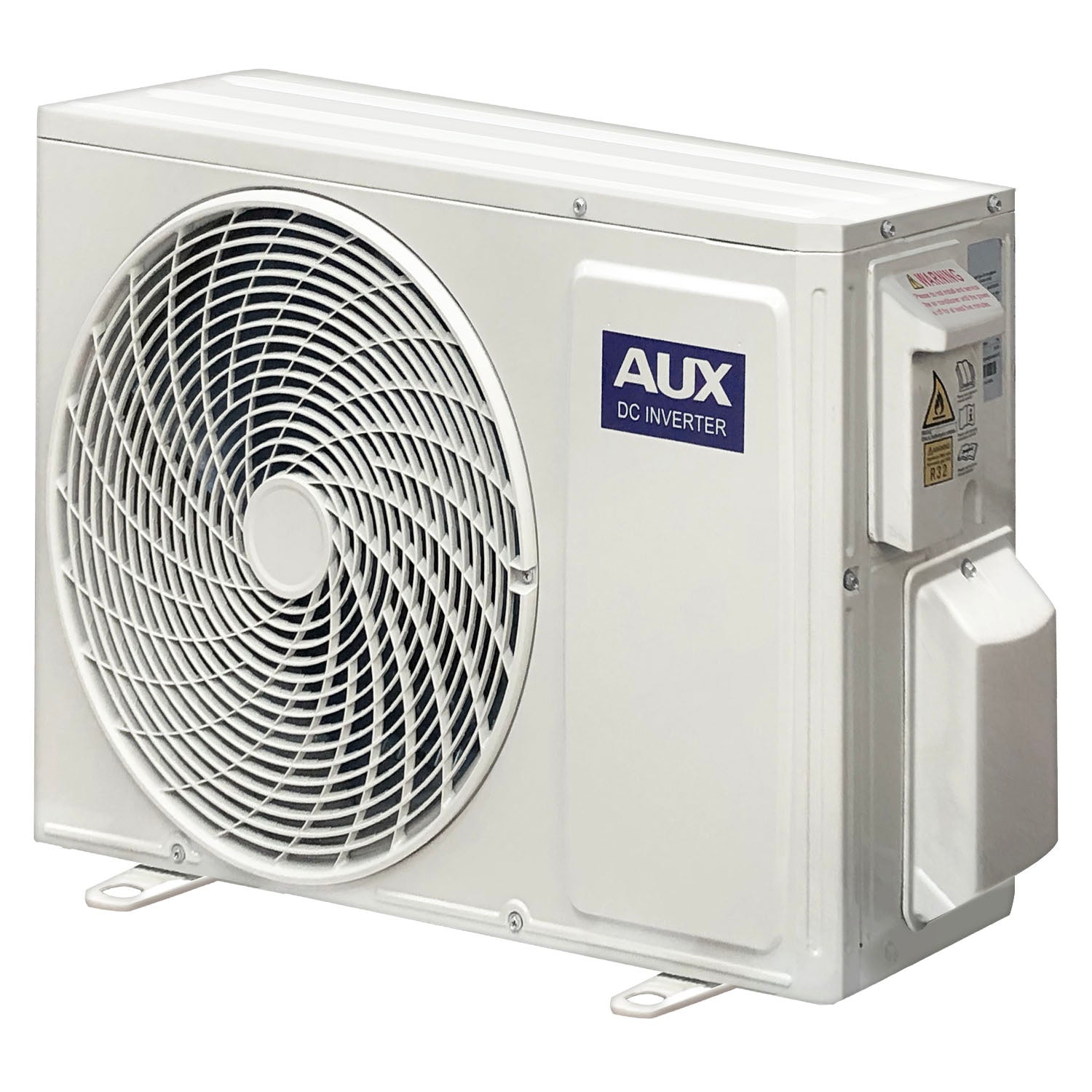

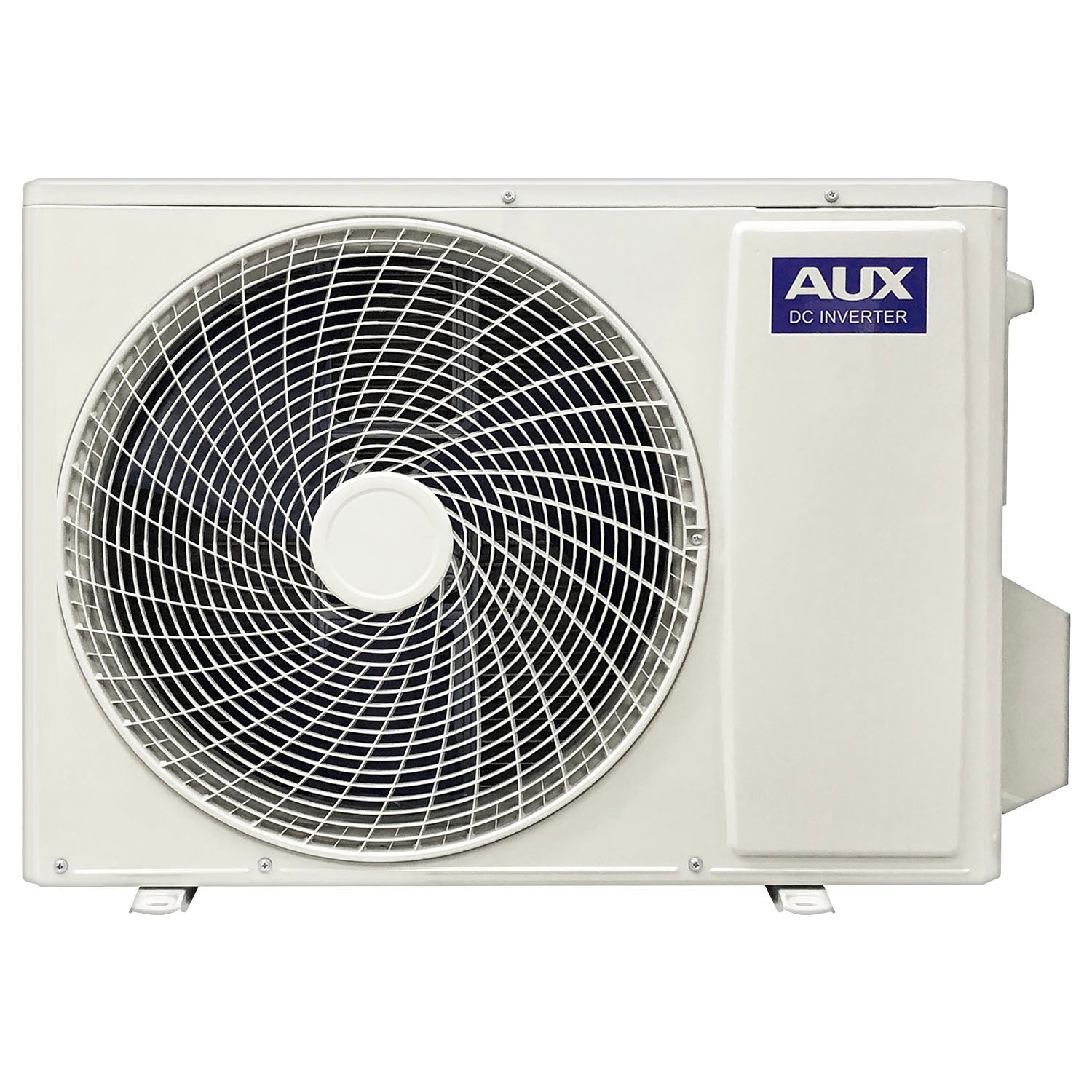

Outdoor Unit:

Outdoor Noise Level: 52 dB(A)

Type: Rotary

Fan:

• Type: Axis flow
• Vane Number: 3
• Blade Material: AS

Motor: D-20-10A

Condenser:

• Row: 1
• Tube Material: screws inside
• Tube Quantity: 11
• Fin Material: hydrophilic foil
• Fin Type: window
• Fin spacing: 1.3mm

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• Product Dimension: 761 x 200 x 295mm (30” x 7.9” x 11.6”)
• Packing Dimension: 825 x 277 x 367mm (32.5” x 10.9” x 14.4”)
• Net Weight: 8kg
• Gross Weight: 11kg

Outdoor Unit:

• Product Dimension: 703 x 260 x 456mm (27.7” x 10.2” x 18”)
• Packing Dimension: 760 x 305 x 510mm (29.9” x 12” x 20.1”)
• Net Weight: 17kg
• Gross Weight: 20.5kg

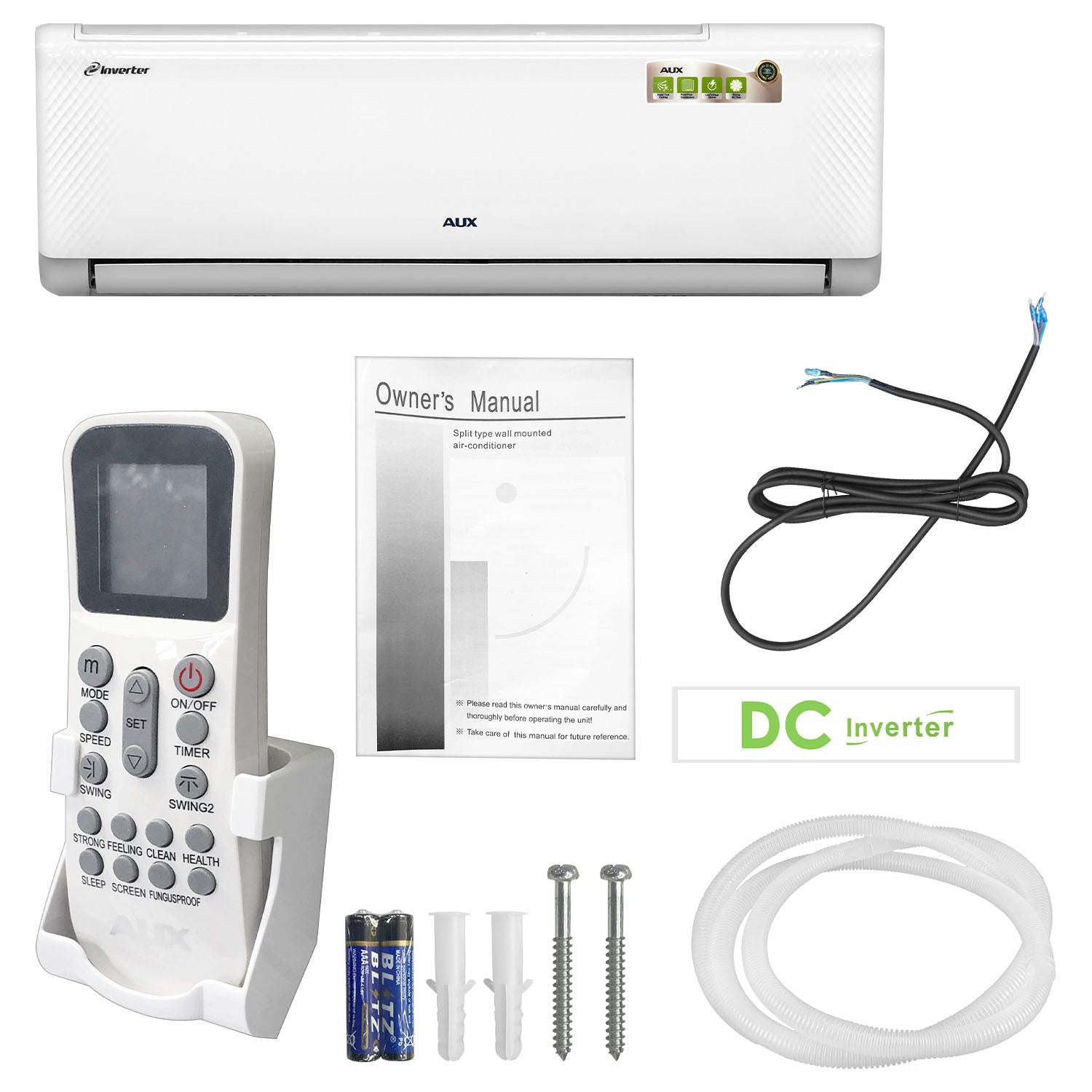

Packing Contents:

12k BTU Indoor Unit – x1

• Remote Control – x1
• Remote Holder (Wall-Mount) – x1
• Screws with Plugs – x2
• AA Battery – x2
• Electric Wire – x1
• Drainage Hose – x1
• User Manual – x1

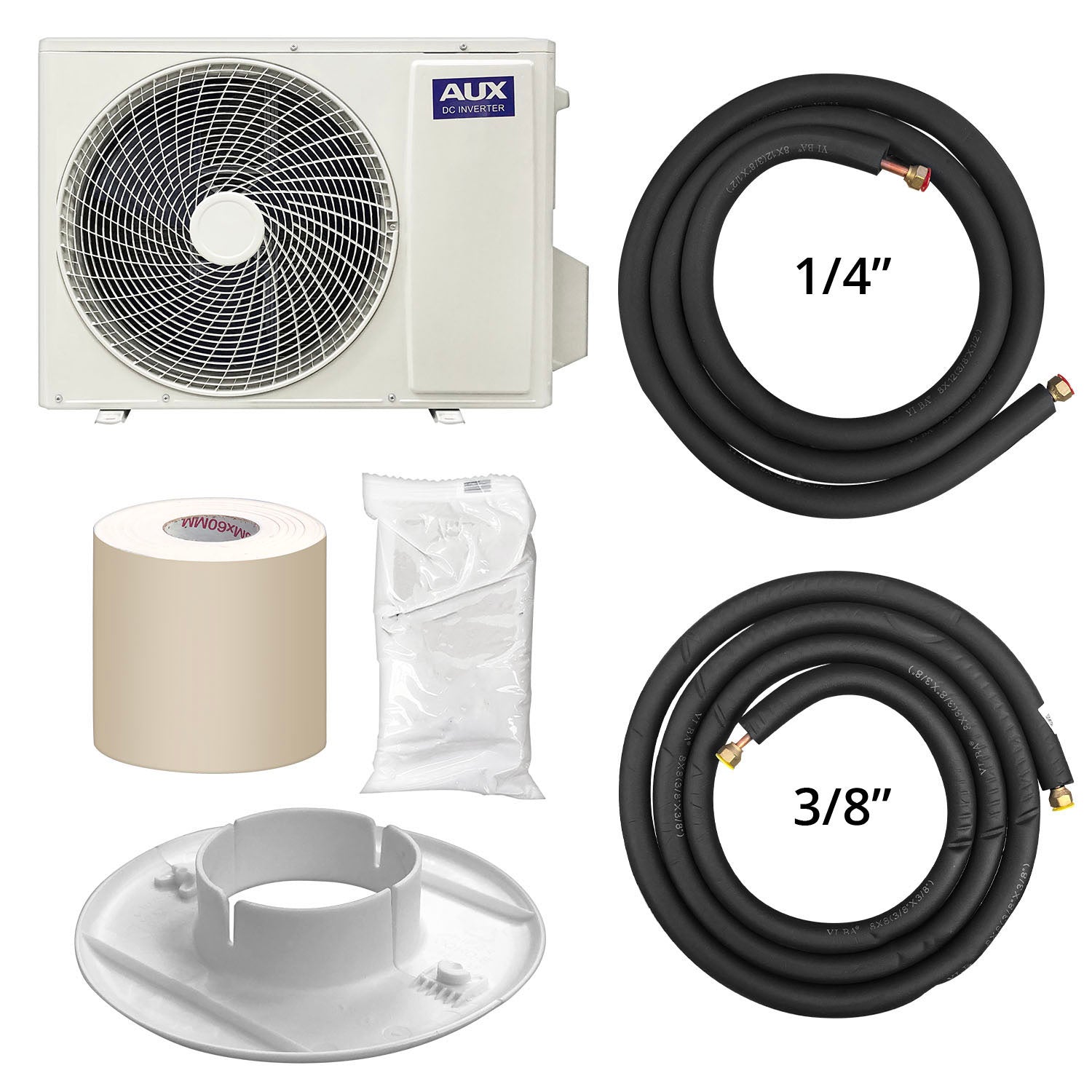

12k BTU Outdoor Unit – x1

• 1/4" Insulated Copper Tube – x1
• 3/8” Insulated Copper Tube – x1
• Clay – x1
• Wall Hole Cover – x1
• Wrapping Roll – x1
