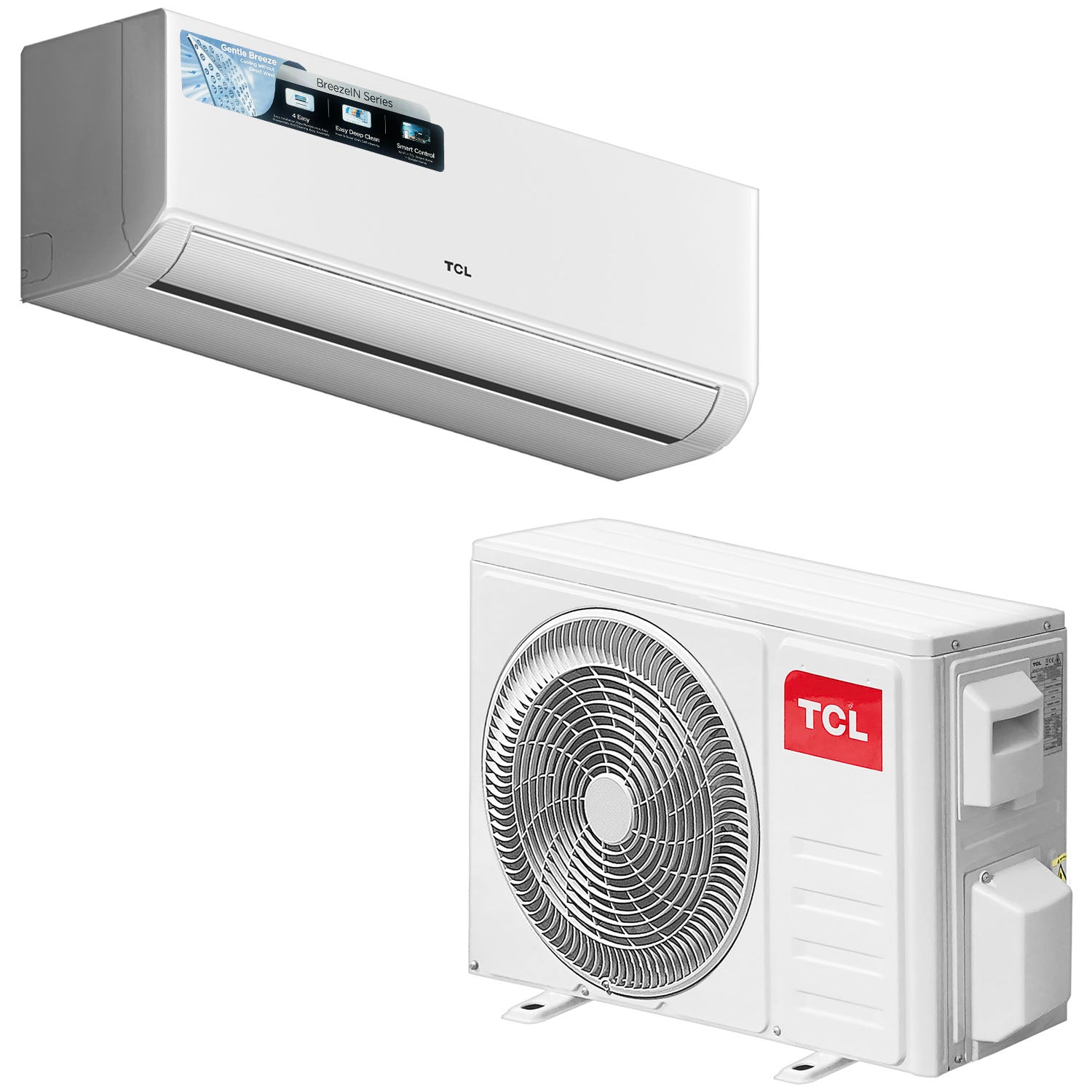

TCL - Air Conditioner (12000BTU)
Inverter – BreezeIN Series
Brand: TCL
Model: TAC-13CSD
Capacity: 1200BTU
Type: Cooling Only
Control type: Remote & App
Rated Cooling Capacity (Btu/h): 12500 (3360~13170)
Rated Cooling Capacity (W): 3665 (985~3860)
CSPF (Btu/h.w; W/W): 5.421
Star Rating: 5 Star
Moisture removal (Liters/h): 1
Indoor noise level at cooling (dB (A)):
Outdoor noise level (dB (A)): 55
Warranty: 1 Year Warranty plus 5 Years Compressor Warranty
Power Supply:
Power Supply: 220-240V~/50Hz/1P
Voltage Range: 165 ~ 265V
Rated current (Cooling): 5.3 (1.5~8.0) V
Rated input (Cooling): 1160 (260~1700) W
Max current: 8 A
Max input: 1700 W
Fan System:
Indoor air circulation Cooling (m3/h): 600
Indoor fan type: Cross Flow
Outdoor fan type: Propeller Fan
Additional Specs:
Refrigerant/Charge: R32/0.45Kg
Compressor (Type): Rotary
Connecting Pipe:
-
Gas: Ø9.52 (3/8'')
-
Liquid: Ø6 (1/4'')
Connecting Wiring (Size x Core number): 4 x 1.0
Suitable area: 15-23 m2
Dimension & Weight:
Width x Depth x Height

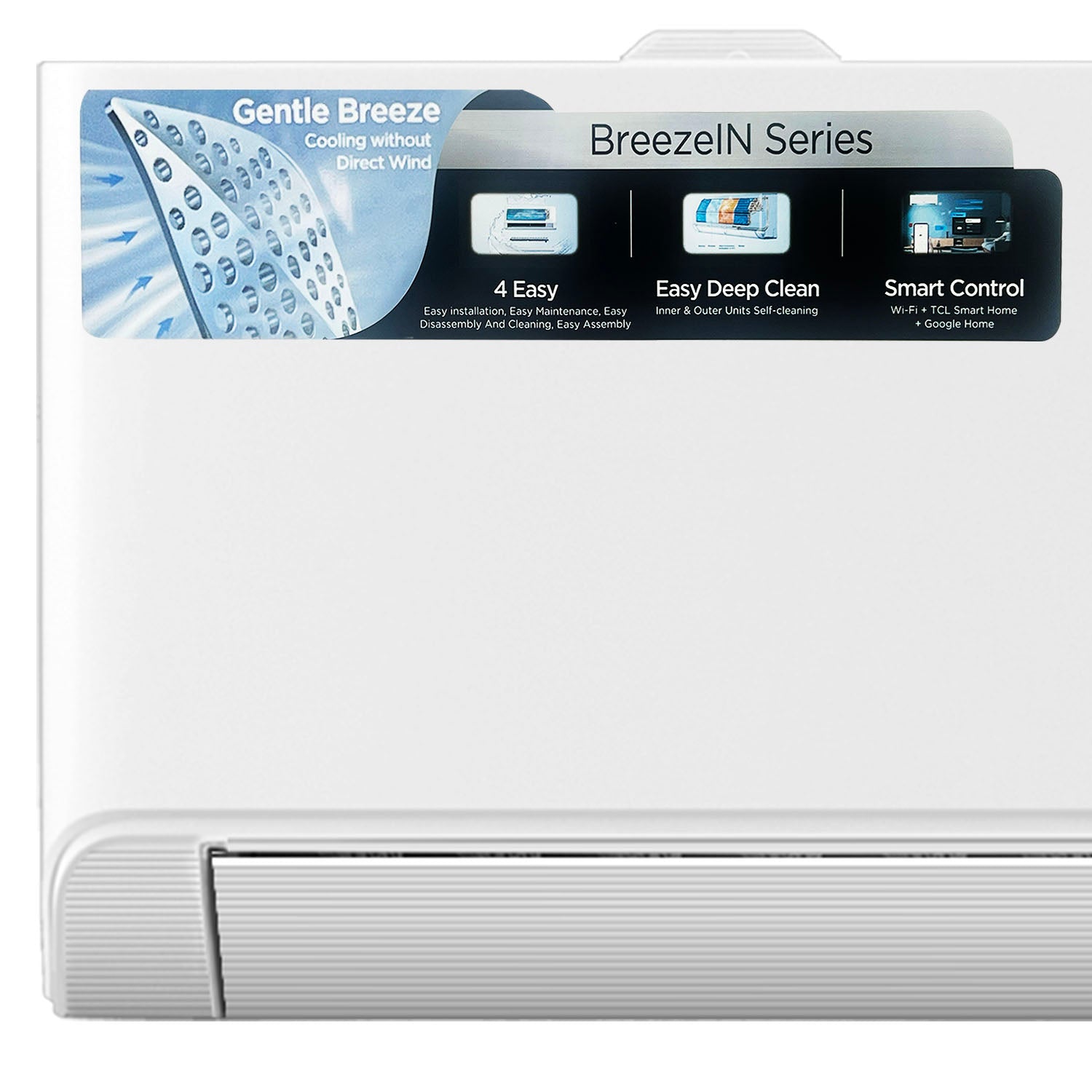

Indoor Unit:
-
Product Dimension: 788 x 192 x 275mm (31” x 7.6” x 10.8”)
-
Packing Dimension: 850 x 275 x 320mm (33.5” x 10.8” x 12.6”)
-
Net Weight: 8.5kg
-
Gross Weight: 10.5kg

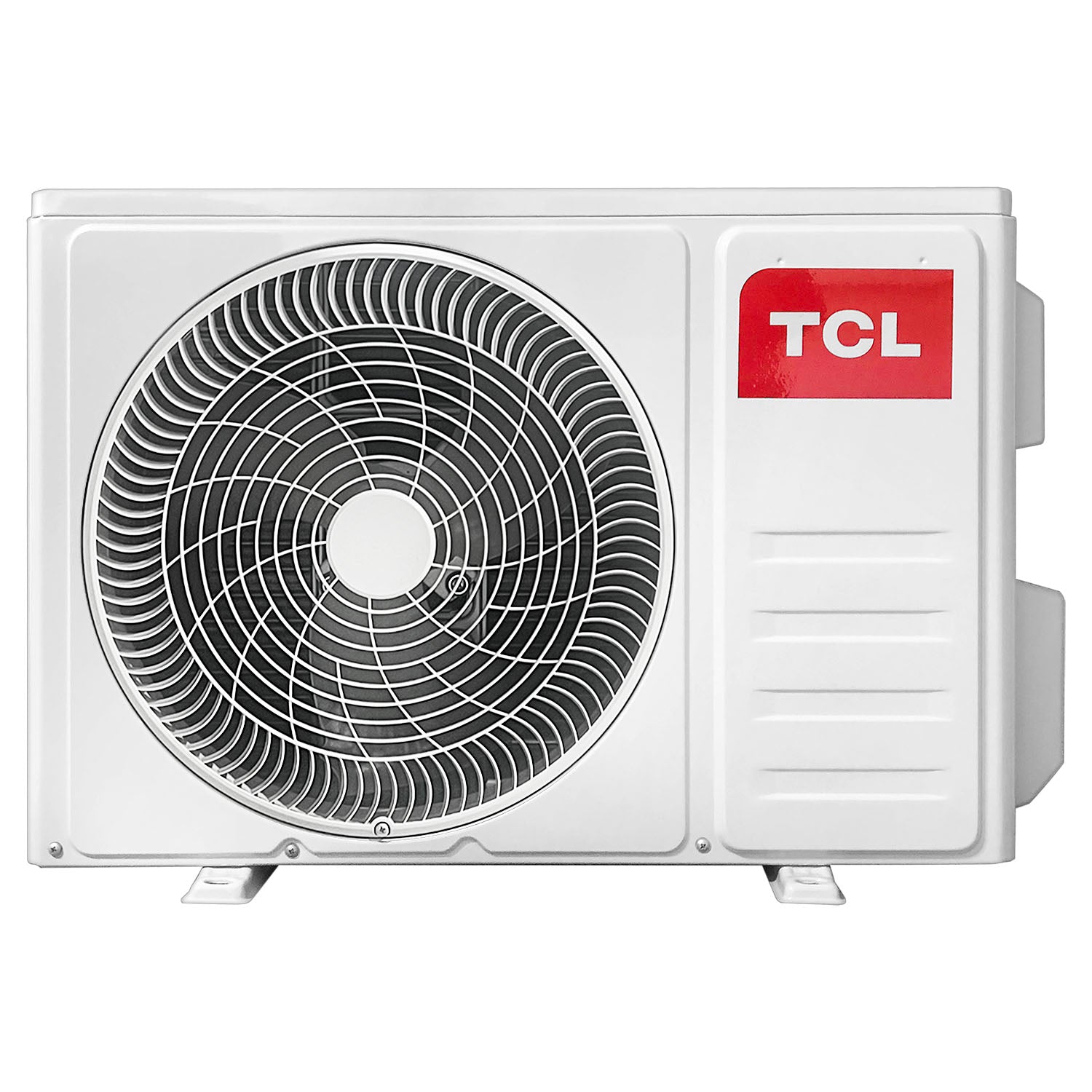

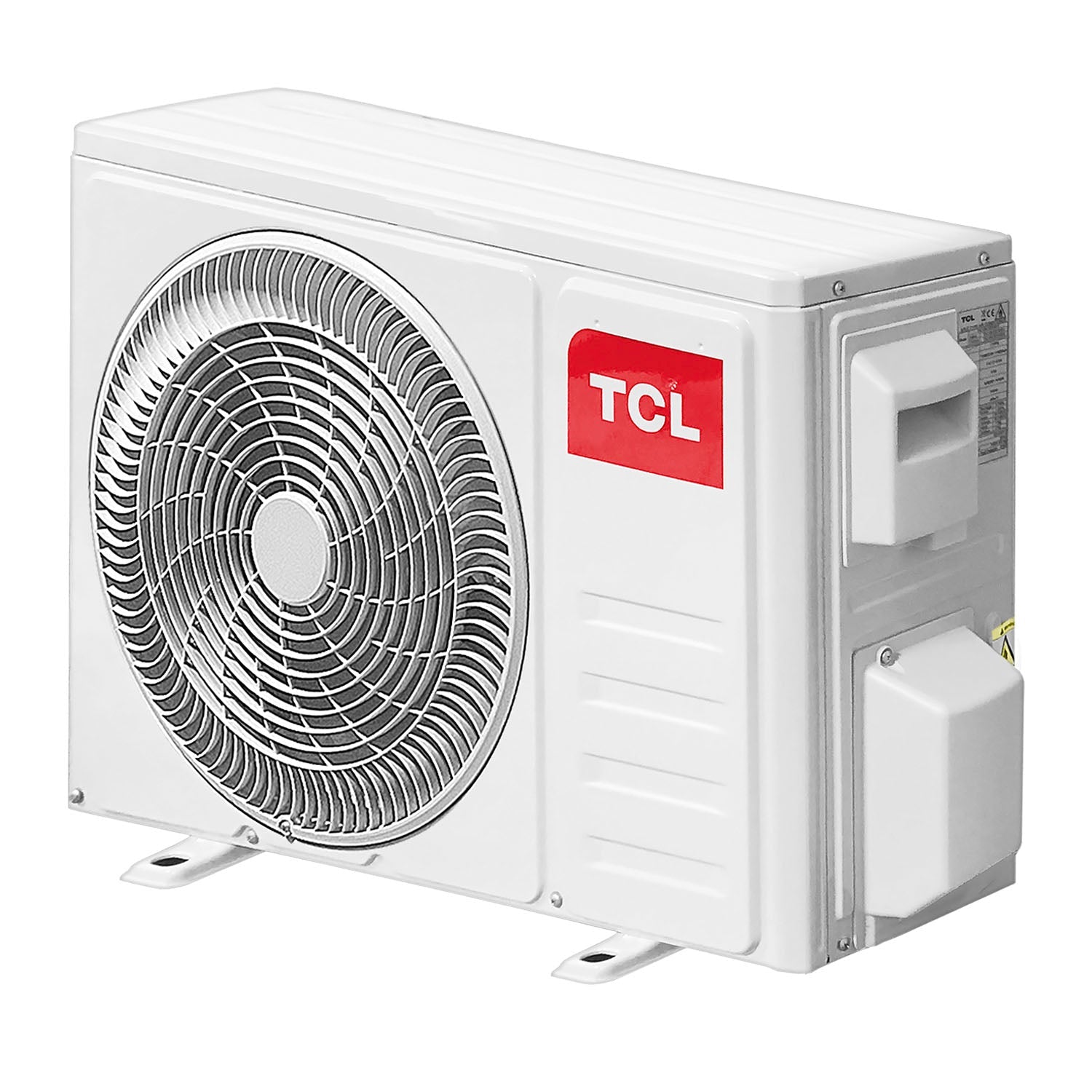

Outdoor Unit:
-
Product Dimension: 787 x 290 x 498mm (31” x 11.4” x 19.6”)
-
Packing Dimension: 818 x 325 x 520mm (32.2” x 12.8” x 20.5”)
-
Net Weight: 21kg
-
Gross Weight: 24kg

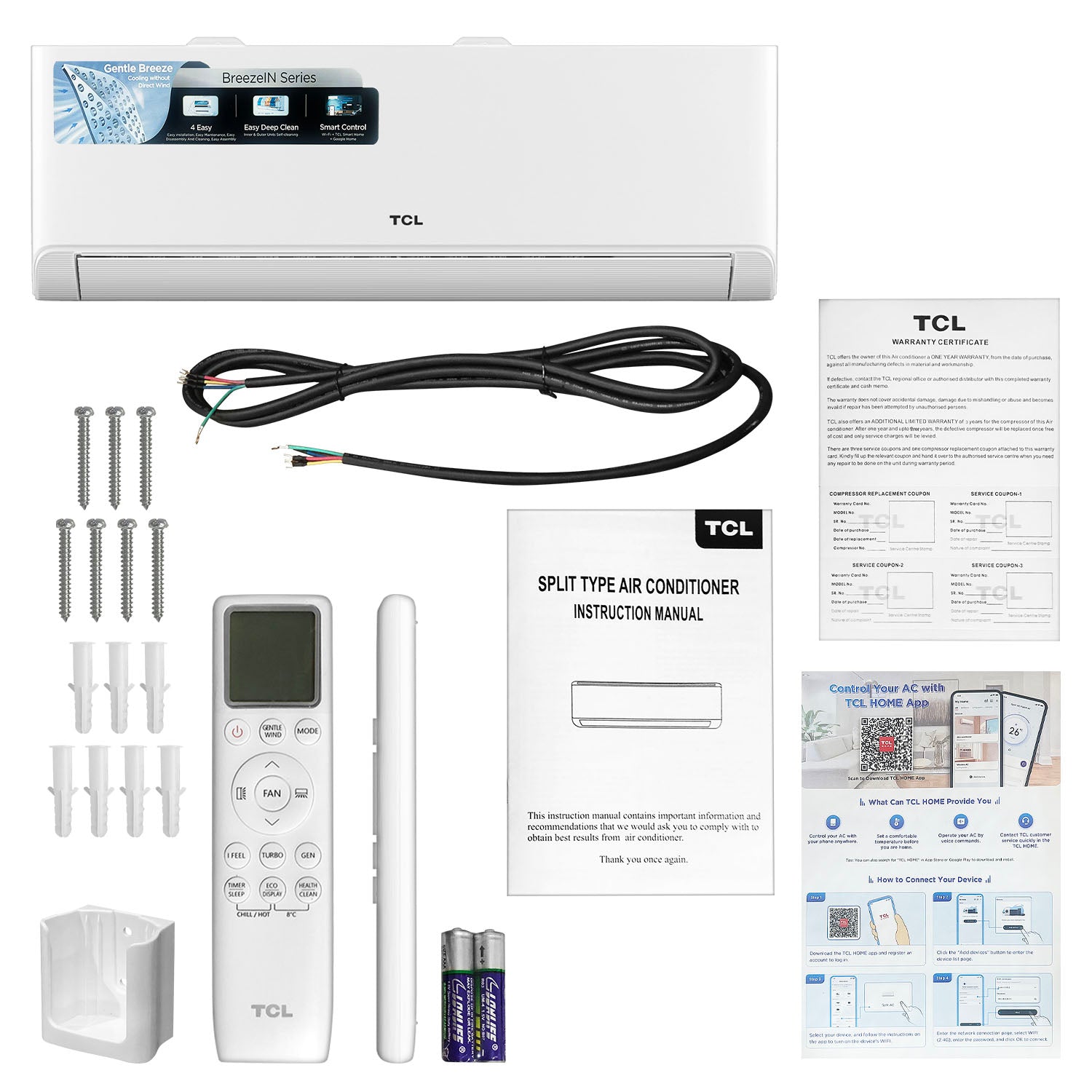

Packing Contents:
12k BTU Indoor Unit – x1
- 12ft. Electric wire – x1

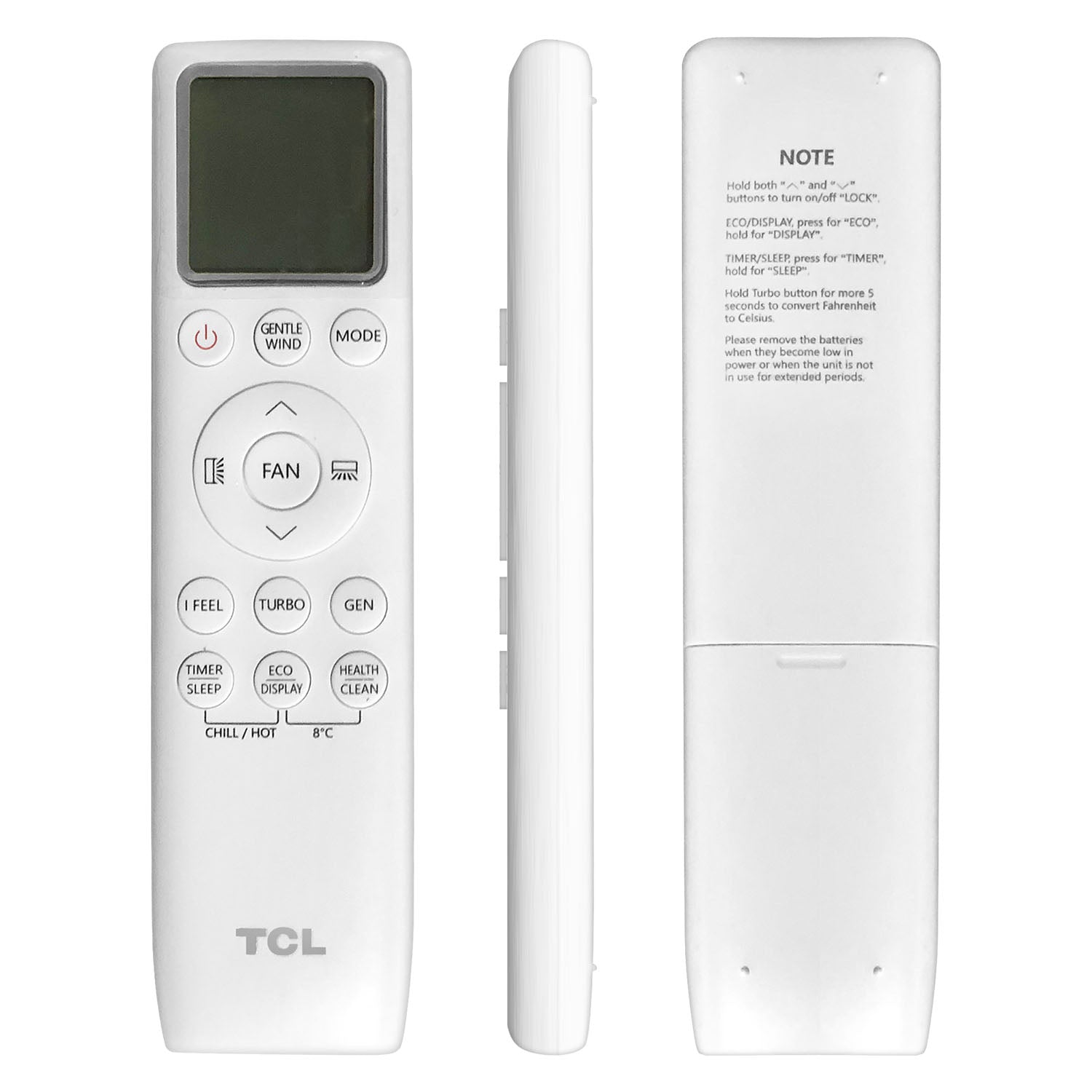

- Remote Control – x1
- AAA Battery – x2
- Wall Mount Remote Holder – x1
- Screws – x7
- Wall Plugs – x7
- App Control Manual – x1
- Warranty Certificate – x1
- User Manual – x1

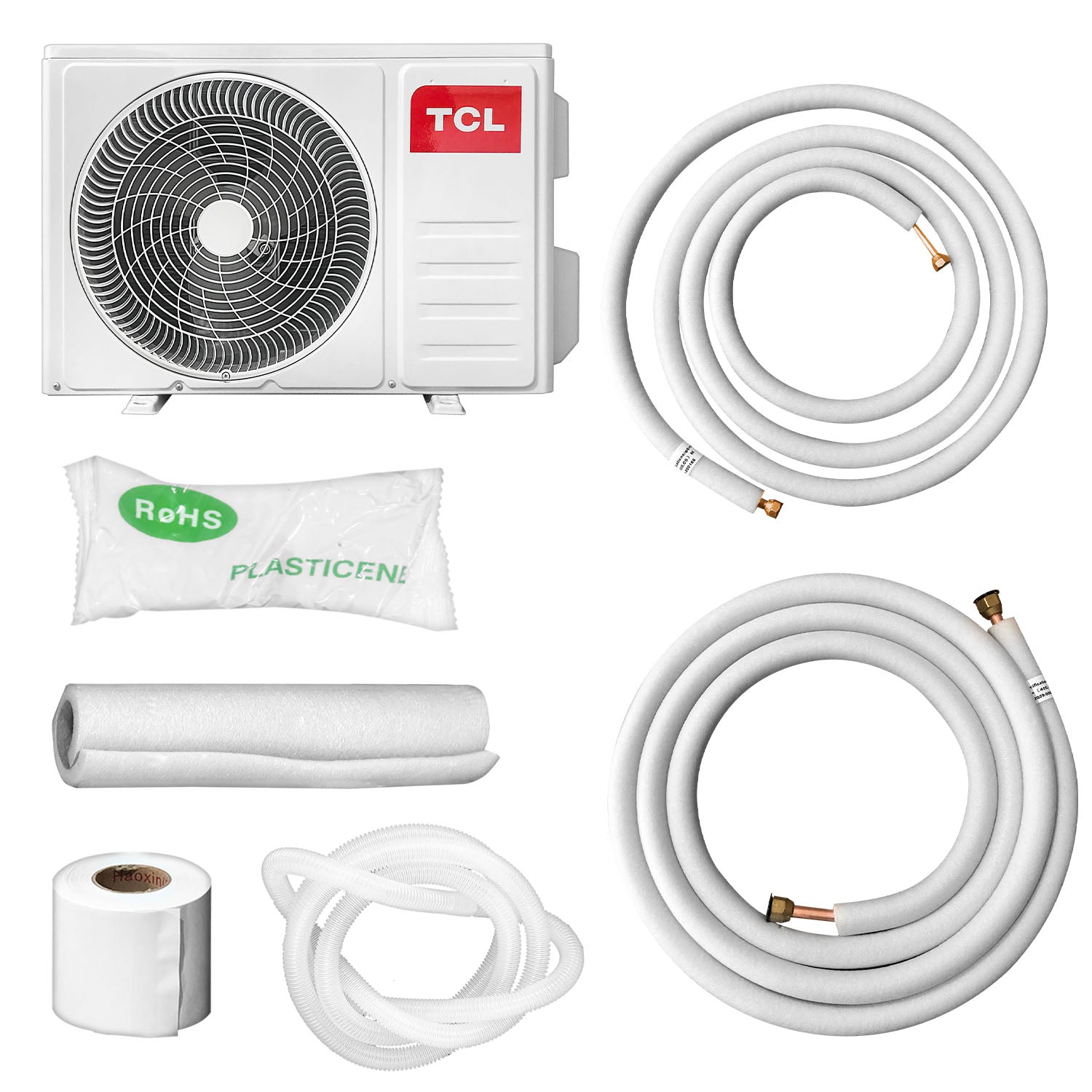

12k BTU Outdoor Unit – x1
- 1/4" Copper Tube (13ft.) – x1
- 3/8” Copper Tube (13ft.) – x1
- Drainage Hose – x1
- Wrapping Roll – x1
- Insulation Sheath – x1
- Plasticene RoHS – x1
