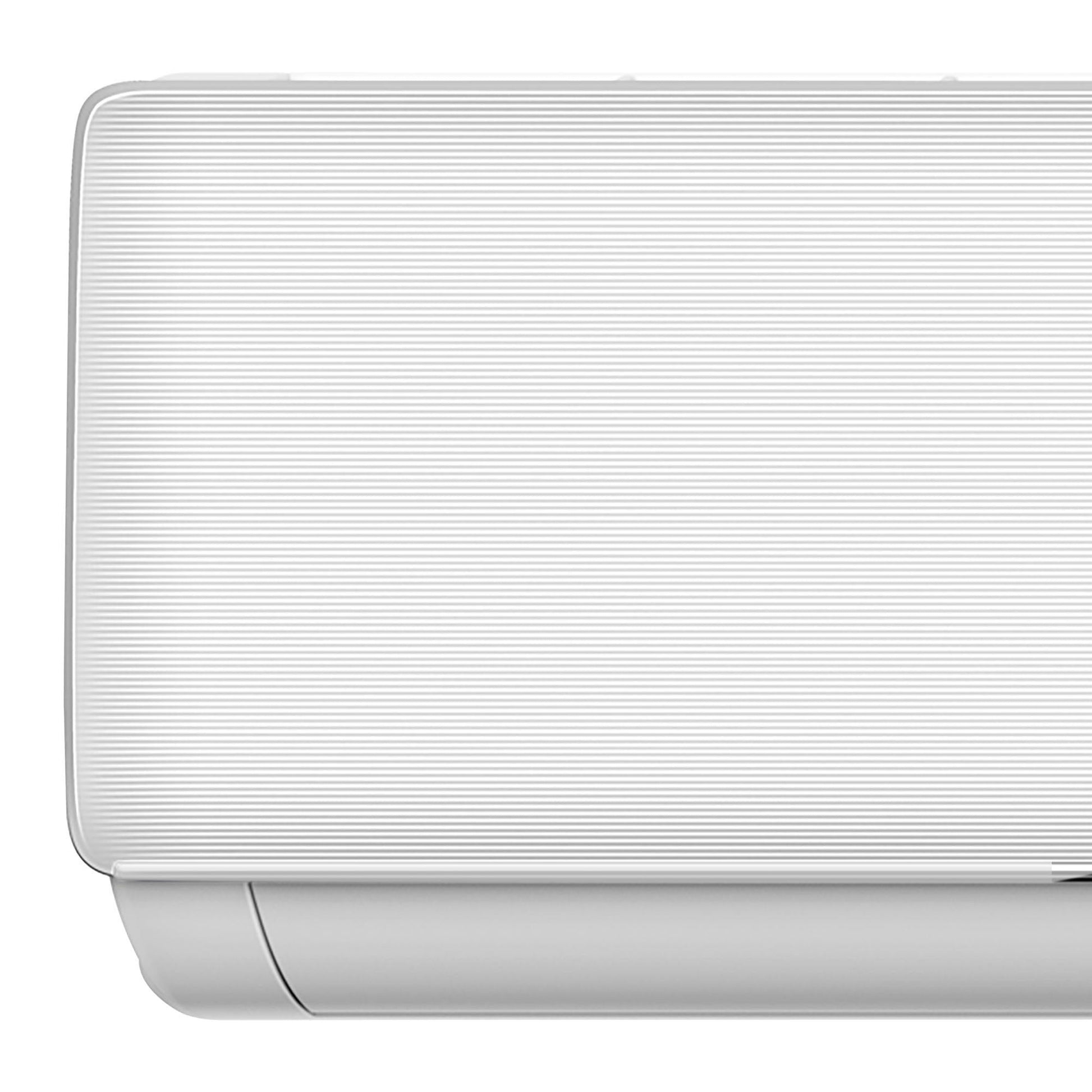

TCL 12000 BTU AC INVERTER

TCL 12000 BTU AC INVERTER

Rf5,499.00
Rf5,499.00
Sale Sold out

45474

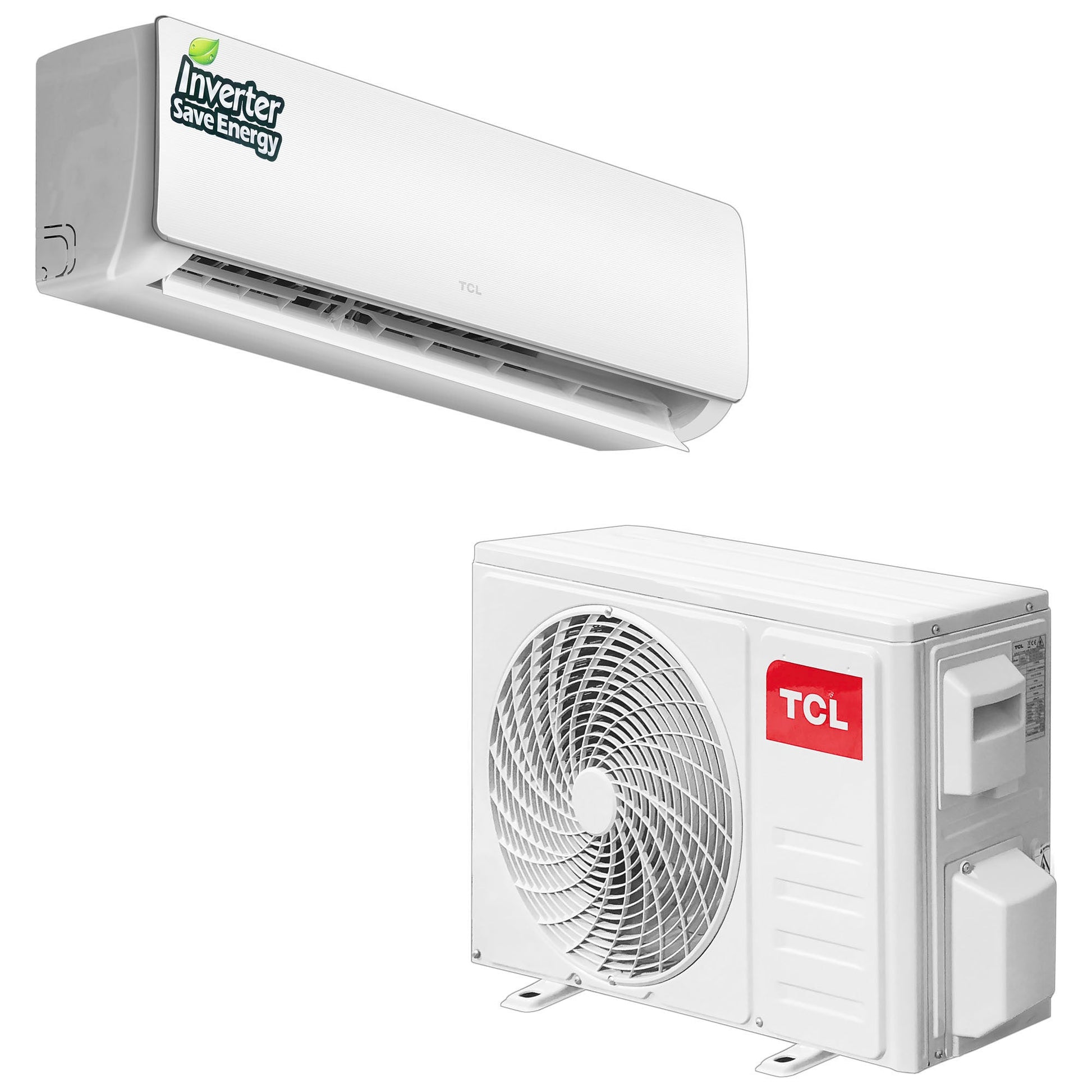

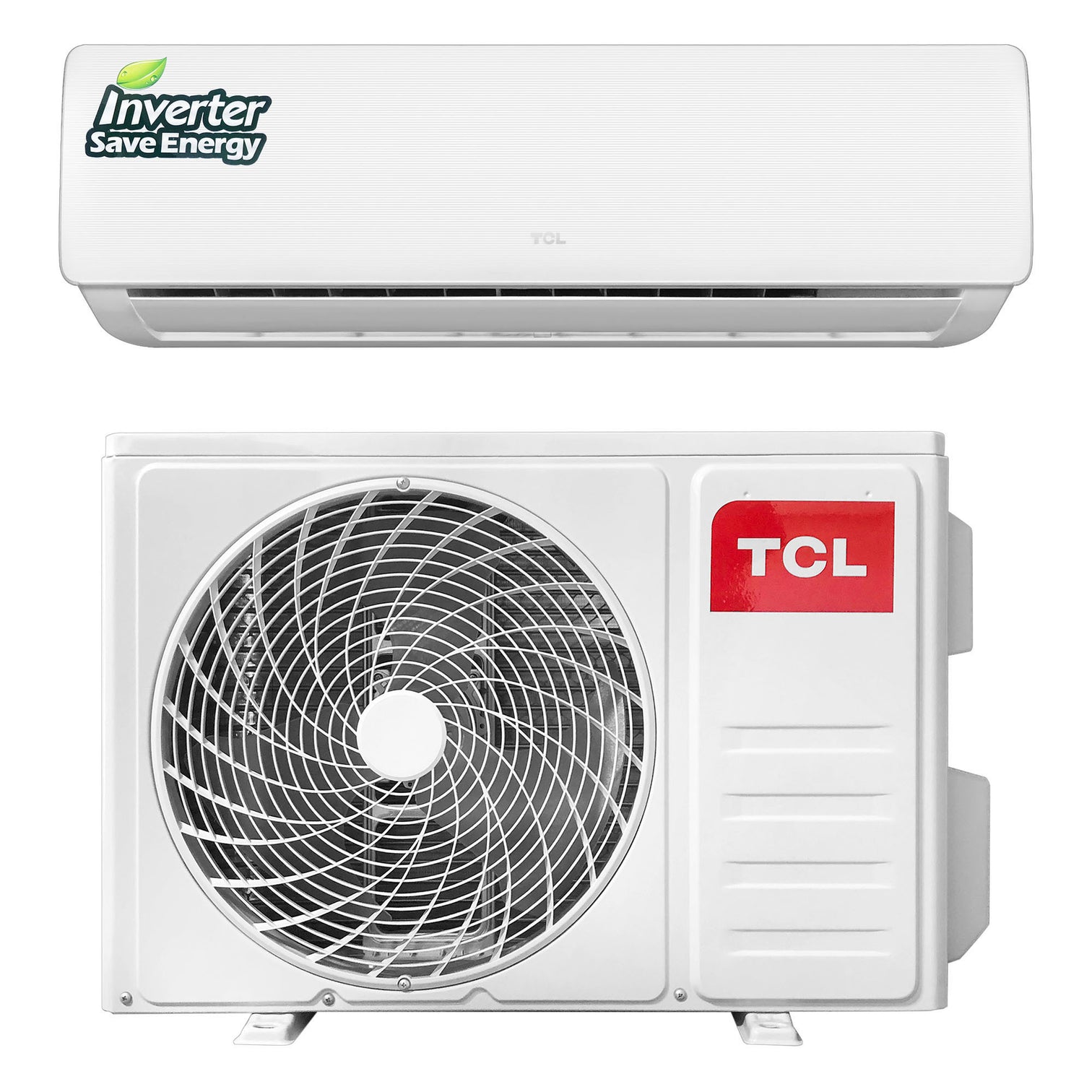

TCL - Air Conditioner (12000BTU)

Inverter

Brand: TCL

Model: TAC-12CSD

Capacity: 12000BTU

Type: Cooling Only

Control type: Remote

Rated Cooling Capacity (Btu/h): 12000 (2729 ~ 12000)

Rated Cooling Capacity (W): 3342

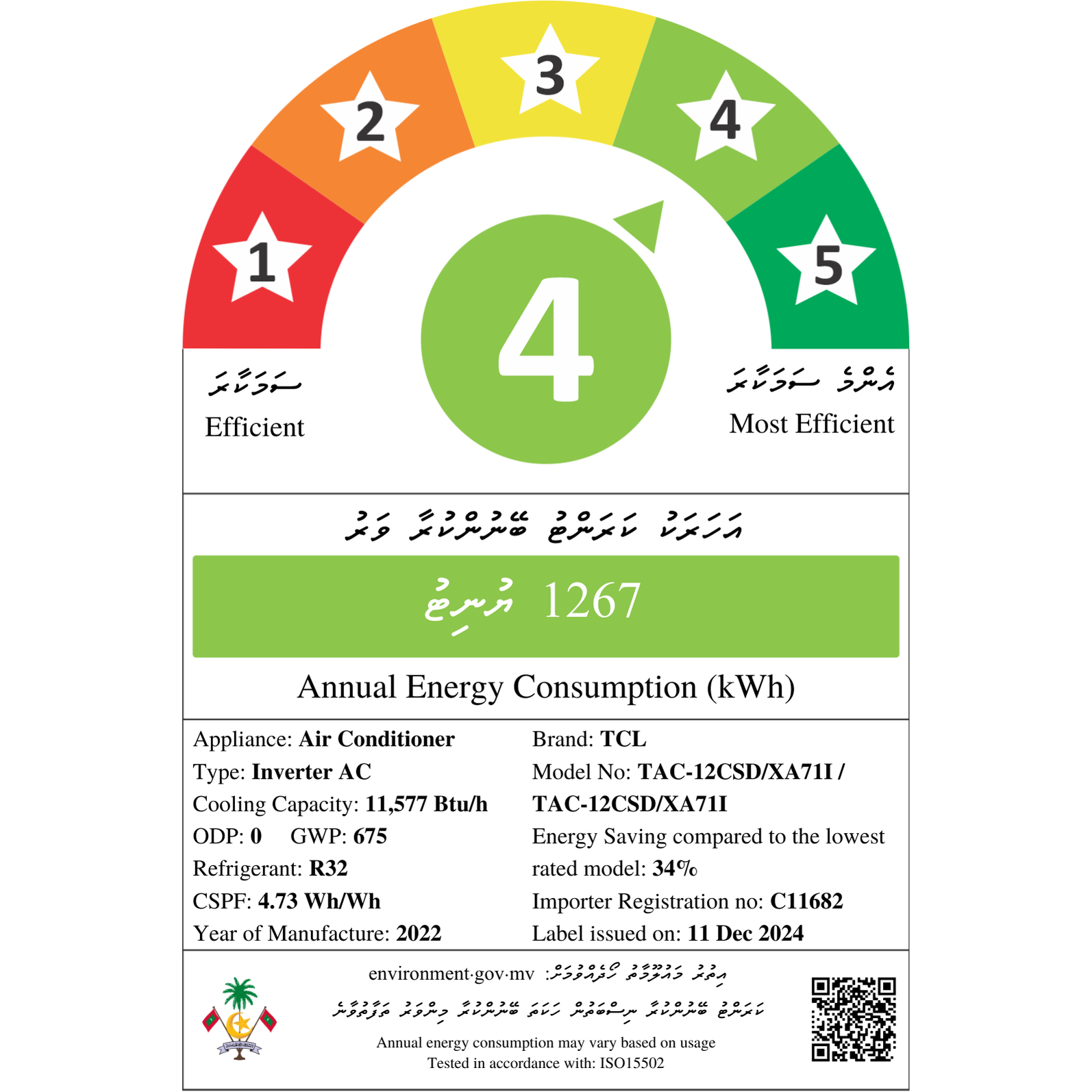

CSPF (Btu/h.w; W/W): 4.35

Moisture removal (Liters/h): 12

Indoor noise level at cooling (dB (A)):

    • High: 40.6
    • Med: 35.3
    • Low: 31.8

Outdoor noise level (dB (A)): 50.7

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty



Power Supply

Voltage Range: 155 ~ 265V

Rated current (Cooling): 7.3 (1~8) A

Rated input (Cooling): 1130 (290 ~ 1450) W

Max current: 7.3 A

Max input: 1450 W



Fan System:

Indoor air circulation Cooling (m3/h): 465

Indoor fan type: Cross Flow

Indoor fan speed H/M/L:

    • Cooling (rpm): 1270/1150/950/850/600
    • Dry (rpm): 1270/1150/950/850/600
    • Sleep (rpm): 600

Indoor fan motor output: 46 W

Outdoor fan type: Propeller Fan

Outdoor fan speed: 860rpm

Outdoor fan motor output: 70W



Others

Refrigerant/Charge (Gram): R32/450

Compressor:

    • Type: Rotary

Evaporator: 3-bend

Indoor coil:

    1. Number of rows: 2
    2. Tube pitch (a)x row pitch (b): 21 x 25.4mm
    3. Fin spacing: 1.5mm
    4. Fin type (code): Hydrophilic
    5. Tube outside dia.and type: Ø7mm inner groove tube
    6. Coil (length x height x width): 573 x 225 x 25.4mm
    7. Number of circuits: 2

Condenser: Single-arranged

Connecting Pipe:

    • Gas: 1/4''
    • Liquid: 3/8''

Connecting Wiring (Size x Core number): 4 x 1.0



Dimension & Weight:

Width x Depth x Height

Suitable area: 15-23 m2

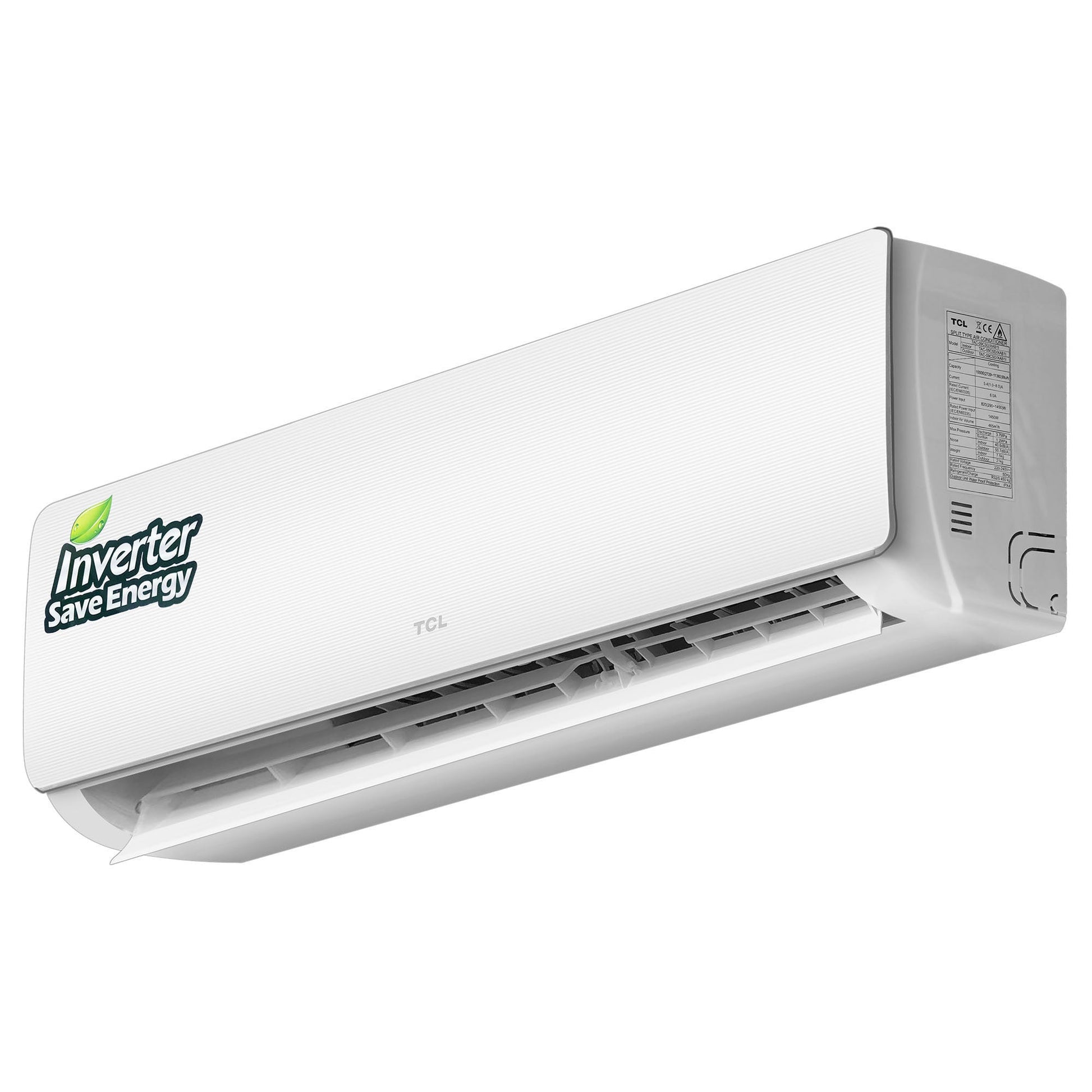

Indoor Unit:

    • Product Dimension: 777 x 201 x 250mm (30.6” x 7.9” x 9.8”)
    • Packing Dimension: 850 x 275 x 320mm (33.5” x 10.8” x 12.6”)
    • Net Weight: 7.5kg
    • Gross Weight: 10kg

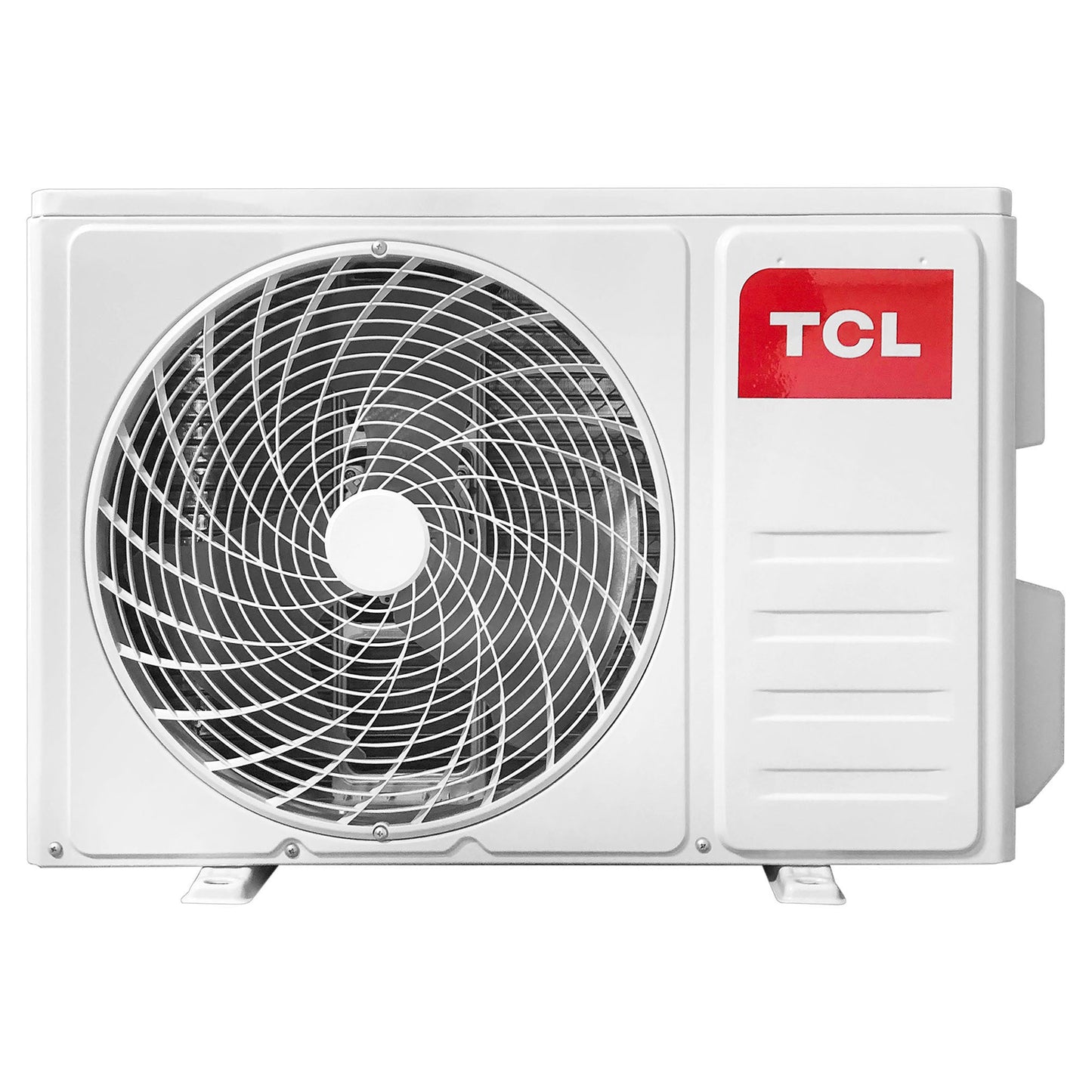

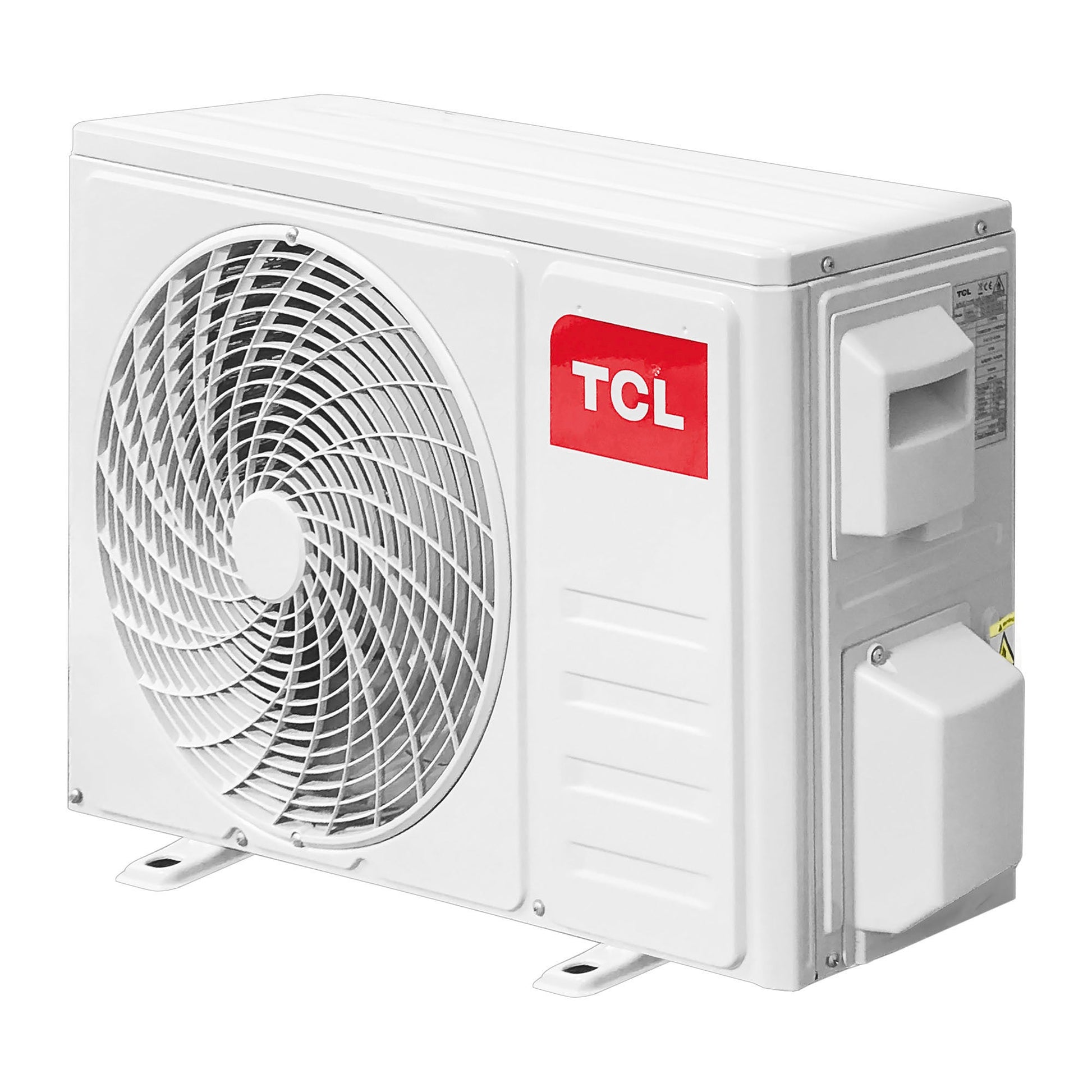

Outdoor Unit:

    • Product Dimension: 787 x 290 x 498mm (31” x 11.4” x 19.6”)
    • Packing Dimension: 818 x 325 x 520mm (32.2” x 12.8” x 20.5”)
    • Net Weight: 21kg
    • Gross Weight: 31kg



Packing Contents:

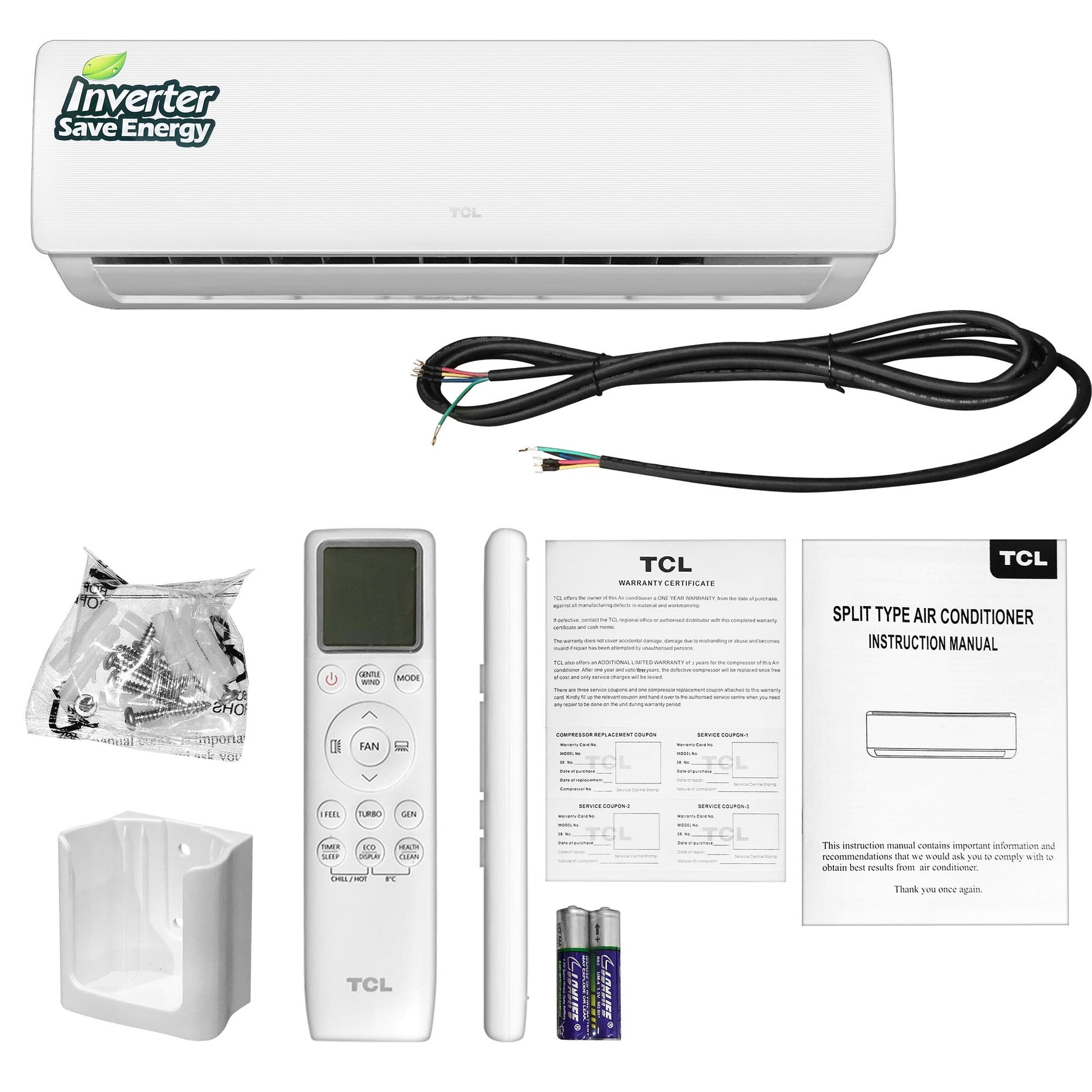

12k BTU Indoor Unit – x1

    • 12ft. Electric wire – x1

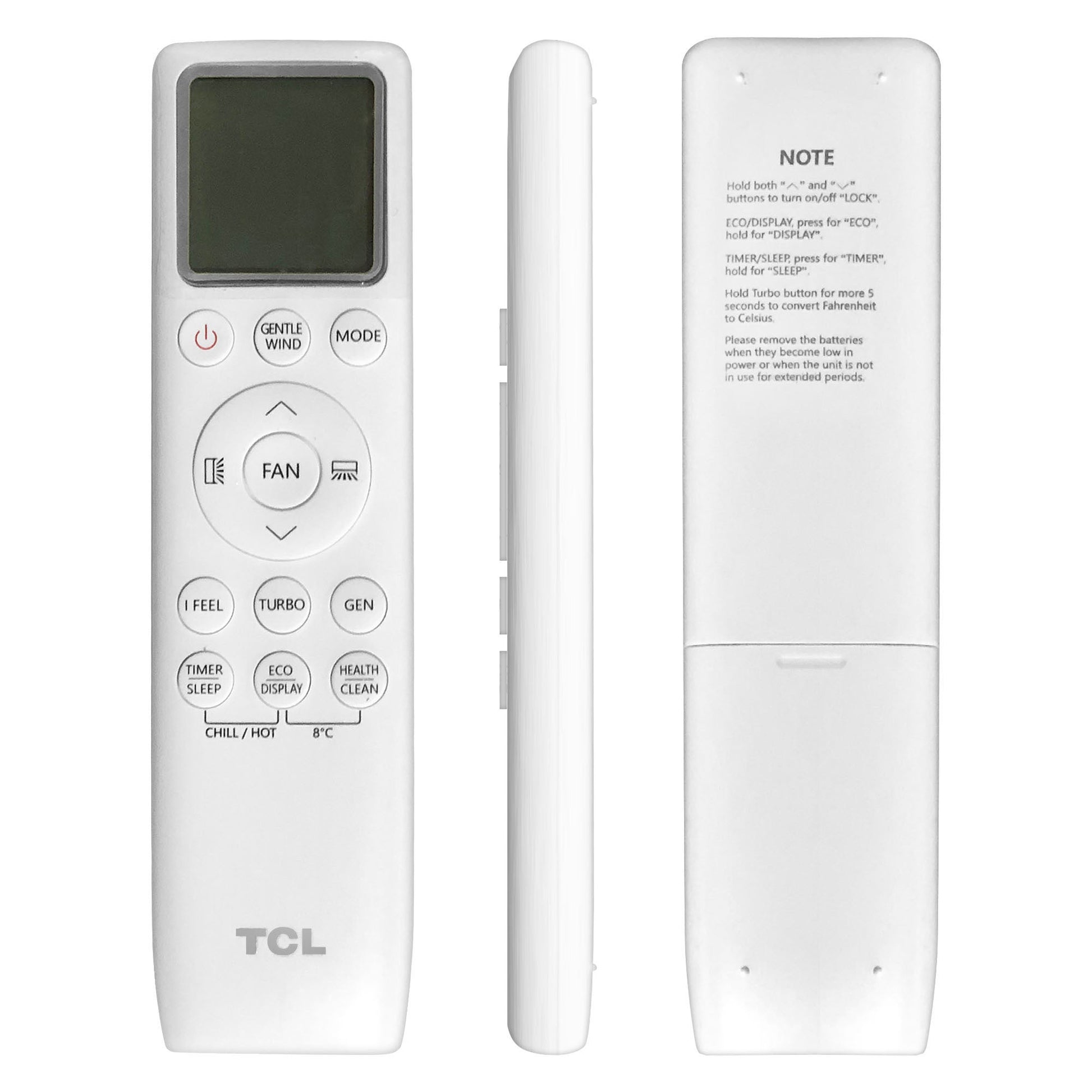

    • Remote Control – x1
    • AAA Battery – x2
    • Wall Mount Remote Holder – x1
    • Screws with Plugs – x8
    • Warranty Certificate – x1
    • User Manual – x1

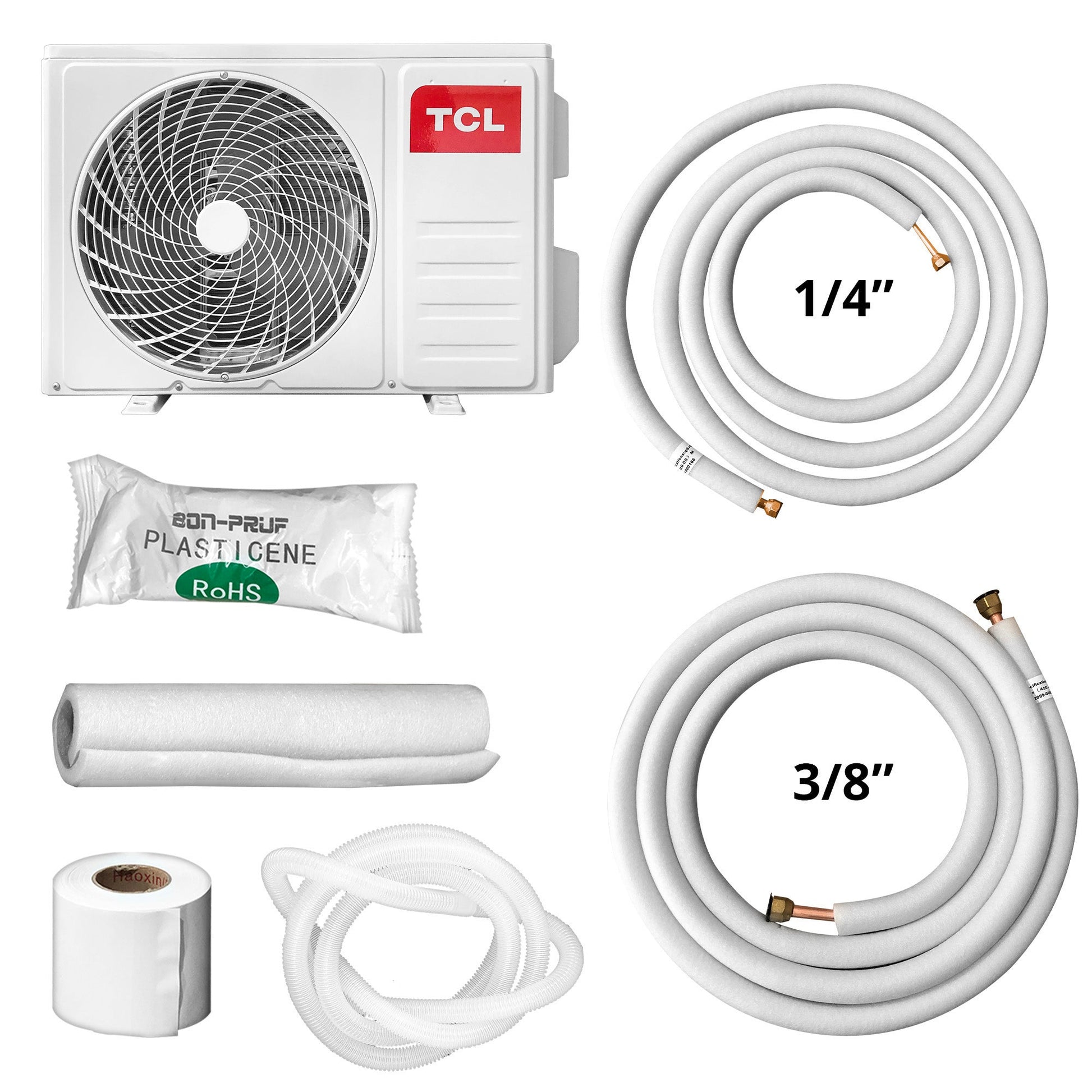

12k BTU Outdoor Unit – x1

    • 1/4" Copper Tube (13ft.) – x1
    • 3/8” Copper Tube (13ft.) – x1
    • Drainage Hose – x1
    • Wrapping Tape – x1
    • Insulation Sheath – x1
    • Plasticene RoHS – x1
